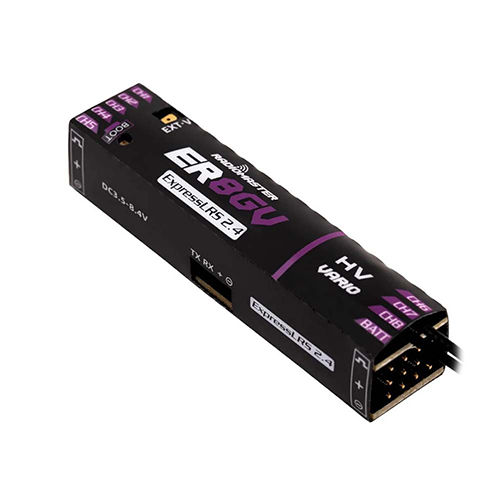

라디오마스터 ER8GV ELRS 2.4GHz PWM 수신기

RadioMaster ER8GV 2.4GHz ELRS PWM Receiver

- 라디오마스터 ER시리즈 8채널 PWM 수신기입니다.
- ExpressLRS 시스템을 기반으로 높은 신뢰성과 빠른 응답성을 자랑합니다.
- 고정밀 기압센서(Vario)가 내장되어 있습니다.
- 4핀 CRSF 입력 포트로 연결이 가능합니다.
- 3.5~8.4V 입력전압과 3.0~26V의 배터리 전압 센서를 지원합니다.
- ExpressLRS 3.3.0 펌웨어가 기본 설치되어있습니다.
- 슬림한 수신기가 필요한 글라이더에 추천드립니다.

본 제품은 ELRS 전용 수신기 입니다.

4in1모듈이나 CC2500모듈에 사용하실 수 없습니다.

구성

수신기 1개

메뉴얼

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system.

It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The ER8G & ER8GV receiver have been specially designed for glider pilots who require a compact and slim receiver.

It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to

automatically detect which voltage input to use (only one voltage input can be used at the any given time).

Both ER8G & ER8GV feature a dual-antenna with telemetry power up to 100mw and can be used with a 1S Lipo receiver battery.

The ER8G Receiver has the same functionality as the ER8GV only without a built in Vario for competitions

that prohibit the use of Vario or simply for users who do not need a vario on their receiver.




Features

Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, fast response speed and ultra-long range
Support 8 PWM Channels
Optimized ground up PCB design
Automatically voltage telemetry of external battery voltage or built-in receiver voltage
ER8GV receiver is built-in high-precision air pressure sensor (Vario)
Supports Wi-Fi updates and WEBUI configuration
Reserve 4pin CRSF input port
High quality 2.54 mm connector
Standard 20 cm High Sensitivity Antenna
For fixed-wing aircraft and gliders
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification (ER8GV)
Item: ER8GV 2.4GHz ELRS PWM Receiver
Power supply: DC 3.5 - 8.4V
Antenna type: 20cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.2 pre-installed
Output channel: 8CH PWM
Serial Output: CRSF / Sbus
Return power: maximum 100mw (LUA can be set)
Built-in high-precision air pressure sensor (Vario)
Battery voltage detection range: DC 4.0 - 35V
Weight: 12 grams
Dimensions: 60*13.5*13mm
Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER8-GV 2.4GHz DiversitYy+8xPWM RX+Vario RX

Package Includes
1 * E8GV 2.4GHz ELRS PWM Receiver
2 * Heat-shrink tube
1 * Voltage telemetry wire (Type-A)
1 * CRSF wire
1 * ELRS- RX- SBUS wire
1 * User Card
