라디오마스터 RP3 V2 ELRS 2.4GHz 나노 수신기

RadioMaster RP3 ExpressLRS 2.4GHz Nano Receiver

- 라디오마스터 ELRS 수신기입니다.

- 듀얼 안테나를 장비하여 수신율을 향상시켰습니다.


본 제품은 ELRS 전용 수신기 입니다.

4in1모듈이나 CC2500모듈에 사용하실 수 없습니다.



구성

RP3 수신기 1개

T안테나 2개

메뉴얼

The RadioMaster RP series of receivers are designed with size, ease of use and range in mind.

Utilizing ExpressLRS 2.4ghz Open-source firmware the RP series of nano receivers deliver features and range today's pilots have come to expect.

Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip the RP series offer Lora and FLRC 2.4ghz RF links offering incredible range and low latency.

With Wifi built-in FW updates can be done on your craft without the need to remove the receiver.

Binding can be done using a bind phrase meaning no more bind plugs or fiddly button presses while trying to plug in your battery.

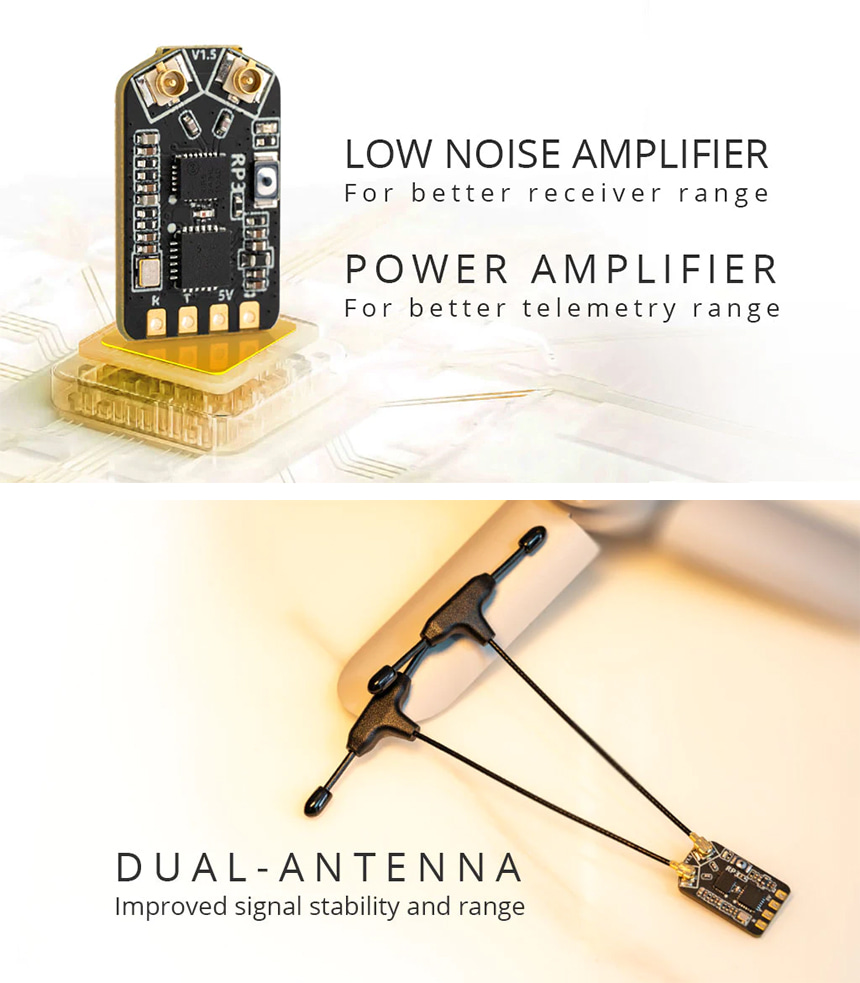

The RP3 receiver features a Skyworks SE2431L providing an LNA for improved receiver performance, a PA providing up to 100mW of telemetry performance and antenna switching for antenna diversity.


Bullet Point

• Optimized PCB design for better heat dissipation.
• LNA for better receiver range.
• PA for better telemetry range.
• Antenna Diversity for improved signal stability and range.



Specification
Item : RP3 Diversity Receiver
Type : ISM
MCU : ESP8285
RF Chip : SX1280IMLTRT
Telemetry RF power : max 100mw
Antenna : 65mm 2.4ghz T Antenna x 2
Frequency Range : 2400 MHz to 2480 MHz
Maximum receive refresh rate : 500Hz / F1000Hz
Minimum receiver refresh rate : 25Hz
Working voltage : 5v
Weight : 4.6g (Including two antenna)

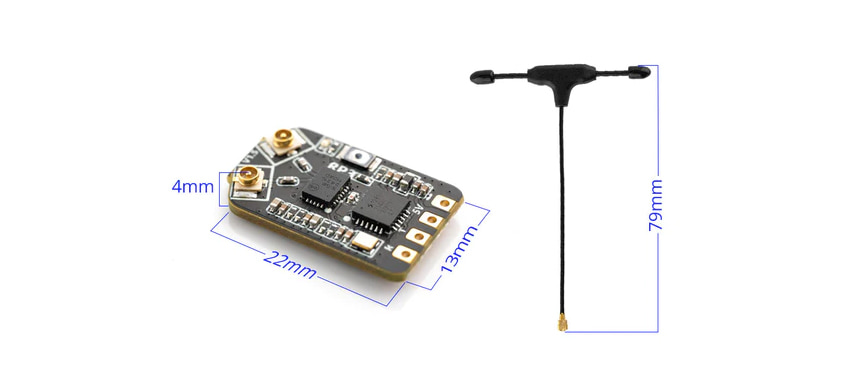

Dimension : 22mm*13mm*4mm
Firmware Version : ExpressLRS v3.0 pre-installed
FW Target : RadioMaster RP3 Diversity 2400 RX
Bus interface : CRSF

Package Includes
1 * RP3 ExpressLRS 2.4ghz Nano Receiver
2 * 65mm UFL 2.4Ghz T Antenna
1 * User Manual
