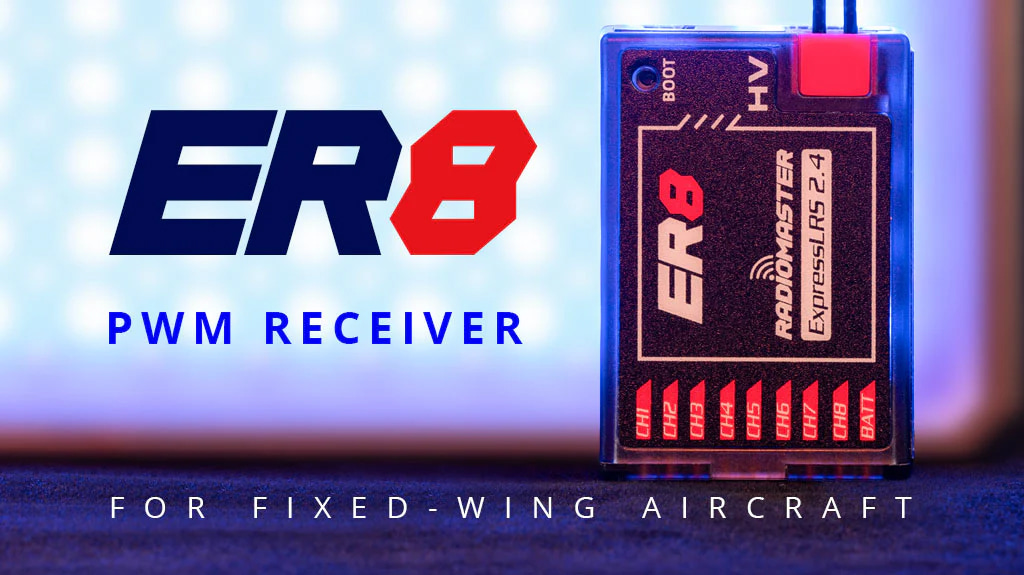

RadioMaster ER8 2.4GHz ELRS PWM Receiver

- ¶óµð¿À¸¶½ºÅÍ ER½Ã¸®Áî 8ä³Î PWM ¼ö½Å±âÀÔ´Ï´Ù.
- ExpressLRS ½Ã½ºÅÛÀ» ±â¹ÝÀ¸·Î ³ôÀº ½Å·Ú¼º°ú ºü¸¥ ÀÀ´ä¼ºÀ» ÀÚ¶ûÇÕ´Ï´Ù.
- 4ÇÉ CRSF ÀÔ·Â Æ÷Æ®·Î ¿¬°áÀÌ °¡´ÉÇÕ´Ï´Ù.
- HVÀԷ°ú DC4.0~35VÀÇ ¹èÅ͸® Àü¾Ð ¼¾¼­¸¦ Áö¿øÇÕ´Ï´Ù.
- ÀÏüÇü ¼ºÇü°øÁ¤À¸·Î ½©ÀÇ °­¼ºÀÌ ¶Ù¾î³³´Ï´Ù.
- ExpressLRS 3.3.0 Æß¿þ¾î°¡ ±âº» ¼³Ä¡µÇ¾îÀÖ½À´Ï´Ù.
- °íÁ¤ÀÍ Ç×°ø±â »ç¿ë¿¡ Ãßõµå¸³´Ï´Ù.

º» Á¦Ç°Àº ELRS Àü¿ë ¼ö½Å±â ÀÔ´Ï´Ù.

4in1¸ðµâÀ̳ª CC2500¸ðµâ¿¡ »ç¿ëÇÏ½Ç ¼ö ¾ø½À´Ï´Ù.

±¸¼º

¼ö½Å±â 1°³

¸Þ´º¾ó



The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system.

It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The Radiomaster ER8 receiver has been specially designed for fixed-wing users. It can drive up to 8 servos and has built-in receiver

voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface

is provided to facilitate later expansion of telemetry sensors. The ER8 features a dual-antenna with telemetry power up to 100mw.

The receiver shell adopts one-piece molding process with high structural strength.




Features
Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, fast response speed and ultra-long range
Support 8 PWM Channels
Optimized ground up PCB design
Automatically voltage telemetry of external battery voltage or built-in receiver voltage
Supports Wi-Fi updates and WEBUI configuration
High quality 2.54 mm connector
Standard 20 cm High Sensitivity Antenna
Reserve 4pin CRSF input port
Shell adopts one-piece molding process with high structural strength
For fixed-wing aircraft and more
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification
Item: ER8 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5 - 8.4V
Antenna type: 20cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 8CH PWM
Serial Output: CRSF / Sbus
Telemetry power: maximum 100mw (LUA Adjustable)
Battery voltage detection range: DC 4.0 - 35V
Bus interface: CRSF
Weight: 16.5 grams
Size: 43*30*15mm
Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER8 2.4GHz Diversity+8xPWM RX



Package Includes
1 * ER8 2.4GHz ELRS PWM Receiver
1 * Voltage telemetry wire (Type-B)
1 * CRSF wire
1 * ELRS- RX- SBUS wire
1 * User Card
