FlyFishRC FIFTY5 5인치 프리스타일 프레임 (DJI O4 PRO)

FlyFishRC FIFTY5 O4 Freestyle FPV Frame Kit

- 5인치 프리스타일 프레임입니다.

- 가장 정직한 움직임을 보이는 정엑스 형태입니다.(True X)

- T700 카본을 사용합니다.

- 알루미늄 카메라 마운트가 적용되었습니다.

- 고프로 마운트를 비롯한 각종 3D파츠가 포함되어 있습니다.

- 정통 프리스타일의 손맛을 느껴보실 분들에게 추천드립니다.

본 제품은 조립이 필요한 키트 상품입니다.

모터, ESC, VTX, 안테나 등 기자재는 미포함입니다.

구성품

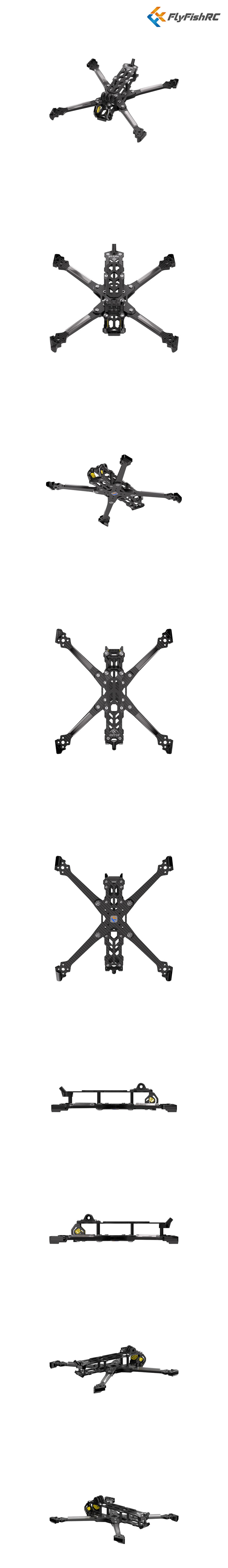

하단 사진 참조

Description

Introducing the FlyFishRC FIFTY5 - One of the best 5.5 Inch Freestyle Frames out there!

Made with highest precision, the FlyFishRC FIFTY5 boasts the FlyFishRC signature, high-strength CNC metal camera plates you all know so well already,

as well as top-notch T700 carbon fiber plates. The smooth surface and chamfered edges not only add to its durability but also make it a work of art.

And once again, as our signature thing, this frame comes complete with all the necessary accessories for your analog and HD builds.

Plus, we've included hardware with a bit of Loctite for added reliability, ensuring your setup stays secure.

At the heart of our design philosophy for the FIFTY5 frame lies the pursuit of lightweight simplicity and durability.

While our Volador VX5/6 is extremely durable and known as a flying tank, it's not synonymous with lightweight or ease of assembly.

So, we went on to plan our next frame and we wanted something ever so slightly unusual. First thing we thought of was the size, of course.

5 or 6 inch? The 6-inch quad, known for its speed and payload capacity, could feel a bit sluggish and lacked agility.

On the other hand, the nimble 5-inch frame was highly agile but somewhat limited in lifting capacity.

Well, why not create a 5.5-inch frame that combines the best of both worlds?

With the FIFTY5, you get the strength of a 6-inch platform and the agility of a 5-inch, striking the perfect balance. While it was originally

designed for 5.5-inch props (and we recommend you to use those), it offers you the flexibility to opt for standard 5-inch props without missing a beat.

FIFTY5 is definitely not the first frame to be able to run 5.5 inch props, however, it is a fantastic frame that's slightly larger than your regular 5,

remarkably easy to assemble, and really lightweight, tipping the scales at just 127g with essential TPU components. Say goodbye to the need for

lighter batteries when mounting a GoPro; the FIFTY5 handles it effortlessly. Want extended flight times? Simply use a larger battery,

and this frame is ready to rise to the occasion. And the best thing, IT RIPS nothing else!

The FlyFishRC FIFTY5 embodies the essence of innovation - where form meets function,

and the pursuit of the perfect balance results in a frame that's versatile, agile, and exceptionally easy to use.

Features

High-end T700 carbon fiber

Well thought through structure design

Just 127.7g with essential TPU parts

5mm thick stiff and strong arms

CNC aluminum camera plates offering superior protection

The silicone shock-absorbers for the O4 AU to eliminate jello

Compatible with both 19/20mm cameras

High-quality TPU parts

Ability to run both 5 and 5.5 inch props

Very good for smooth cinematic flying, fast speed chasing, and freestyle

Equipped with all accessories needed for analog and HD builds

12.9-grade strength hardware with Loctite threadlocker pre-applied

Specifications

Model : FIFTY5

Geometry : True-X

Wheelbase : 255mm

Arm thickness : 5mm

Top plate thickness : 2mm

Middle plate thickness : 2.5mm

Bottom plate thickness : 2.5mm

Propeller size : 5~5.5 inch

CNC plate thickness : 6mm

FPV cam spacing : 19mm/20mm

Weight : 127.7g(with TPU parts)

Total Dimensions : 180.3mm*180.3*33mm

Motor Mounting hole : 16mm*16mm(M3)

Stack mounting holes : 20mm*20mm/30.5mm*30.5mm(M3)

VTX mounting holes : 20mm*20mm/25.5mm*25.5mm(M2)

Includes : 1x Fifty 5 Frame Kit
