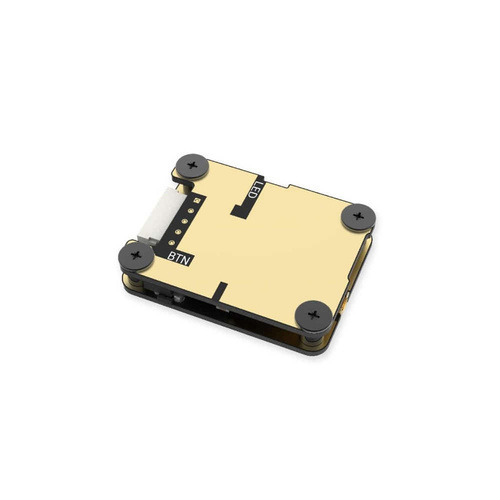

TBS Unify Pro32 DP 영상송신보드 (MMCX)

- TBS에서 새롭게 출시한 유니파이 프로32입니다.

**주의**

FC와 RX/TX선이 연결되어 있으면 UNLOCK이 되지 않습니다. UNLOCK 후 연결하시기 바랍니다.

구성

영상송신보드 1개

케이블 1개

메뉴얼

The TBS UNIFY PRO32 DP (MMCX), is a high-quality video transmitter (VTx) designed for use in fpv drones.

It comes with several features like improved robustness, decreased size and power consumption.

Enhanced performance and durability through advanced heat dissipation which requires no additional heatsink or fan.

Highlights

• World’s lightest 3 Watt video transmitter

• Frequency range: 4990 MHz - 6030 MHz

• OSD configuration using TBS Smart Audio 2.1

• (via Betaflight, TBS Crossfire / Tracer or Ardupilot)

• One button frequency and power setup

• LUA support for CRSF users

• MMCX connector

• 2-6S input

• Double noise filtering (>63dB SNR)

• Optimized heat dissipation, no heatsink required

• Optional matching circular polarized antenna available

Specifications

User Manual : Link

Included

1x TBS UNIFY PRO32 DP 5G8 HV Video transmitter

1x Silicone cable (ends pre-tinned)

1x MMCX to SMA pigtail

1x Heat transfer tape for easy FPV drone mounting

Important!

The Unify Pro32 DP is a high power video transmitter. Operating it with bad quality antennas, or without antennas on higher power levels will inevitably brick the

unit - faster than you would expect. It is therefore important to use the wideband function only with wideband antennas on the highest power settings!
