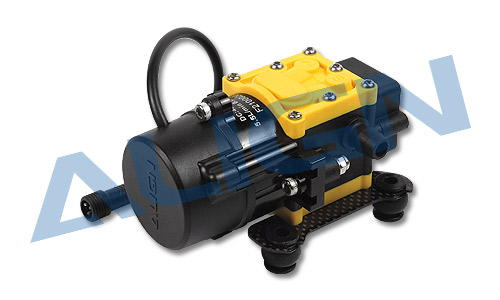

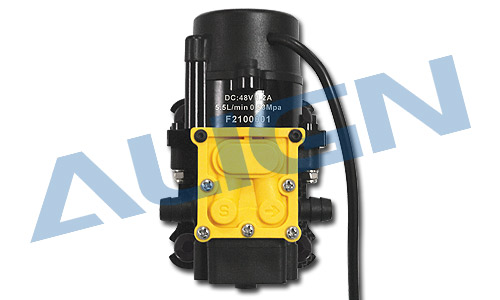

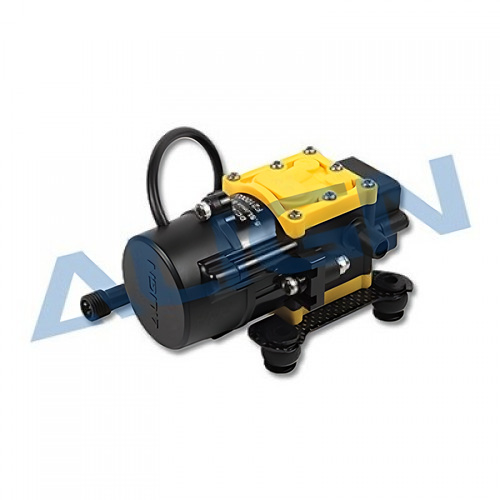

[ALIGN] M6T22 12S Pump (44.4V)

ALIGNRC M6T22 12S Pump

ALIGNRC사의 M6T22 방제드론용 12S(44.4V) 펌프.

변속기는 Builtin 방식으로 내장형이며, 입력 전압은 12S(44.4V) 입니다.

타 방제드론에도 12S 직결로 사용이 가능합니다.

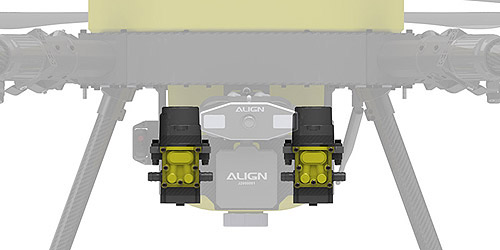

●Suitable for ALIGN M6T22.

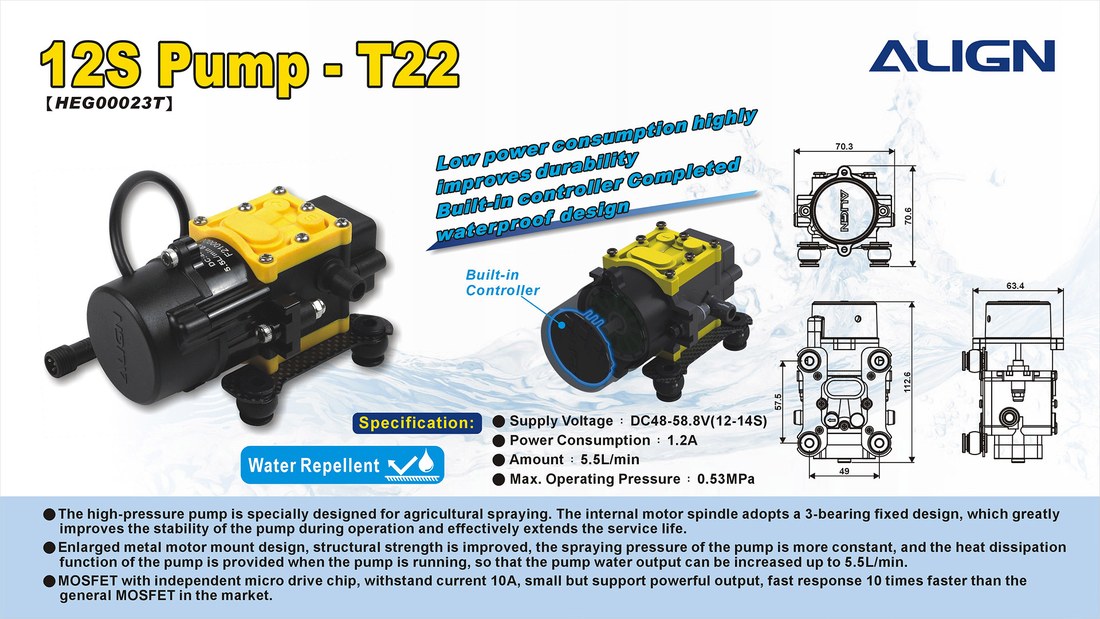

●The high-pressure pump is specially designed for agricultural spraying. The internal motor spindle adopts a 3-bearing fixed design, which greatly improves the stability of the pump during operation and effectively extends the service life.
●Enlarged metal motor mount design, structural strength is improved, the spraying pressure of the pump is more constant, and the heat dissipation function of the pump is provided when the pump is running, so that the pump water output can be increased up to 5.5L/min.
●MOSFET with independent micro drive chip, withstand current 10A, small but support powerful output, fast response 10 times faster than the general MOSFET in the market.

<제품 사양>

●Supply Voltage：DC48-58.8V(12-14S)
●Power Consumption：1.2A
●Max. Amount：5.5L/min
●Max. Operating Pressure：0.53MPa
