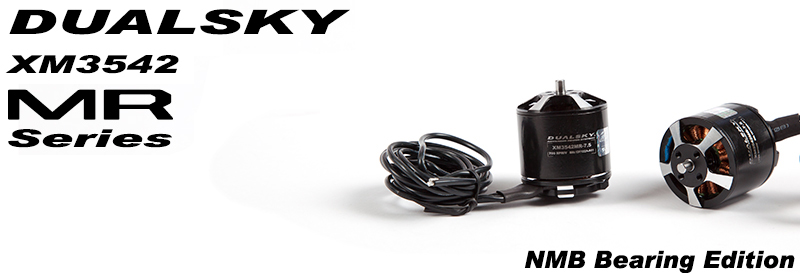

[DUALSKY] XM3542MR-11.5 BL Motor (14Pole/460KV)

DUALSKY XM3542MR-11.5 Brushless Motor for Multicopter(14pole/460KV)

공전의 히트를 기록한 XM5015MR Series의 후속 모델.

멀티콥터 전용으로 설계된 14pole 규격 Super Torque, High Efficiency Motor로서 Narrow Diameter 구조로 휠 베이스 기준 700~800급 Hexa Copter 또는 X8

용 기체에 적합합니다.

파워 시스템은 6Cell(22.2V)을 기준으로 14x4.5~15x5.5in까지 사용이 가능합니다.

DualSky사의 MR Seires 모터는 모두 일본산 MineBee 베어링만을 사용합니다.

Features
14 poles brushless motor, specially designed for High-end Multi-rotor/UAV systems
Based on proven TE-MR technology, all parts are newly designed
2nd generation stator design, still using the best 0.2mm material, improved motor efficiency
New winding method, lower IR, remarkable lower temperature after long running time

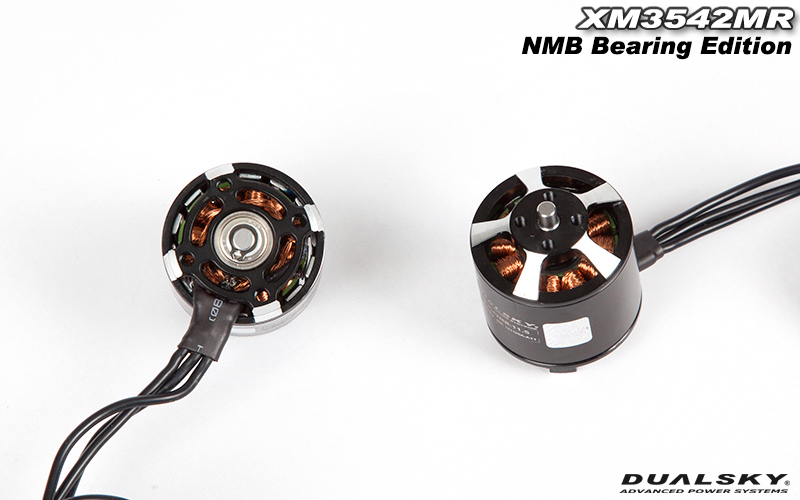

Detachable stator, easier to maintain
Imported over-sized ball bearing, low noise, ultra-long working life
Short shaft design, better to work with MR propellers
Optimized Dualsky "Star" appearance with precise secondary processing, artistic and high-precision
high-precision rotor, dynamically balanced on both size, lowest resonance in RC industry
New stator cover, protect power wires
Multiple mounting holes, compatible with DJI frames
Extra long silicone power wire, easier for installation
Laser-etching model data and serial number

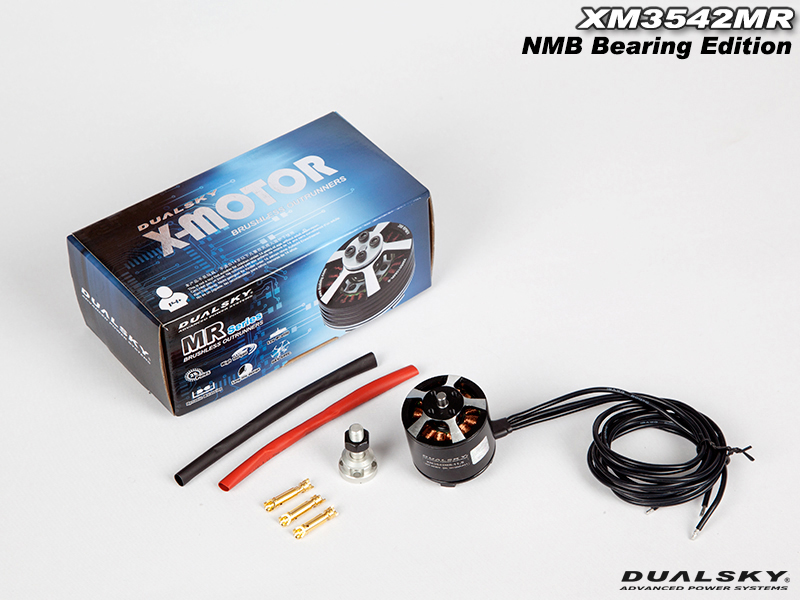

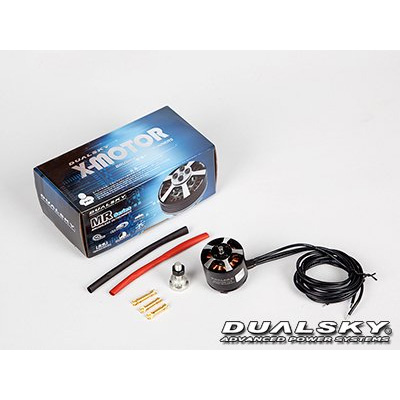

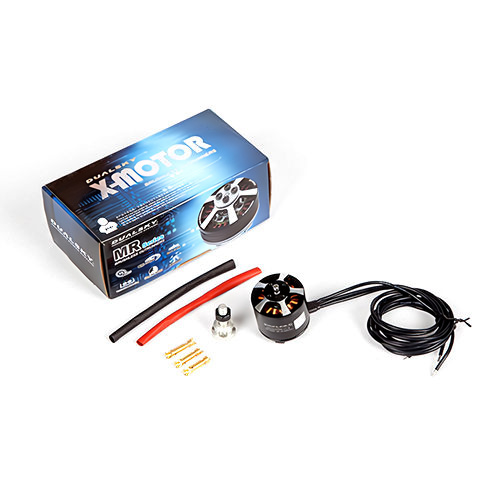

Comes with full propeller adapters, compatible with both airplane and multi-rotor propellers
There are two types of motors for each motor size to fit the different flight requirements: high power type and long running time type

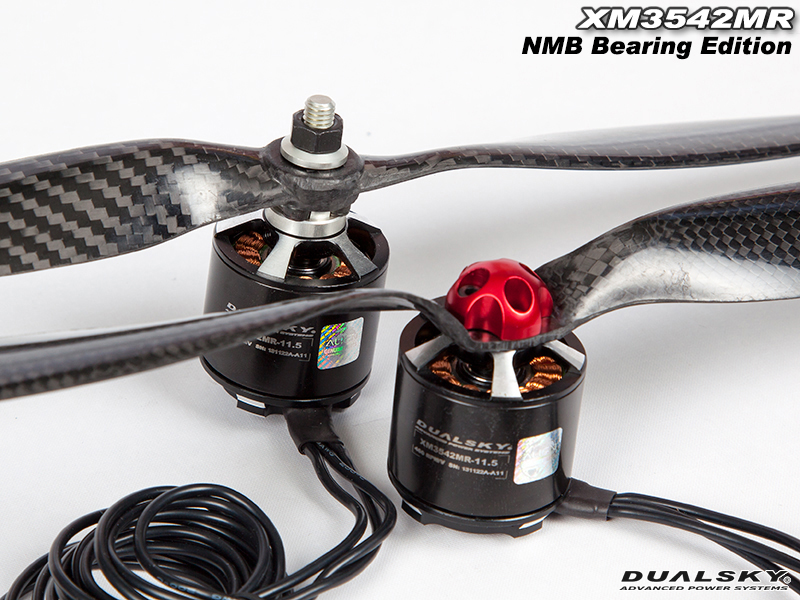

Recommended to work with Dualsky MRP series propellers to achieve best working efficiency
Recommended to work with Dualsky MR series ESC (400Hz control frequency)
Fully tested to pass quality inspection in Dualsky Shanghai Factory


Specification
RPM/V (KV): 460KV
Weight w/o wires(g): 120g
Diameter(mm): 35mm
Length(mm): 38mm
Diameter of Shaft(mm): 4.0Φ/5.0Φ
Mounting holes pitch(mm): 25/25mm
Slots,Poles: 12Slot/14Pole
Idle Current(Io) @10V(A): 0.4A
Resistance(Ri)(mOhm): 115
Cruising power(W)[8 mins]: 274W
Bursts current(A)[15s]: 22A
Peak power(W)[15s]: 499W
Recommended ESC: PolyTronics XM40HV 40A ESC
Setup 1 (No. of Cell, Prop.): 6S,14x4.5~15x5.5inch
Weight of quad-copter(kg): 3.0Kg
Weight of hex-copter(kg): 4.6Kg
