[BETAFPV] F722 35A AIO V2 보드

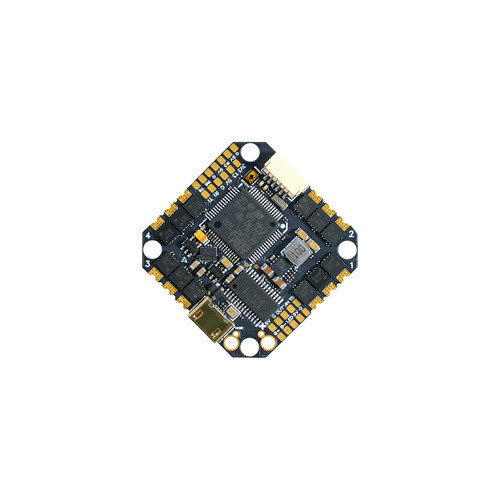

BETAFPV F722 35A AIO V2 Brushless Flight Controller

- BetaFPV사의 F722 35A AIO V2 보드입니다.

- 자이로는 ICM42688을 사용합니다.

- ESC는 BLHeli_32 펌웨어를 사용합니다.

구성

하단 사진 참조

F722 35A AIO Brushless Flight Controller is very reliable to meet your advanced FPV needs. Comes with an F722 chip this board provides a great

performance capability and high processing speed, which brings pilots a stable and smooth flight. Featuring a 6-pin plug&play port, it can directly

connect HD Digital VTX with NO soldering work. With the support of up to 6S input voltage, this FC pushes FPV racer to the max.

Bullet Points

• Built-in STM32F722RET6 CPU, F722 FC is more powerful than F4. It features a fast processing speed and stable performance, providing reliable and smooth flight for 4"-5" drones.

• F722 AIO 35A FC has specially added a 6-pin connector for HD Digital VTX, just plug & play, less solder work needed, perfect for the pilots who enjoy the HD Digital VTX system.

• 6 full UARTs are available on this board. With plenty of UARTS, Pilots could have more options for external parts like VTX, GPS, Receiver, and other components.

• It can handle 35A continuous current (40A burst), supports the 2-6S lipo battery, and gives the drone a more robust flight performance.

• With the 6S battery and this F722 35A AIO FC, the drone will break through the limit of the power of the toothpick drone, exploring more possibilities in 4-5'' drones.

• The new BLHeli_32 ESC version is built-in a 16MB flash memory chip dedicated to Blackbox logging, which is an extremely powerful tool for tuning and troubleshooting an FPV drone.

It has a faster processing speed and up to 128k PWM frequency, providing a more stable and smoother flight for pilots.

Specification of FC

Item: F722 35A AIO Brushless Flight Controller

Weight: 7.06g(BLHeli_S) / 9.00g (BLHeli_32)

CPU: STM32F722RET6

Six-Axis: ICM42688

Mounting hole size: 26mm*26mm

Firmware version: betaflight_4.3.0_STM32F7X2

OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)

Support programmable LED like WS2812 etc

Built-in current sensor

Blackbox: 16MB (V2 with BLHeli_32 ESC included)

Specification of ESC

Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection)

Input voltage: 2S-6S Lipo

Continuous current: 35A

Peak current: 40A

ESC firmware: BLUEJAY G_H_30_48_v0.16 (BLHeli_S) / BETAFPV_35A_V2_BLHeli_32_Multi_32_9 (BLHeli_32)

Indicators: Power indicator (Red) / FC indicator (Blue)

Capacitance: CS|5*10*13mm|470μF|35V

Connector: 80mm 14AWG silicone cable with XT60

Recommended motors: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series



BLHeli_32 ESC Firmware

The F722 35A AIO FC has two boards with different ESC versions for choice.

The V2 board uses AT32F421G8U7 MCU, a 32-bit  ESC chip, with BLHeli_32 ESC firmware. This firmware supports

up to 128k PWM frequency, featuring faster processing speed and unlocking more functions for the flight.

The F722 FC ICM42688 version has the same solder pad and layout as BMI270 except for the gyro chip.

Besides, you can also find the difference in Betaflight settings.

Diagram for F722 35A AIO FC

The below picture is the top front of the F722 35A AIO Brushless FC. (Both V1 and V2 boards have the same solder pad and connector ports.)

The below picture is the bottom front of the F722 35A AIO Brushless FC. (Both V1 and V2 boards have the same solder pad and connector ports.)



There are 2 LEDs on the bottom of the board to indicate the status, including the FC LED (Blue) and FC Power LED (Red).

The LED status for V1 and V2 boards are the same.


How to Connect the External RX&VTX

To connect the external RX&VTX, please refer to the below diagram.

F722 35A AIO V1 and V2 boards have the same soldering pad and connecting ports.



Recommended Parts

BNF: highly recommend for X-Knight 5", Pavo360, Pavo30

Battery: 4-6S Battery, BETAFPV 850mAh 4SBattery 450mAh 4S Battery

VTX: BETAFPV A03 400mW 5.8G VTX

Motor: 1805 1550KV brushless motor, 2004 Brushless Motors, 1606 Brushless Motor, 1506 Brushless Motor, 2204 Brushless Motors, 2306 Brushless Motors

Compatible Propellers: Gemfan 5125 3-Blade props, BETAFPV 4-5 inch props

Frame: 3-3.5 inch frame, 4-5 inch Frame, highly recommend for TWIG ET5 5'' Toothpick Frame, X-knight 5'' frame,

          X-Knight 360 Carbon Fiber Frame Kit, and Pavo360 Frame Kit, Pavo30 Pro Frame Kit

Package

1 * F722 35A AIO Brushless Flight Controller (V1 or V2)

1 * Cable Pigtail (XT60)

1 * Capacitance

1 * 6-Pin Connector for HD Digital VTX

4 * M2x10mm Screws

8 * M2 Nuts
