[TR] MARK4-10 레이싱 드론 슈퍼 콤보 (6S / 10인치)

[Tarot] MARK4-10 Racing Drone Super Combo(6S/10in)

타롯사의 최신 10in 프롭을 사용하는 대형 레이싱 드론 Mark4-10 드론 Super Combo Package!

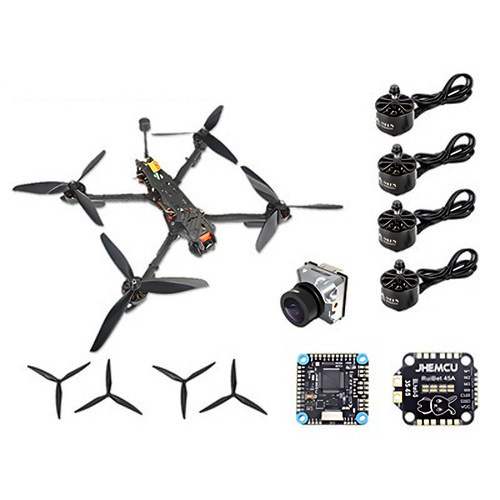

Heavy Lift 사양으로서 카본 본체 및 T3115-900KV 모터, 10x5.0 프롭, JHEMCU FC/60A 4in1 ESC System, 그리고 Runcam사의 Phoenix2 액션캠이 모두 포함된 패키지 사양입니다.

배터리는 6,000~6,300mAh 6S1P 팩을 사용하시면 됩니다.

<Reference Video>

<Product Description>

·Tarot's new 10-inch FPV racing drone;
·Made of high quality 3K twill carbon fiber board, strong and durable;
·Exquisite appearance design, is the preferred rack for FPV racing drone;

<Product Features>

1.H-frame structure design, shorten the length of the arm, reduce the weight and increase the strength of the arm;
2.Large center plate mounting space, arm mounting option to the bottom, more installation space can be obtained;
3.Front-end FPV lens mounting position size adjustment standard 19mm * 19mm;
4.The middle of the Flight Controller&ESC mounting position and the rear of the Transmission mounting position reserved for 30.5mm * 30.5mm and 20mm * 20mm mounting holes, providing more options;
5.Standard with vibration damping silicone, which can reduce the pressure of vibration to the flight control to a greater extent, so as to achieve smooth flight.

<Product Parameters>

Frame type: H type
Maximum supported props: 10inch
Wheelbase：427mm
Dimension: 331mm*269mm
Weight: 238g
Bottom plate thickness: 3mm
Top plate thickness: 3mm
Arm thickness: 7.5mm
Camera mounting pitch: 19mm
Installation hole distance of the transmission: compatible with 30.5mm/20mm
Flight control installation hole distance: compatible with 30.5mm/20mm
Flight control: RF/KISS/F3/F4/F7

<Shipping List>

Frame top plate (2mm) ×1
Frame bottom plate(3mm) ×1
Arm(7.5mm) ×4
Arm fixing plate(2mm) ×2
Frame carbon plate kit ×1
Mounting screw kit ×9
Mounting accessories kit ×1

1. MK4-10 전용 T3115-900KV 모터 4개 및 High Speed 10x5.0 프롭 4Set(CW/CCW 각 2조) 기본 포함!

2. JHEMCU GF30F405-ICM Flight Controller 기본 포함!

3. JHEMCU RUIBET 60/65A 3~6S DHOT600 BLHeli_S 4in1 통합 변속기 세트 기본 포함!

4. 액션캠의 명가!

   RUNCAM사의 Phoenix 2 카메라 기본 포함!
