TBS LUCID H7 플라이트 컨트롤러

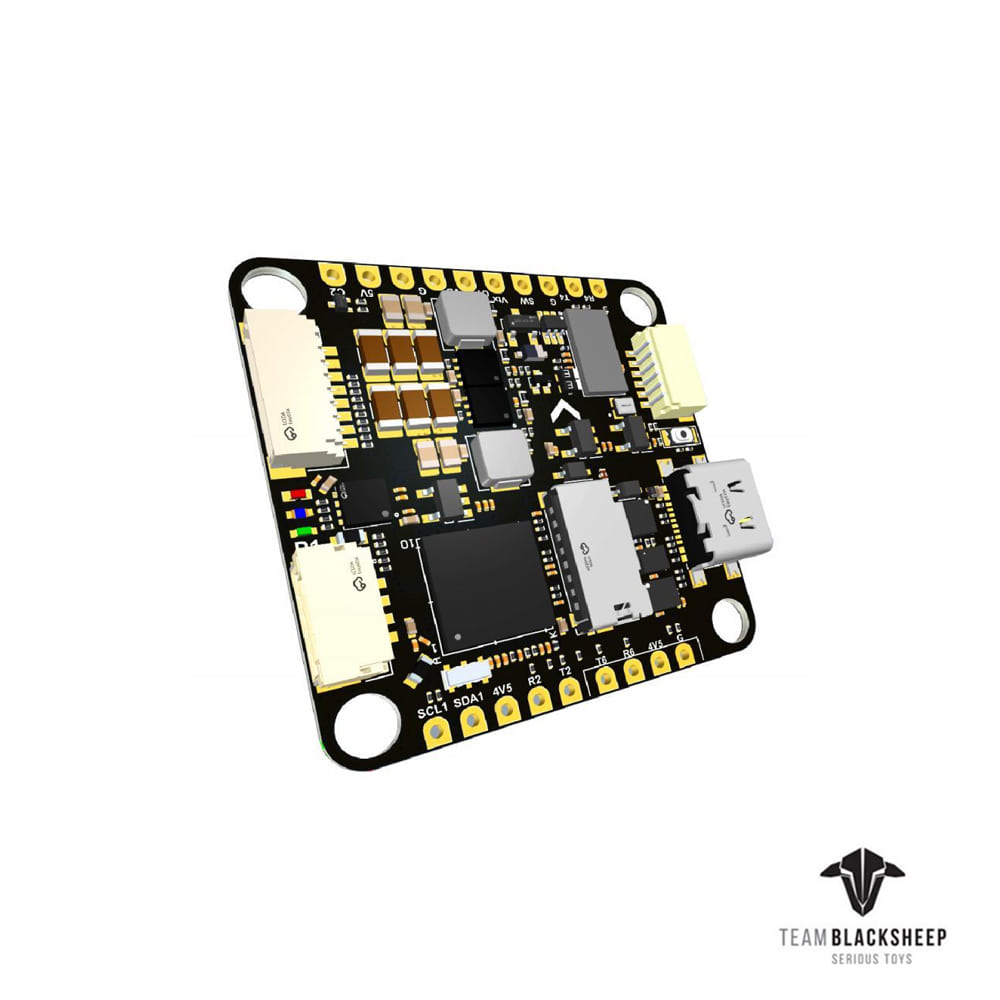

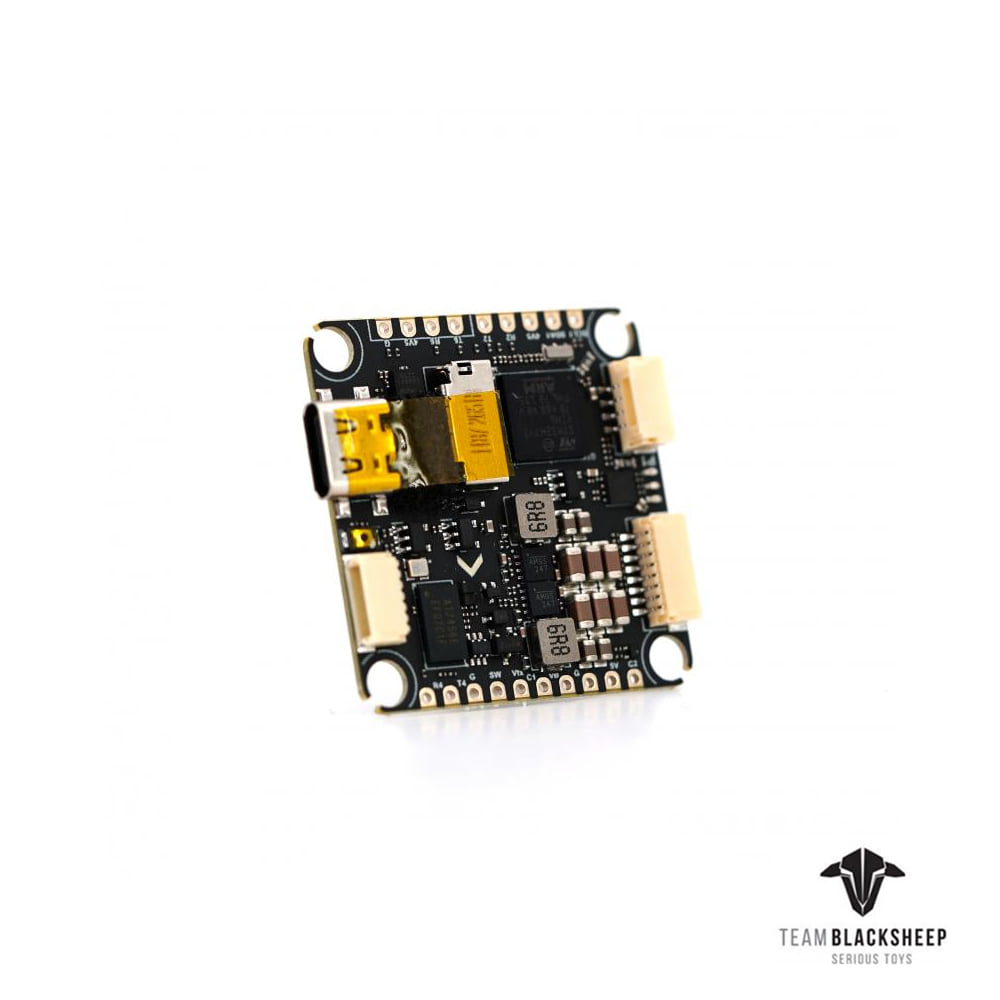

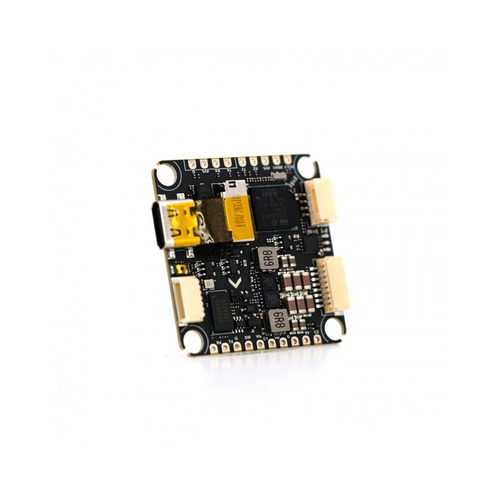

TBS Lucid H7 Flight Controller

- TBS사의 3030사이즈 FC입니다.

- ICM42688 자이로를 사용합니다.

- Betaflight, ArduPilot,  INAV펌웨어를 지원합니다.

- 듀얼카메라 입력이 가능합니다.

- 6~36V (2S~8S) 입력전압을 지원합니다.

구성

하단 사진 참조

The TBS Lucid H7 FC is a powerhouse built for those who crave peak performance and adaptability in their drones.

Whether you're ripping through freestyle moves or fine-tuning a racing rig, the TBS Lucid H7 delivers with its

robust 480MHz processor and seamless support for Betaflight, ArduPilot, and INAV. Featuring dual camera inputs,

DJI FPV OSD compatibility, and a compact design, it fits effortlessly into any setup.

Designed for both seasoned pros and enthusiastic newcomers, this flight controller makes pushing the limits of your drone easier than ever.

Specification

MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash.

Gyro: ICM42688 x 2 (duo gyro)

OSD Chip: AT7456E (SPI2)

Barometer: Infineon DPS310 connected via I2C2.

PWM Outputs: 13 channels, including a dedicated “LED” pad.

Blackbox (BB): Data logging equipped with a MicroSD card slot (SDIO)

UARTs: 7 total (1, 2, 3, 4, 6, 7, 8) signal inversion ready

I2C Buses: 2 available.

CAN Bus: 1 available.

Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2).

LED Indicators: 3 LEDs (Blue, Green for FC Status, Red for 3.3V Power).

Breakout: SPI3 breakout available.

USB Interface: Type-C connector (USB 2.0 standard).

JST Connectors:

1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4)

1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground).

Dual Camera Input: Switchable inputs for two cameras.

Power Control: Switch for filtered 5V/Vbat output power.

DJI FPV OSD: Compatible via any spare UART port.

Power Specifications

Input Voltage: 6 - 36V (2 to 8S LiPo).

BEC: 5V 2A continuous (3A max) & 9V 2A continuous (3A max)

LDO 3.3V: Supports up to 200mA.

Voltage Support: ADC Vbat2 pad supports up to 36V (1K:10K voltage divider).

Power Consumption: 200mA @ 5V with Betaflight, 150mA @ 5V with ArduPilot.

FC Firmware Targets

ArduPilot: tba

BetaFlight: TBS_LUCID_H7

INAV: TBS LUCID_H7

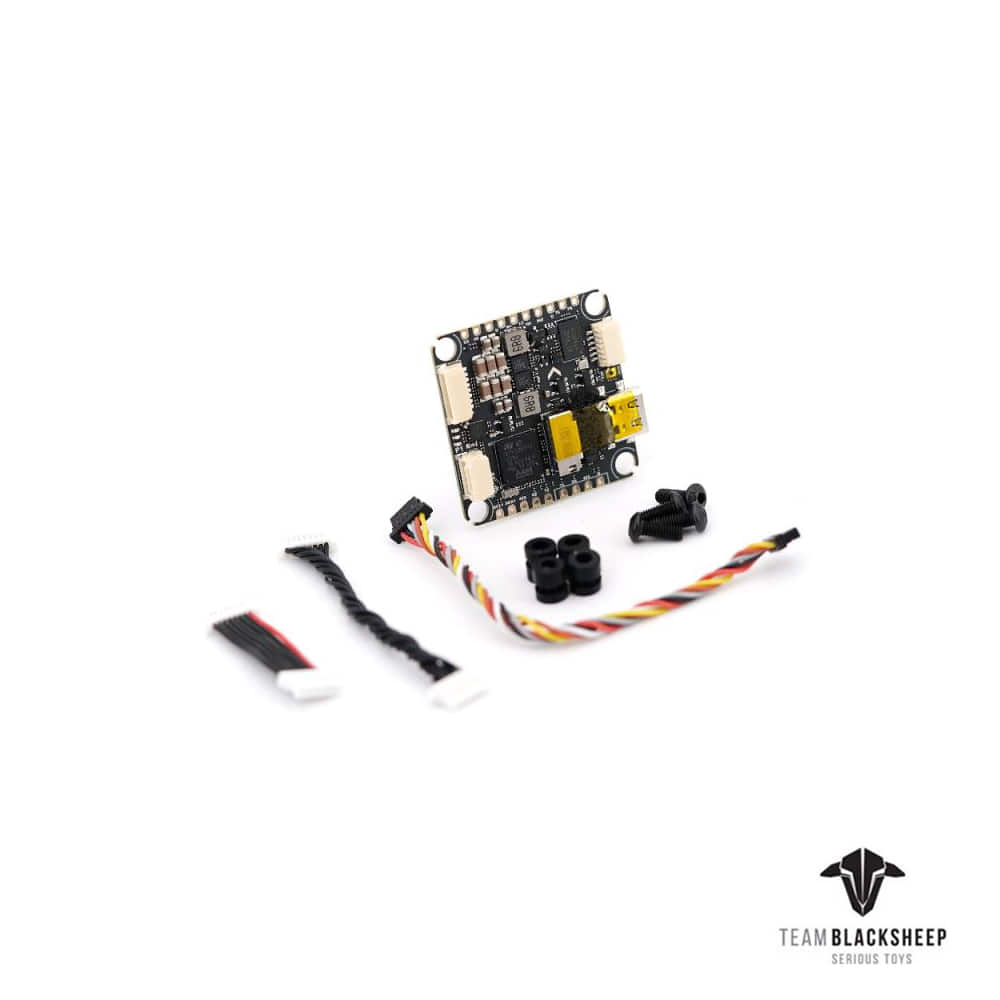

Includes

TBS Lucid H7 FC

FC-to-ESC cable (plug & play)

DJI O3 cable (plug & play)

4pcs M3 rubber dampers

4pcs M3x8 screws
