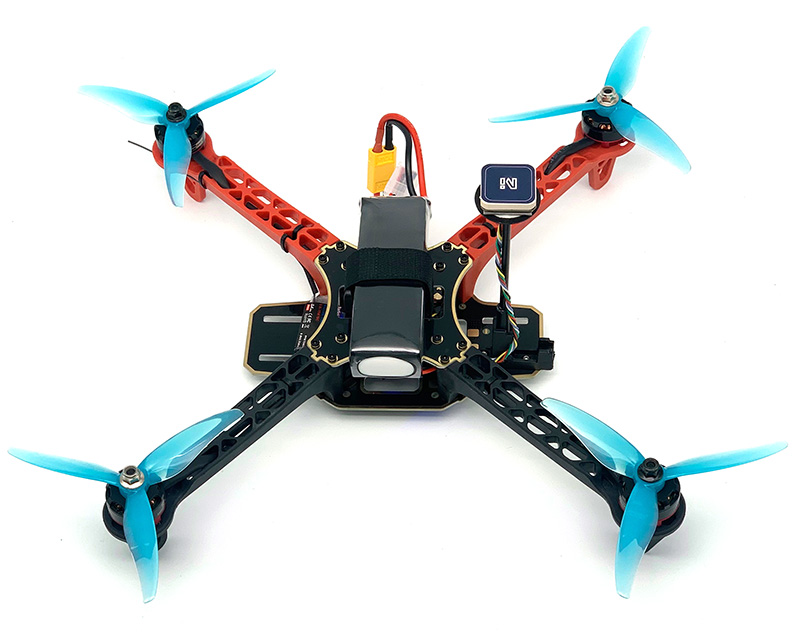

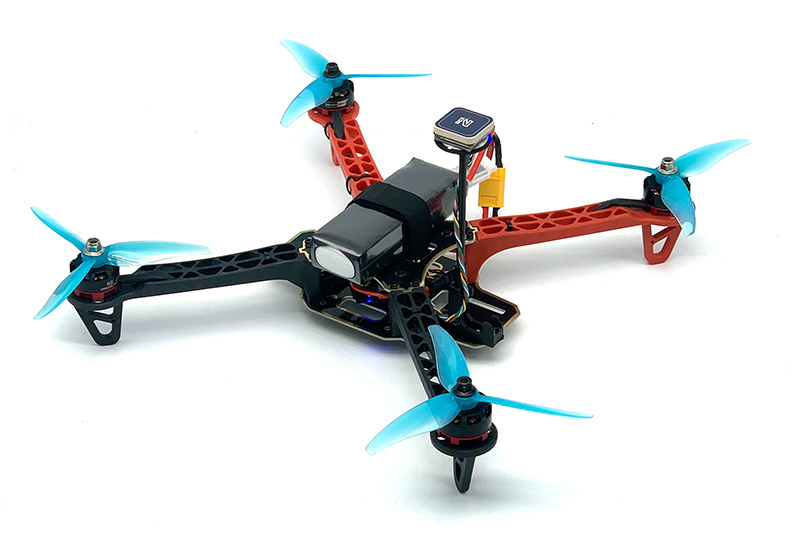

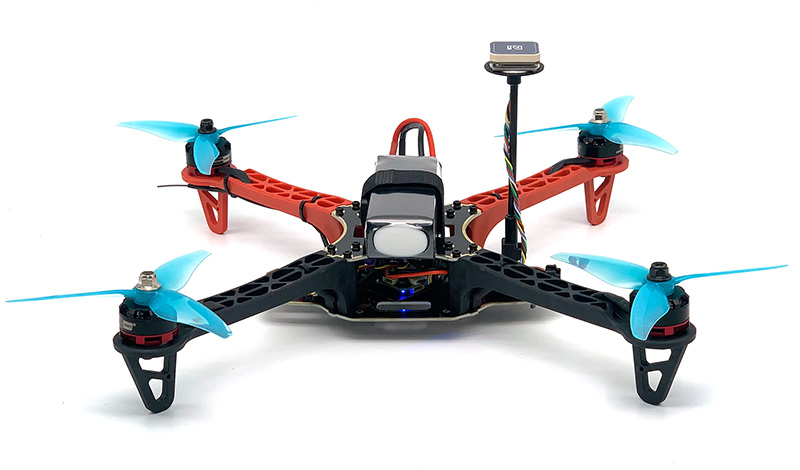

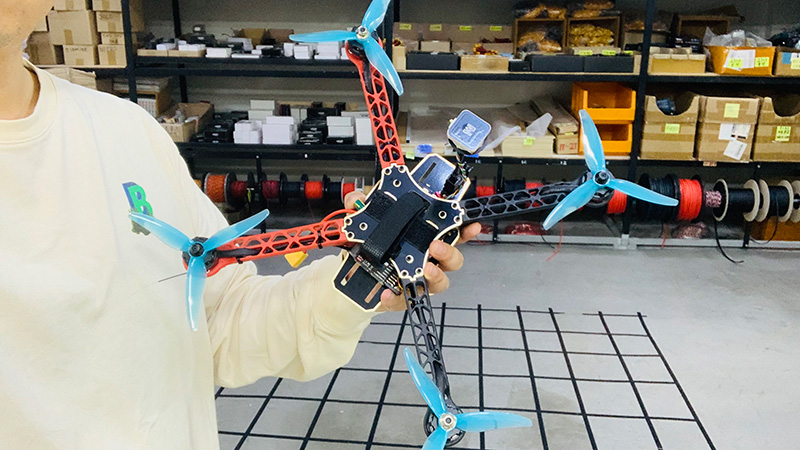

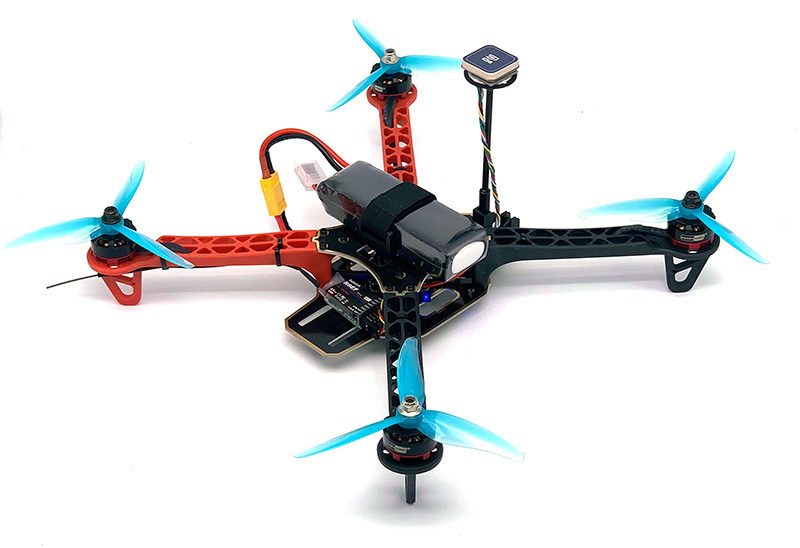

F330 교육/연구용 쉬운 조립 소형 드론 + 픽스호크 + GPS + 포켓 ELRS 디지털 양방향 조종기 포함 풀셋

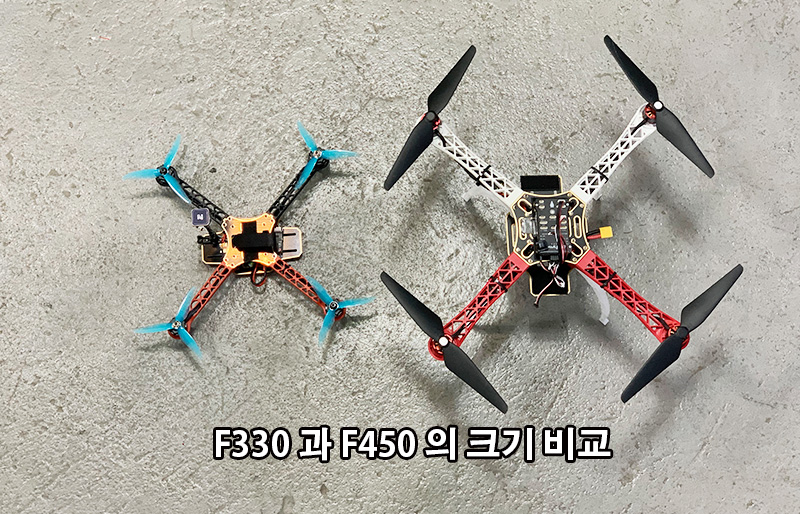

Whirlwind F330 KIT

본 제품은 순수 Kit 구성으로서 조종기, 수신기, 모터, 변속기, 배터리, 충전기 및 자이로, 프롭 등등이 필요합니다.

발송되는 제품의 Arm 색상은 Black/White 입니다.

<제 원>

- Diameter : 330mm Wheel Base

- KIT Weight : 143g

- Battery Recommanded : 3S(11.1V) 1,300mAh ~ 2,200mAh(별매)

- Recommanded Motor :

   [Tarot] MT2206 BL Motor for 280~330 FPV Racing(CW/1900KV/7in Prop/V2) - HP Edition!

   [Tarot] MT2208II BL Motor for 280~330 FPV Racing(CW/2100KV/7in Prop/V2) - HP Edition!

   [Tarot] T2212/1200KV 3D Motor Power System(w/8 x 5in CW/CCW Prop) - 3D 매뉴버 사양

- Prop' :  7~8in Prop

- Brushless ESC : 12~20A ESC

- Flight Time : 4~12 Min'

- Flight Weight : 600g~1200g(Max)


<제품 이미지>

MicoAir H743 V2 + 45A ESC AIO 올인원 픽스호크 비행 컨트롤러

Ardupilot/PX4/INAV/Betaflight 를 지원하는 듀얼 IMU 및 기압계 센서가 내장된 고성능 H743 비행 컨트롤러 입니다.

펌웨어 / 핀아웃 링크 : https://micoair.com/flightcontroller_micoair743v2_aio_45a/

Flight Controller

• MCU: STM32H743VIH6, 480MHz, 2MB Flash
• IMU: BMI088+BMI270
• Baro: SPL06
• TF Card Slot
• 7x UART
• 9x PWM
• 1x I2C
• 1x SWD
• 2x ADC (VBAT, Current)
• 1x LED Strip
• 1x Beeper
• USB Type-C
• BEC 5V 2A output (for controller, receiver, GPS, optical flow or other devices)
• BEC 12V 2A output (for DJI O3/O4/O4 pro)

ESC

• Firmware: AM32_F4A_4IN1_F421_2.17
• PWM Freq: 48KHz
• ESC Protocol: PWM/DShot300/DShot600 (support BDShot)
• Continuous Current: 45A * 4
• Voltage Support: 2-6S (5.6V-27V)

Tutorial: How to Configure and Update AM32 ESC on MicoAir743-AIO



Voltage&Current Monitoring

	Ardupilot	PX4	Betaflight	INAV
Voltage Factor	21.12	21.12	211	211
Current Factor	14.14	14.14	707	707



UART Mapping (Ardupilot)

• SERIAL0 -> USB
• SERIAL1 -> UART1 (MAVLink2, DMA-enabled)
• SERIAL2 -> UART2 (DisplayPort, DMA-enabled)
• SERIAL3 -> UART3 (GPS, DMA-enabled)
• SERIAL4 -> UART4 (MAVLink2, DMA-enabled)
• SERIAL5 -> UART5 (DMA-enabled)
• SERIAL6 -> UART6 (RCIN, DMA–enabled)
• SERIAL8 -> UART8 (DMA–enabled)

UART Mapping (PX4)

• ttyACM0->USB
• ttyS0->TELEM1 -> UART1
• ttyS1->GPS2 -> UART2
• ttyS2->GPS1 -> UART3
• ttyS3->TELEM2 -> UART4
• ttyS4->TELEM3-> UART5
• ttyS5->RC -> UART6
• ttyS7->TELEM4/SERIAL4 -> UART8

RC Input (Ardupilot)

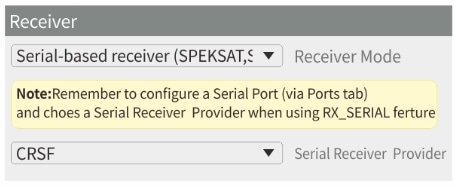

The default RC input is configured on the UART6. The SBUS pin is inverted and connected to RX6. Non SBUS, single wire serial inputs can be directly tied to RX6 if SBUS pin is left unconnected. RC could be applied instead at a different UART port such as UART2, UART4 or UART8, and set the protocol to receive RC data: SERIALn_PROTOCOL=23 and change SERIAL6 _Protocol to something other than 23.



OSD Support  (Ardupilot)

The MicoAir743v2-AIO supports OSD using OSD_TYPE 5 (MSP_DISPLAYPORT).



VTX Support

The SH1.0-6P connector supports a DJI Air Unit / HD VTX connection. Protocol defaults to DisplayPort. Pin 1 of the connector is 12v so be careful not to connect this to a peripheral requiring 5v.



PWM Output

The MicoAir743v2-AIO supports up to 9 PWM outputs.

Channels 1-8 support DShot/bi-directional DShot.

(currently PX4&INAV not support BDShot function)

PWM output share grouped and every group must use the same output protocol:

1,2,3,4 are group 1

5, 6 are group 2

7,8, 11are group 3

Note: PWM11 is the “LED” pin. If this is configured for serial LED use then PWM 7 and 8 can only be used as serial LED also.



Compass

The MicoAir743v2-AIO doesn’t have a built-in compass sensor, but you can attach an external compass using I2C on the SDA and SCL connector.



Physical

• Mounting: 25.5 x 25.5mm, Φ3mm
• Dimensions: 36 x 36 x 8 mm
• Weight: 10g

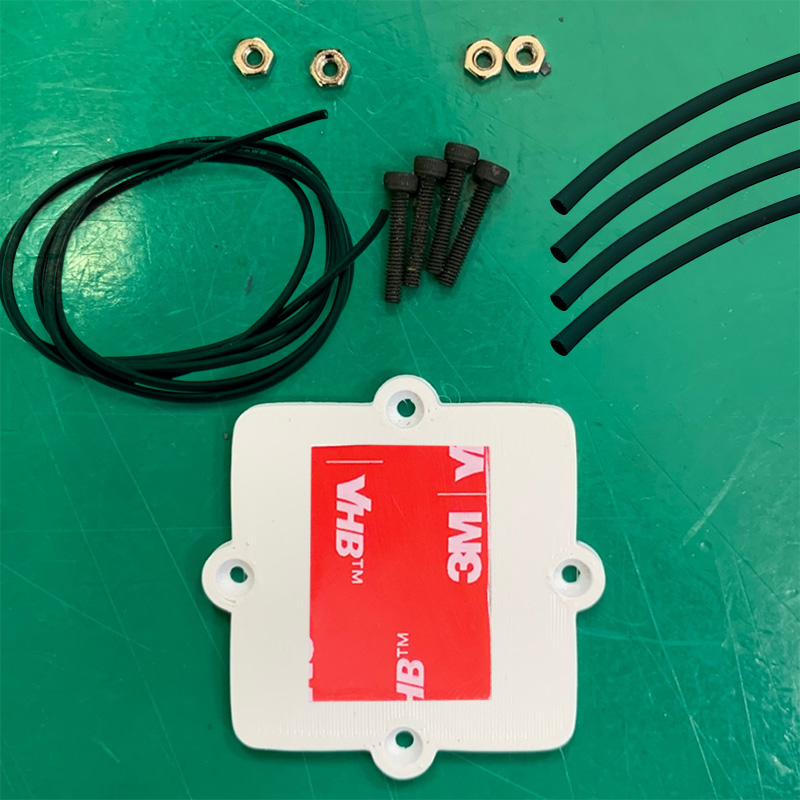

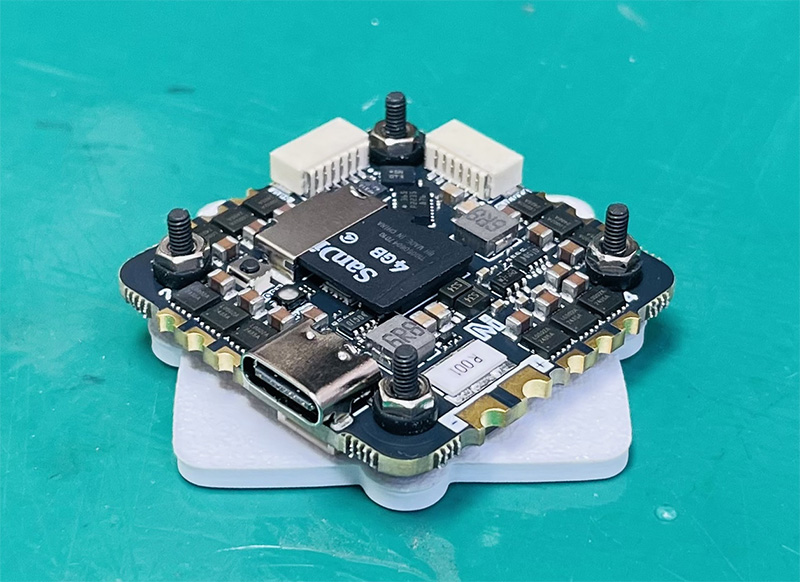

MicoAir AIO FC 를 F330 등의 프레임에 고정하기 위한 마운트 입니다.

3D 프린터로 출력하여 제작되므로, 출력 시기에 따라 색상이 변경될 수 있습니다.

부착을 위한 양면 테이프 및 모터 선 연장을 위한 여분의 20AWG 실리콘 케이블 60CM 가 포함되어 있습니다.

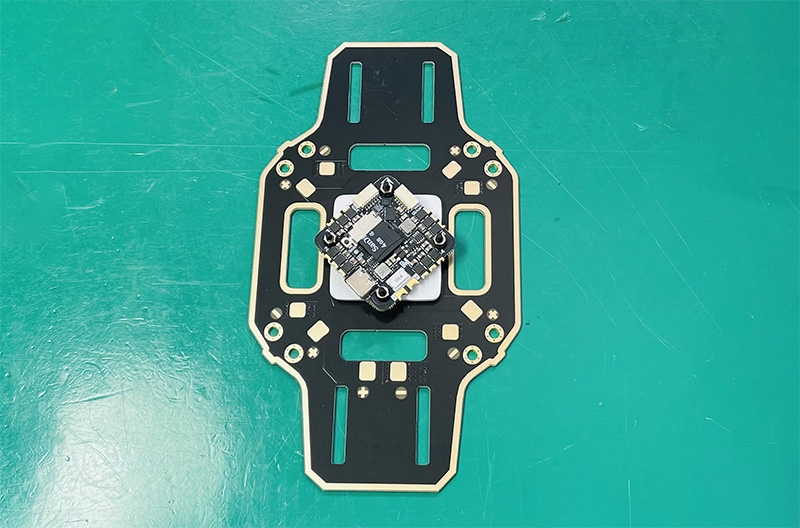

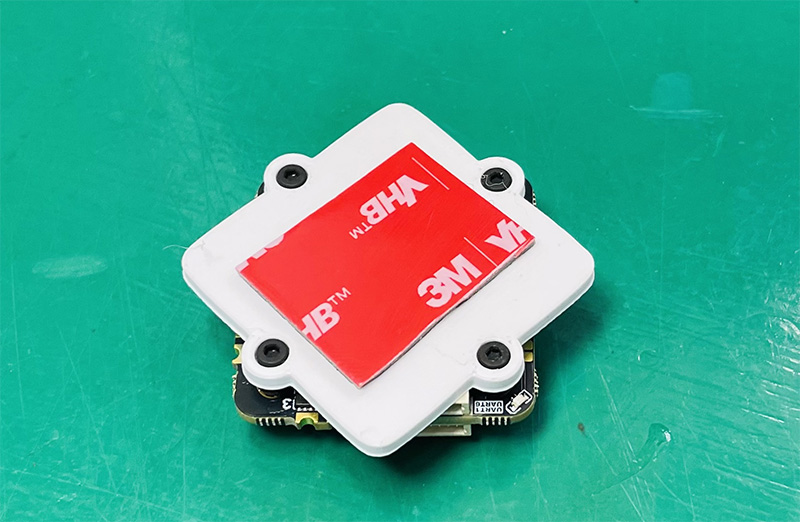

FC 에는 방진 댐퍼(고무)를 미리 삽입한 후, 동봉된 볼트/너트를 이용하여 FC 를 마운트에 고정합니다.

마운트 뒷면에 양면 테이프를 부착합니다.

사진과 같이 프레임에 양면 테이프로 부착합니다.

FC 에는 화살표로 방향이 표시되어 있으므로, 알맞은 방향으로 부착합니다.

F330 셋트의 경우 프레임에 있는 납땜 패드는 사용하지 않으며, 납땜이 필요한 모든 전선은 FC 자체에 납땜합니다.

모터 선이 짧을 경우, 동봉된 여분의 20AWG 실리콘 케이블을 이용하시기 바랍니다.

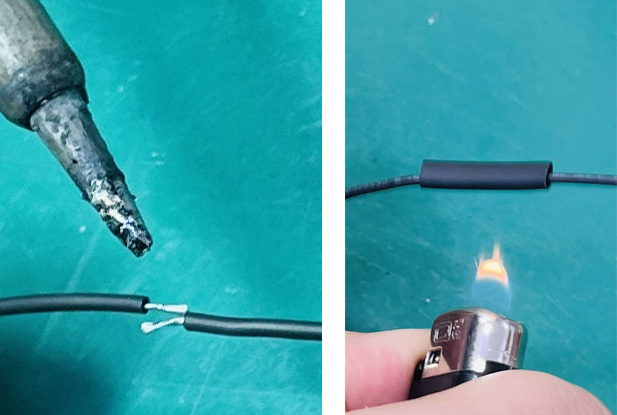

동봉된 전선을 적당한 길이로 자른 후, 모터 선을 연장(납땜) 합니다.

납땜한 부분은 쇼트가 발생하지 않도록 동봉된 수축튜브를 이용하여 감싸 줍니다.

[Tarot] T-Type GPS Mount Set(High Grade)

타롯사의 T-Type GPS 마운트 세트.

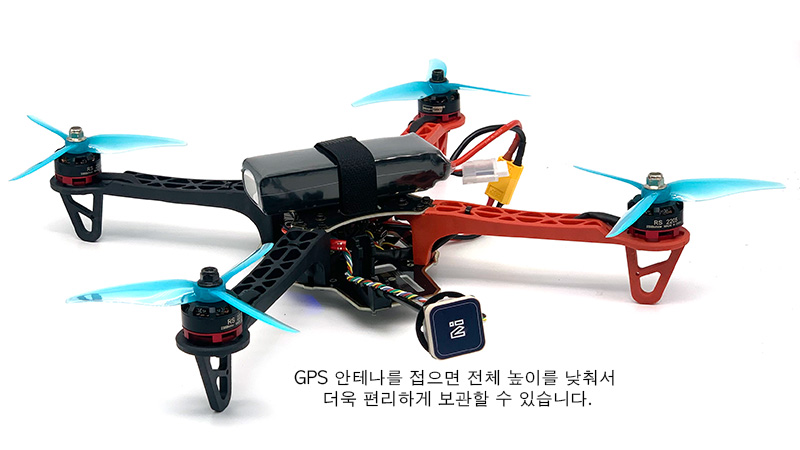

차량 수납 또는 이동시 GPS Puck이 부딪히지 않도록 Mount를 접을 수 있는 구조로 되어 있습니다.

양쪽 끝단이 InterLock 방식이라 접었을 경우에도 단단하게 고정이 됩니다.

중량 : 8g

<제품 이미지>

[RTS] RS2205-2300 Race Spec' Motor(2300KV/CW)

현존 최고의 출력 특성을 자랑하는 RTS사의 레이싱 드론용 RS2205 컴피티션 파워 시스템!

일반적인 저가형 P-Type 네오디움이 아닌 N-Type(N52) 네오디움 자석을 채용, 아울러 일본산 MineBee(NMB) 베어링이 기본사양으로 탑재, 또한 하드한 추락에도 휘지 않고 버틸 수 있도록 고주파 열처리된 Hollow(중공) 방식의 탄소강 샤프트를 채용!

BM5045 프롭과 조합시 최대 모터당 1.1Kg이라는 극악 파워(?)를 뿜어내는 괴물 모터입니다.

정피치 모터(CW) 모터 1개 구성입니다.

※ 주의 : 모터에는 CCW 로 표기되어 있으나, 실제로 프롭 어댑터가 은색인 정방향(CW) 제품입니다.

혼동을 방지하기 위해 알씨뱅크에서는 정방향(CW)으로 표기하고 있습니다.

RTS RS2205 Race Spec Motors ;

Introducing the Emax Race Spec family of high performance brushless motors for multirotor FPV racing. Redesigned and engineered to perform better than most in it’s class, every motor is precision crafted within tight tolerances. Paired with performance driven props from any leading manufacturer will result in unreal thrust.

Cooling:
The unique fins machined into the bell draw up cool air from the motor base and through the coils as the motor spools up. The faster it spins, the more air it ventilates. Cooling fins significantly reduce heat soak by at least 30%. This “cool” feature allows the RS2205 to not only have a longer lasting motor, but also harness the power of N52 magnets.

N52 Magnets:
Uses the highest grade magnets. Better acceleration, stopping power, and sustained RPMs during high kv.

Bearings:
Genuine Japanese NMB Bearings provide long lasting, smooth performance.

Thrust:
Produces over +1,000g of thrust using 4S and GF5045BN.

Key Features:
- 1K+ Thrust with 4s battery and recommend propeller combo
- Cooling Series Bell Design reduces motor temperature by at least 30%
- Highest Grade N52 Neodymium magnets
- Genuine Japanese NMB Bearings
- Each Motor is Dynamically Balanced in the factory.
- 15mm Extended Prop Shaft allows virtually any prop with 5mm hole.

Windings made from copper of high purity



- Model: RS2205

- KV: 2300kv

- Weight: Approx. 30g with wires

- Wire AWG: 20AWG

- Stator Diameter: 22mm

- Stator Height: 5mm

- Shaft Diameter: 3mm

- Configuration: 12N14P

- Motor Diameter: 27.9mm

- Motor Height: 31.7mm

- Prop Adapter Shaft Thread: M5

- Input voltage: 3S-4S (12.6 - 16.8v)

- KV2300 With HQ5045 BN Max.thrust:1024g


[RTS] RS2205-2300 Race Spec' Motor(2300KV/CCW)

현존 최고의 출력 특성을 자랑하는 RTS사의 레이싱 드론용 RS2205 컴피티션 파워 시스템!

일반적인 저가형 P-Type 네오디움이 아닌 N-Type(N52) 네오디움 자석을 채용, 아울러 일본산 MineBee(NMB) 베어링이 기본사양으로 탑재, 또한 하드한 추락에도 휘지 않고 버틸 수 있도록 고주파 열처리된 Hollow(중공) 방식의 탄소강 샤프트를 채용!

BM5045 프롭과 조합시 최대 모터당 1.1Kg이라는 극악 파워(?)를 뿜어내는 괴물 모터입니다.

역피치 모터(CCW) 모터 1개 구성입니다.

※ 주의 : 모터에는 CW 로 표기되어 있으나, 실제로 프롭 어댑터가 검정색인 역방향(CCW) 제품입니다.

혼동을 방지하기 위해 알씨뱅크에서는 역방향(CCW)으로 표기하고 있습니다.

RTS RS2205 Race Spec Motors ;

Introducing the Emax Race Spec family of high performance brushless motors for multirotor FPV racing. Redesigned and engineered to perform better than most in it’s class, every motor is precision crafted within tight tolerances. Paired with performance driven props from any leading manufacturer will result in unreal thrust.

Cooling:
The unique fins machined into the bell draw up cool air from the motor base and through the coils as the motor spools up. The faster it spins, the more air it ventilates. Cooling fins significantly reduce heat soak by at least 30%. This “cool” feature allows the RS2205 to not only have a longer lasting motor, but also harness the power of N52 magnets.

N52 Magnets:
Uses the highest grade magnets. Better acceleration, stopping power, and sustained RPMs during high kv.

Bearings:
Genuine Japanese NMB Bearings provide long lasting, smooth performance.

Thrust:
Produces over +1,000g of thrust using 4S and GF5045BN.

Key Features:
- 1K+ Thrust with 4s battery and recommend propeller combo
- Cooling Series Bell Design reduces motor temperature by at least 30%
- Highest Grade N52 Neodymium magnets
- Genuine Japanese NMB Bearings
- Each Motor is Dynamically Balanced in the factory.
- 15mm Extended Prop Shaft allows virtually any prop with 5mm hole.

Windings made from copper of high purity



- Model: RS2205

- KV: 2300kv

- Weight: Approx. 30g with wires

- Wire AWG: 20AWG

- Stator Diameter: 22mm

- Stator Height: 5mm

- Shaft Diameter: 3mm

- Configuration: 12N14P

- Motor Diameter: 27.9mm

- Motor Height: 31.7mm

- Prop Adapter Shaft Thread: M5

- Input voltage: 3S-4S (12.6 - 16.8v)

- KV2300 With HQ5045 BN Max.thrust:1024g


Poly-Tronics 7th Generation 2,200mAh (11.1V, 3S1P, 35C+/JST-XT) - Slim Line

7세대 리튬 폴리머 전지 Poly-Tronics UFW Series!

새롭게 진화한 Poly-Tronics Evolution-7 Series는 독자적인 Hybrid RS Construction Technology^TM를 이용, 고품질 Substrate 및 엄격한 ISO9001 QC를 통해 엄선된 Cell들 중 IR(Internal Resistance)값이 동일한 Cell 만을 선별, Matched Pack 사양으로 제조가 됩니다.

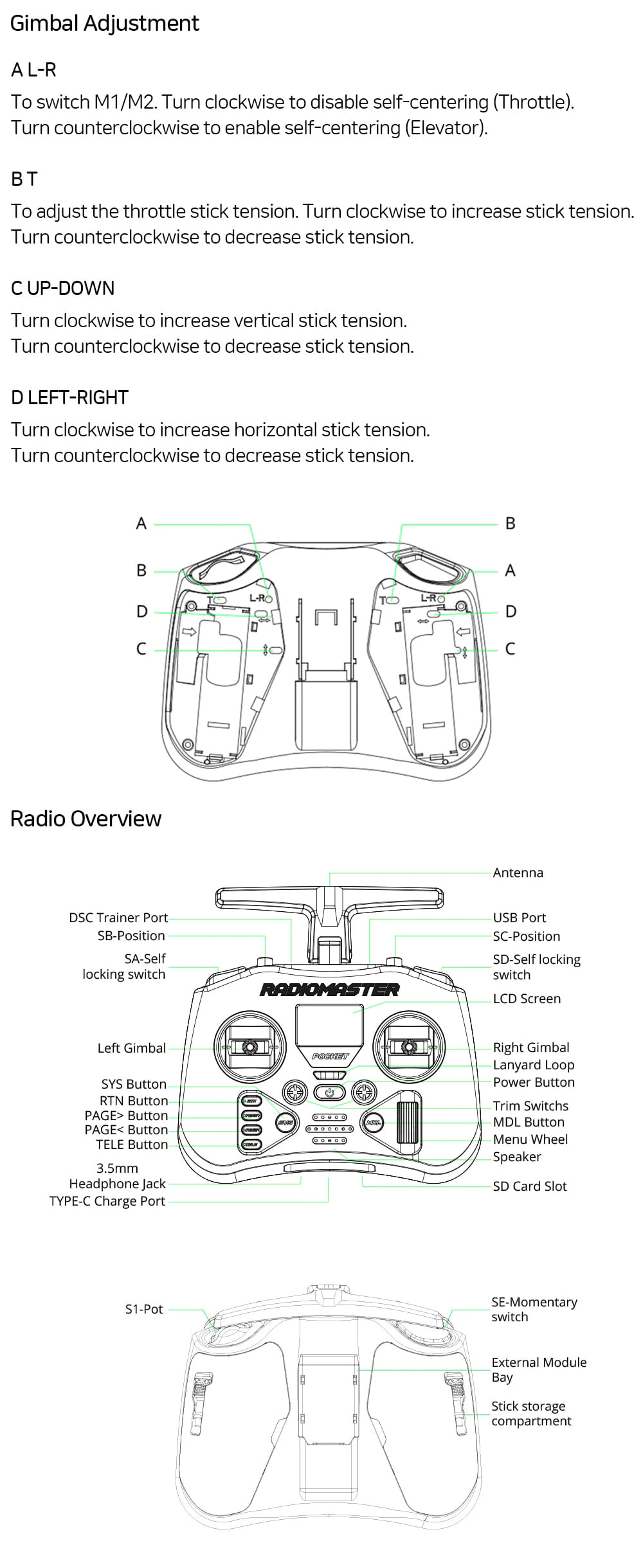

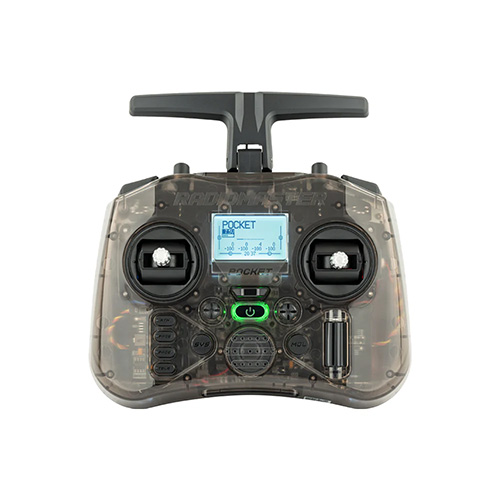

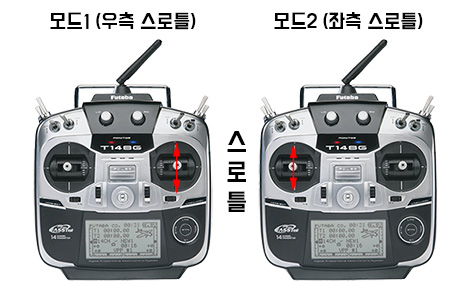

RadioMaster Pocket Crush Radio Controller (ELRS)

- ELRS는 R/C 업계를 휩쓸고 있는 혁신적인 오픈 소스 프로토콜입니다.

- 1,000Hz 재생률이 가능한 내부 ELRS 모듈을 사용합니다.

- 휴대성을 극대화한 미니 사이즈입니다.

- 안테나가 폴딩되고 스틱도 탈착됩니다.

- 뒷면이 인체공학적으로 디자인되어 그립감이 아주 좋습니다.

- 정밀 홀 센서 미니 짐벌을 기본 제공합니다.

- EdgeTX 펌웨어가 적용되어 있습니다.

- USB포트를 통해 조종기 자체적으로 배터리를 충전할 수 있습니다.

- TBS 크로스파이어 모듈과 완벽 호환됩니다.

- 가성비 최고의 조종기입니다.

**본 제품은 ELRS 모듈입니다**

**SD카드가 기본으로 제공됩니다**

**USB-C QC 3.0 충전을 지원합니다(5V기준 2A)**

<구성>

조종기 1개

조종기 파우치 1개

USB-C타입 케이블 1개

국내 정식 전파인증된 제품입니다.

전파인증 번호 : R-R-ssr-POCKETELRS

인증스티커는 뒷 모듈커버 안쪽에 있습니다.

- 1년 무상 워런티 제공(추락, 수장, 역전압, 펌업, 그외 파손에 의한경우 제외)

- 1년 경과 시 유상수리 진행

18650 리튬 이온 배터리 2000mAh 보호회로적용 (65mm 표준사이즈)
5,800

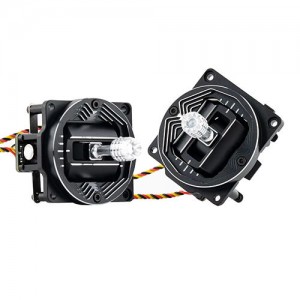

라디오마스터 Pocket용 AG01 NANO CNC Hall Gimbal set(좌, 우 세트)
99,000

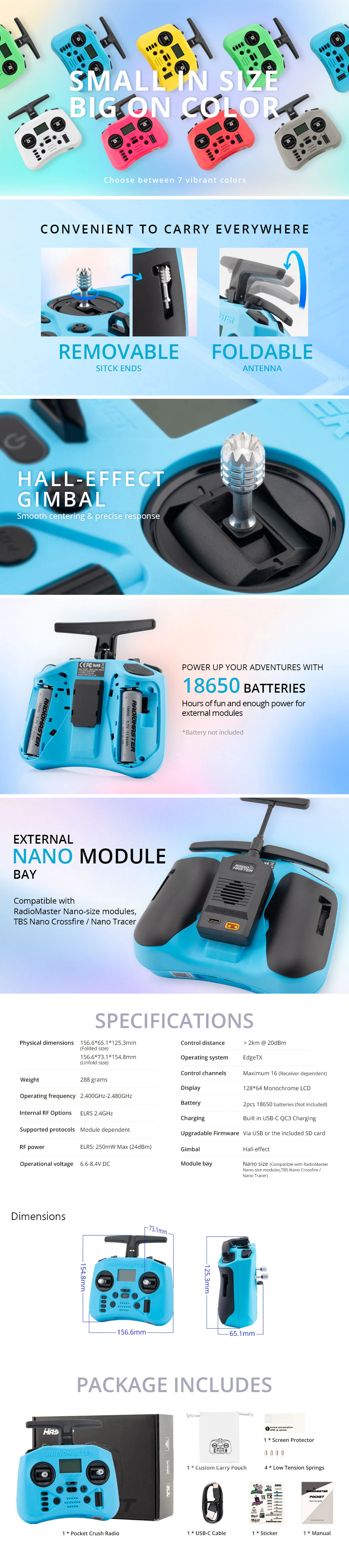

Radiomaster is excited to introduce the new Pocket Crush! Compact, affordable, and available in seven stunning colors—'Slate Grey,' 'Frost White,' 'Mint Mist,' 'Hot Pink,' 'Cherry Red,'

'Iceberg Blue,' and 'Lemon Twist Yellow'—each designed to inspire and excite. —The Pocket Crush has a big impact in a small package!

It is perfect for those who want to add a splash of color and personality to their RC adventures without breaking the bank, or those looking for a compact backpack solution.

Whether you are a beginner or a seasoned pilot, the Pocket Crush is your ideal companion for colorful and exciting flights.

Features

• Optional colors - Slate Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow

• Available with built-in ExpressLRS Backpack

• Preinstalled with EdgeTX firmware

• 18650 Batteries, all the power you need for hours of fun

• Portable and lightweight design with removable stick ends and foldable antenna

• Features X5 hall effect gimbals as standard for smooth cantering & precise response, upgradable to AG01 NANO CNC Hall effect gimbals

• Built-in LED lights help visualize your switch inputs

• Backlit LCD Screen offering a perfect balance of size and functionality

• Trim buttons for easy channel trimming

• External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire / Nano Tracer

Specification

Item: Pocket Crush Radio Controller

Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size）

Weight: 288 grams

Operating frequency: 2.400GHz-2.480GHz

Internal RF Options: ELRS 2.4GHz

Supported protocols: Module dependent

RF power: ELRS: 250mW Max (24dBm)

Operational voltage: 6.6 - 8.4v DC

Control distance: > 2km @ 20dBm

Operating system: EdgeTX

Control channels: Maximum 16 (Receiver dependent)

Display: 128*64 Monochrome LCD

Battery: 2pcs 18650 batteries (Not included)

Charging: Built in USB-C QC3 Charging

Upgradable Firmware: Via USB or the included SD card

Gimbal: Hall-effect

Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer)

Package Including

1 * Pocket Crush Radio

1 * Custom Carry Pouch

1 * USB-C Cable

1 * Screen Protector

1 * Sticker

4 * Low Tension Springs

1 * Manual

Li-Ion 18650 2000mAh (65mm)

보호회로 적용 65mm 표준사이즈 18650 리튬이온전지입니다.

대부분 보호회로 적용된 18650 배터리는 길이가 약 5mm정도 길게 제작되어있어서

배터리 트레이에 장착이 불편합니다.

본 제품은 표준사이즈 65mm로 특별히 제작된 제품으로 모든 18650 표준 배터리 케이스에

깔끔하게 장착이 됩니다.

수량 : 1pcs

<제품이미지>

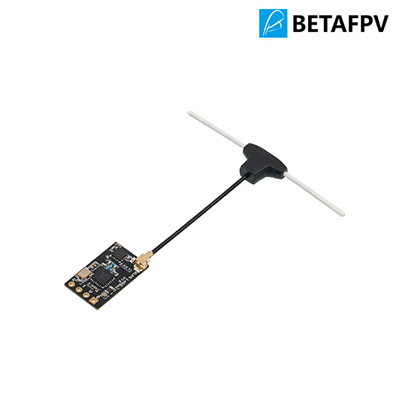

SuperD ELRS Nano Receiver

- SuperD ELRS 나노 수신기입니다.

본 제품은 ELRS 전용 수신기 입니다.

4in1모듈이나 CC2500모듈에 사용하실 수 없습니다.

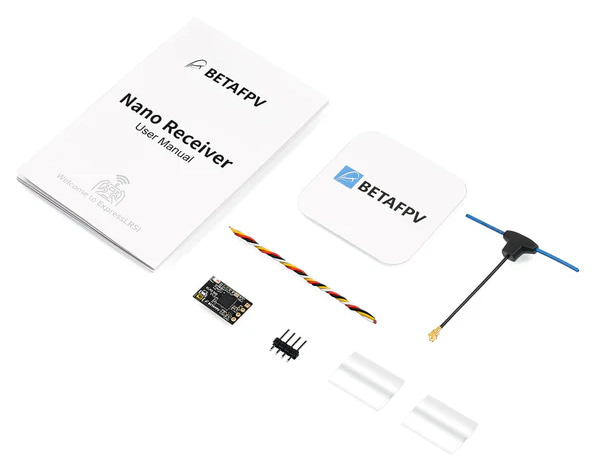

구성

수신기 1개

T 안테나 1개

케이블 1개

메뉴얼

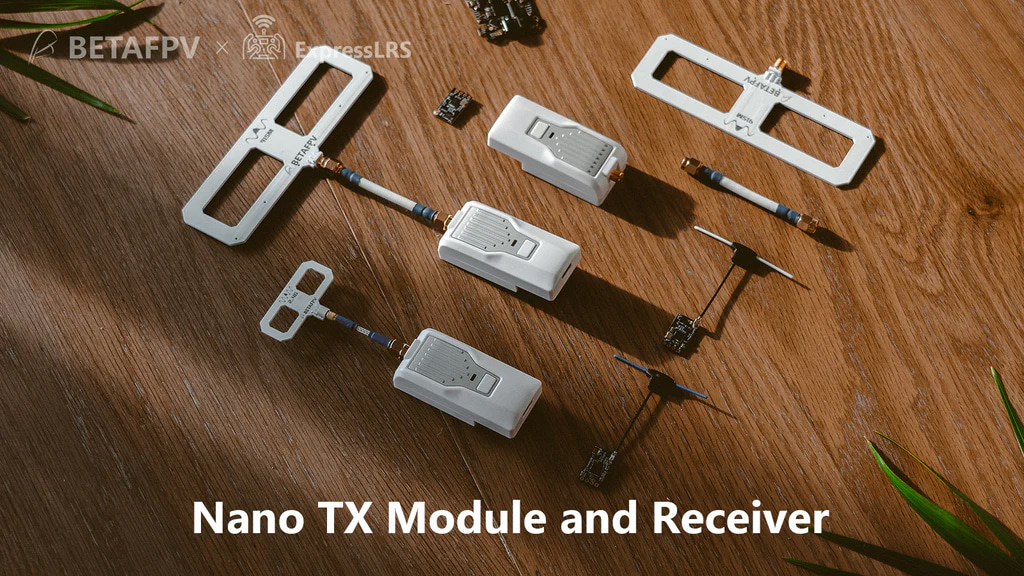

BETAFPV Nano receiver is based on the ExpressLRS project, an open-source RC link for RC applications.

ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range.

This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

Specification
Weight : 0.7g (receiver only)
Size : 12mm*19mm
Telemetry power : 20dbm (100mW, 2.4G Version)
Frequency bands (Nano receiver 2.4G version) : 2.4GHz ISM
Frequency bands (Nano receiver 915MHz/868MHz version) : 915MHz FCC/868MHz EU
Input voltage : 5V
Antenna connector : IPEX MHF

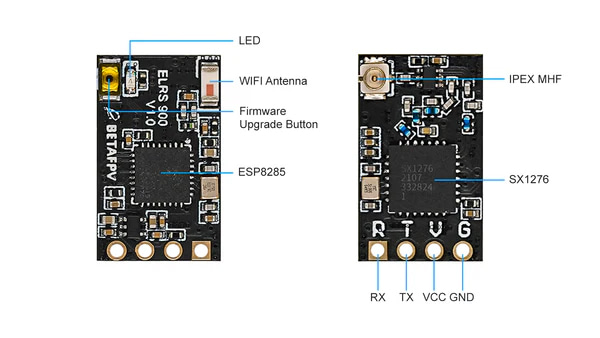

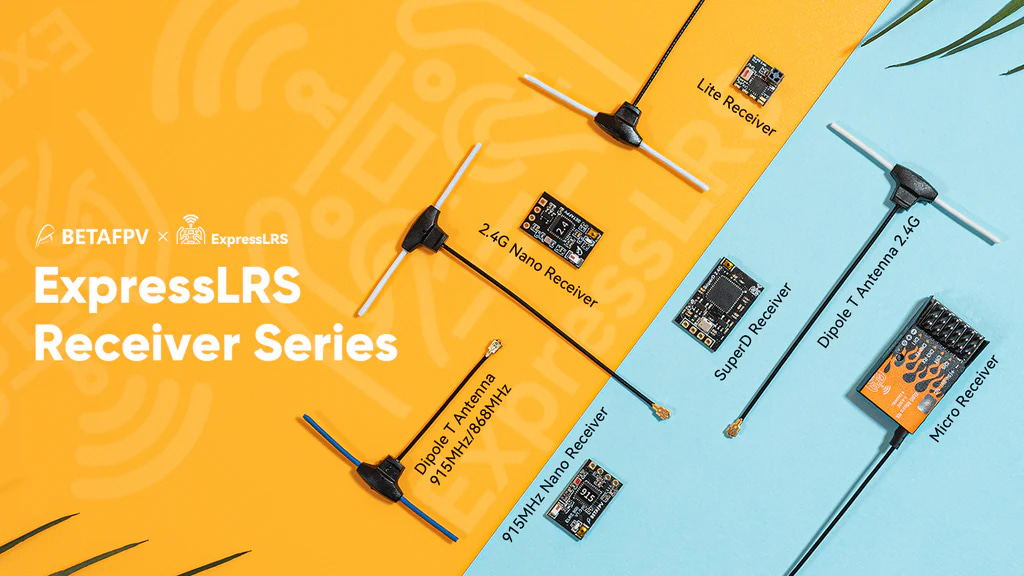

BETAFPV ExpressLRS Receivers
Choosing a suitable receiver to fly quadcopter or other RC models is very important.
BETAFPV ExpressLRS Receivers including ELRS Lite, Nano, Micro, and the newest SuperD, greatly fulfill pilots' requirements for FPV flying.

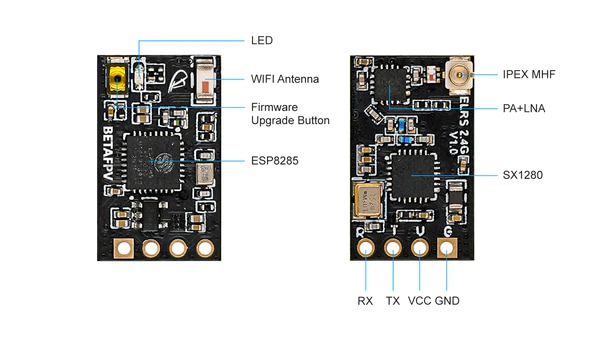

Diagram
Nano receiver 2.4G version diagram as shown below.
Nano receiver 868MHz/915MHz version diagram as shown below.Note : Now the firmware version of the Nano receiver and module manufactured by our company is ELRS 3.3.0.;
ELRS Innovative team has officially released version 1.0.0, based on the version, we have some updates:

• 2.4G Nano TX Module supports 500Hz refresh rate；
• Short press the button on the Nano module 3 times to get into the binding status.

We suggest our customers upgrade their modules and receivers' ELRS version to 3.3.0. Significantly,
the module and receiver have to be in the same ELRS version, otherwise, the frequency cannot match successfully.

Click to download the firmware of the ELRS Nano Receiver(V3.3.0 Version).


Know More About ExpressLRS
ExpressLRS is an open-source RC link for RC applications. Everyone could find this project on Github or join the discussion in Facebook Group.

ExpressLRS is based on Semtech Lora SX127x or SX1280 hardware for RX and TX respectively. it aims to achieve the best possible link performance
in both speeds, latency, and range. At 900 MHz a maximum of 200 Hz packet rate is supported. At 2.4 GHz a blistering 500Hz is currently supported
with a custom OpenTX build. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

More and more vendors start to support the ExpressLRS radio protocol in different parts, like radio transmitter with ELRS in stock, drone with built-in
ELRS receiver, ELRS TX module for JR bay, or Nano bay. BETAFPV team take part in this project and provide a series of ExpressLRS components.



Configuration & Bind
ExpressLRS uses the Crossfire serial protocol (AKA CRSF protocol) to communicate between the receiver and the flight controller board.
So make sure your flight controller board supports the CRSF serial protocol.
Next, we use the flight controller with Betaflight firmware to show how to set up the CRSF protocol.

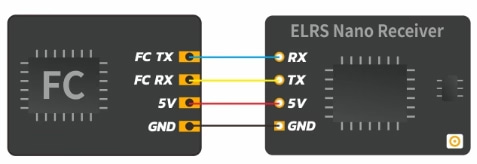

The connection between the ELRS Nano receiver and the FC board is shown below.

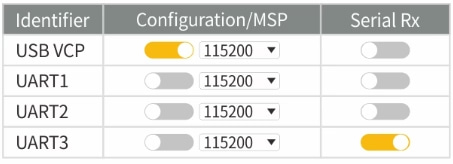

Enable the corresponding UART (e.g. UART3 below) as a Serial Rx on Betaflight Configurator "Ports" tab.


On the "Configuration" tab, select "Serial-based receiver" on the "Receiver" panel, and select "CRSF" as the protocol.
Telemetry is optional here and will reduce your stick update rate due to those transmit slots being used for telemetry.

Nano receiver could enter binding status by power on/off three times.

• Plugin and unplug nano receiver three times;
• Make sure the LED is doing a quick double blink, which indicates the receiver is in bind mode;
• Make sure the RF TX module or radio transmitter enter binding status, which sends out a binding pulse;
• If the receiver has a solid light, it's bound.

Note: Binding once and the receiver will store the binding information. Re-power and the connect successfully auto.

BETAFPV ELRS Nano receiver user manual download.

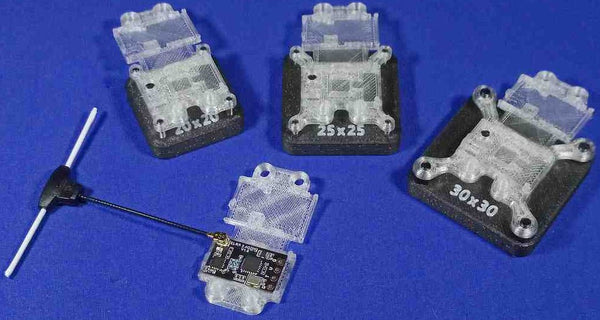

These folding TPU holders for BETAFPV's ExpressLRS 2.4G receiver have been designed by Ridwan Hughes to be reusable and easily printable.
You could download the STL file on Thingiverse.



Package
1 * BETAFPV ELRS Nano receiver
1 * BETAFPV T antenna
2 * Spare shrink tube
4 * 30awg silicon connection wires (1 black, 1 red, 1 white, 1 yellow)
1 * pin header 1x4
1 * Nano receiver user manual





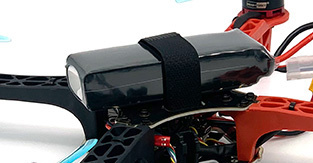

배터리 고정용 벨크로(Velcro) 입니다.
