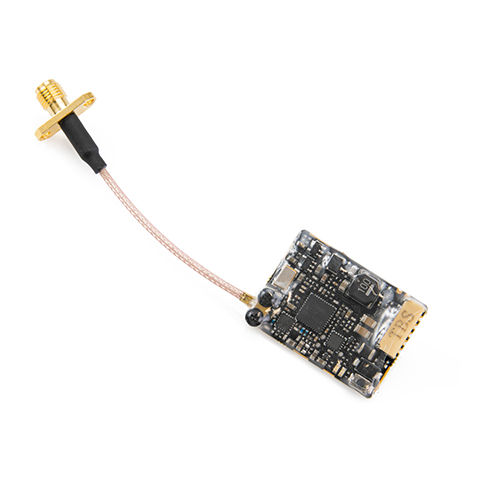

TBS UNIFY PRO 5G8 HV - RACE 영상송신보드(SMA)

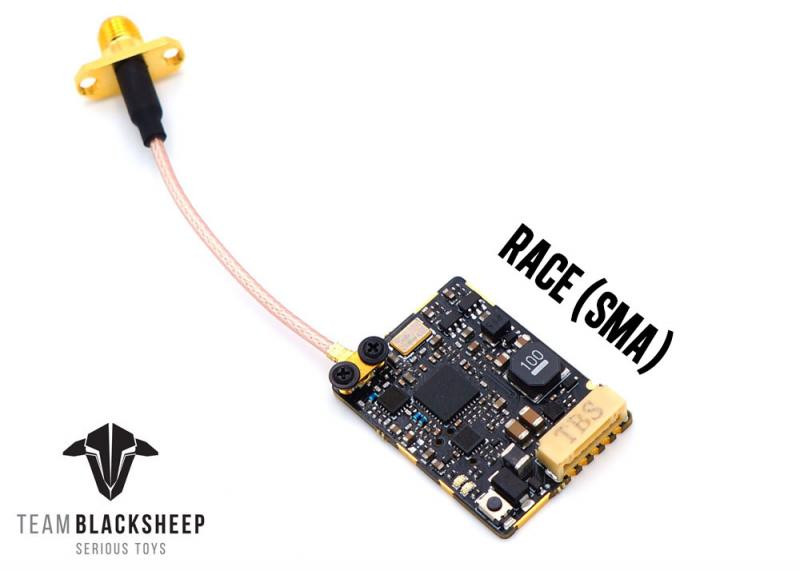

TBS UNIFY PRO 5G8 HV - RACE(SMA)

- Team BlackSheep의 5.8G 영상송신보드입니다.

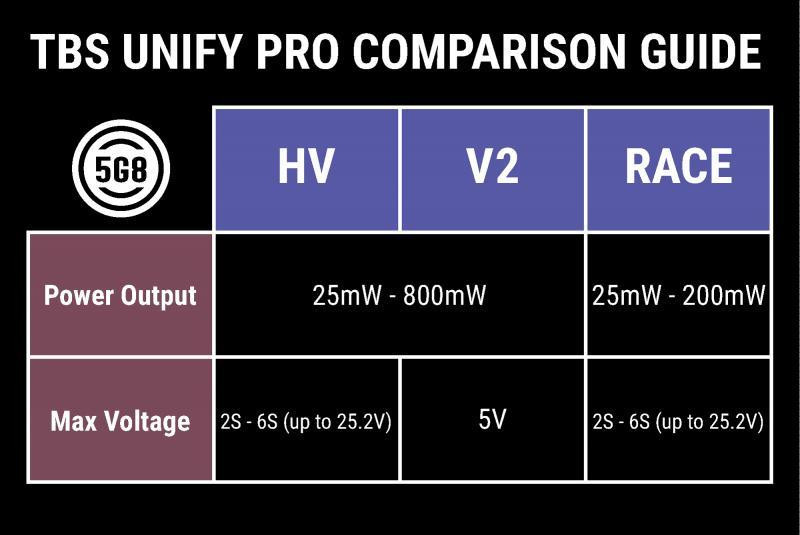

- 출력은 25-200mW 가변입니다.
- 레이싱 대회용으로 알맞습니다.
- HV(하이볼티지)라서 입력 전압이 6셀까지 가능합니다. 배터리 전원에 직결해도 됩니다.

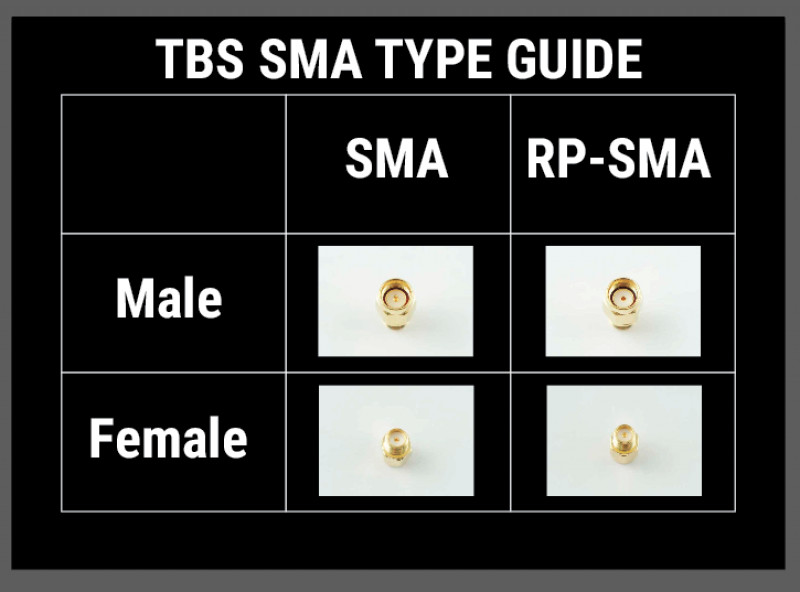

- 안테나 커넥터는 SMA방식입니다.
- U.FL단자가 볼트로 고정되어 보다 견고합니다.
- 스마트오디오와 별도로 오디오 단자가 생겼습니다. 별매의 마이크 연결하시면 됩니다.

로우밴드 가능한 최신버전입니다.

구성
영상송신보드 1개
케이블 1개
메뉴얼

전원넣고 비행을 하지 않으면 3분~3분30초 후에 영상이 꺼집니다.
발열때문에 그런것이며, 열이 식으면 다시 정상작동 합니다. 고장이 나진 않습니다.
비행중에는 쿨링이 되므로 이상없이 비행가능합니다.

아래 메뉴얼 링크입니다.
http://www.team-blacksheep.com/tbs-unify-pro-5g8-manual.pdf




MAIN FEATURES

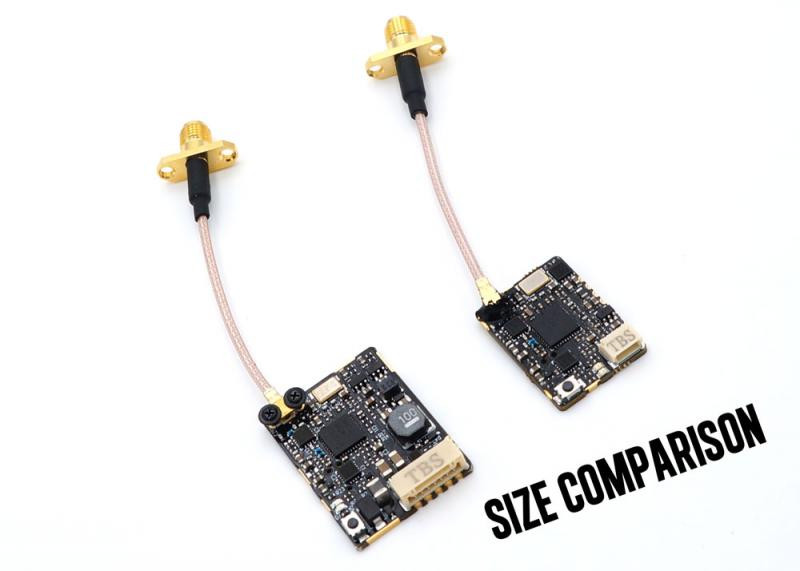

Smallest, lightest video transmitter on the market
2-6S input power supported
25mW / 200mW power settings
Ultra-clean transmission (up to 16 pilots at once!)
PitMode - power up your quad during a race
Easy OSD, FC and RC channel changes, with fallback button menu
Robust RF amplifier allows powering up without antenna for hours!
Clean powerup and video switching
CE certified

PITMODE - MADE TO RACE
Zero interference even while powered up, it's now a possibility! If you've ever repaired a quad during a race, you'll know the frustrations of not being able to power on and test your system. With PitMode, we will reduce the output power to a bare minimum (way below single digit mW's), and move to frequencies unused by race organizers, to allow you to power up your quad and still see the image! You've got a few meters of range to put your quad through its paces before placing it on that starting grid, and in combination with CleanSwitch you can power on as soon as your channel is available without interrupting any of the active channels.

SMARTAUDIO V2 - FULL CONTROL
SmartAudio technology provides UART and I2C control for your entire video transmitter. Parameters such as output power, bands, channels and frequency can be freely controlled. This enables remote channel control directly from a smart device (TBS Crossfire, external bluetooth or wifi module required), from your radio (TBS Crossfire with TBS Tango or OpenTX compatible remote required), or from the OSD (e.g. TBS CORE PRO). With all these options available, you ought to find something that fits your bill. Together with CleanSwitch, the sky is the limit ... jump between channels without interfering fellow pilots in air, create backup-/emergency-frequencies, global VTx power adjustments by race organizers or other clever systems aimed at streamlining and improving race management are now a possibility!

CLEANSWITCH - NEIGHBOR FRIENDLY
CleanSwitch is a technology developed at TBS that will ensure that your video transmitter is interference-free while powering on, or while changing channels. All current video transmitters swipe across the entire band while being powered on, often resulting in flickering and heavy interference to anyone in the air, regardless of video channel chosen. TBS CleanSwitch will allow you to power on and change channels while your buddies are in the air, without any external interference. CleanSwitch is race friendly, and pilot friendly ... that's how we like it at TBS :)

SAY NO! TO DIPSWITCHES
Even though learning binary was a fun mind-game, in practice a single-push-button or OSD-controlled video transmitter is just much easier to operate. Gone are the days of video transmitter cards, stepping on people's channels by mistake, or a mismatch between your goggle and video transmitter frequencies.

SPECIFICATIONS
Operating Voltage: 2S - 6S
Supply current: 600mA
Operating Temperature: watch for normal airflow
Audio carrier Frequency: 6.5 MHz
Video Input Impedance: 75 Ohm
Weight: 7g (with SMA, without antenna)
Input Connector: JST GH 7pin (after July 2018)
Antenna Connector: SMA Female Socket with screw mounting holes, U.FL to VTx
Video Format: NTSC/PAL
Output Power: 13dBm (25mW), 23dBm (200mW)

INCLUDED

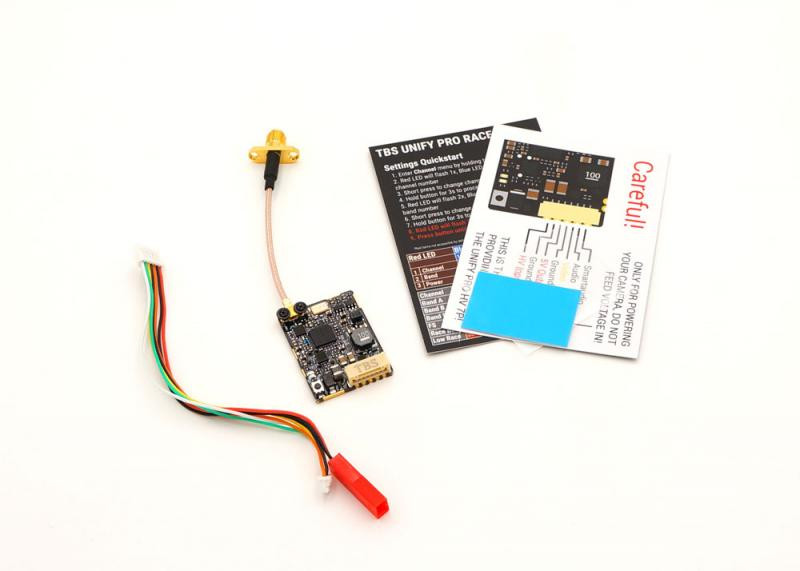

TBS UNIFY 5G8 Video transmitter
Video Transmitter pigtail cable
TBS UNIFY Pro Manual
TBS SmartAudio Specifications
