BETAFPV Pavo Pico Brushless Whoop Frame

(With HD VTX Bracket)

- Pavo Pico 프레임킷(HD Version)입니다.

모터, ESC, VTX, 안테나 등 기자재는 미포함입니다.

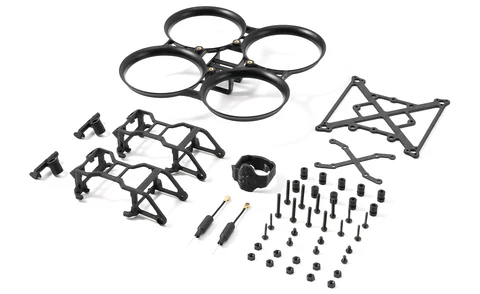

구성품

하단 사진 참조

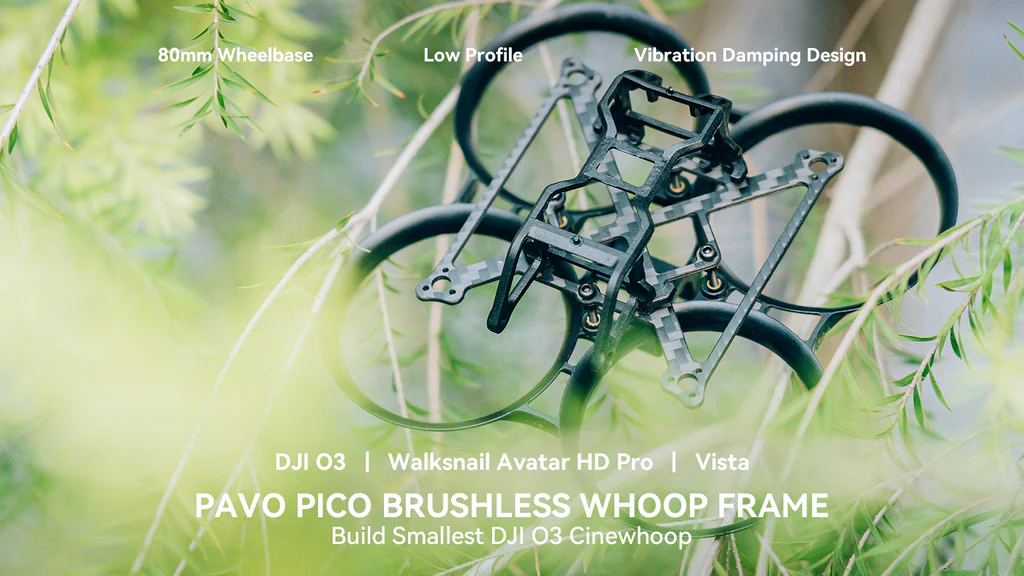

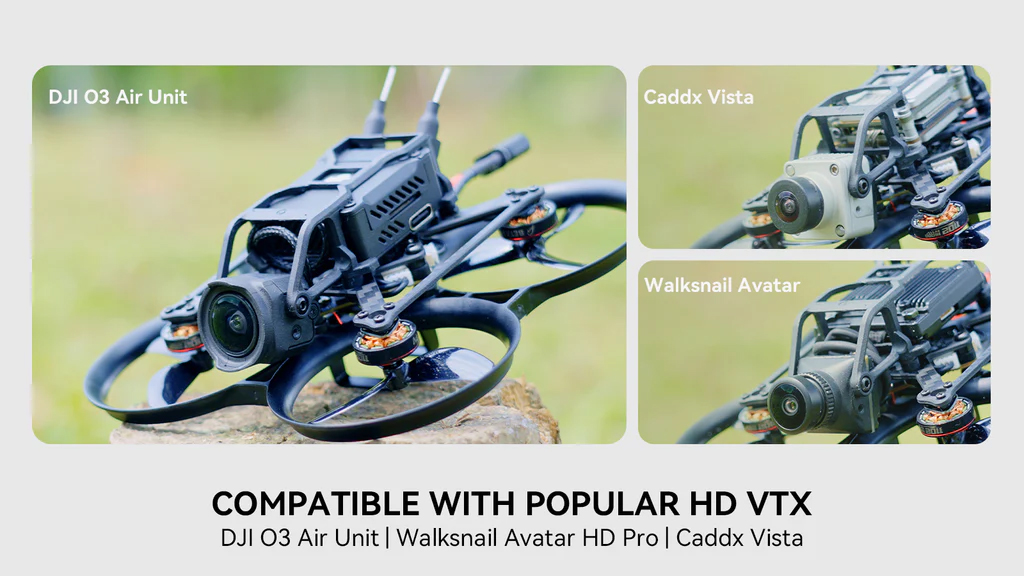

Pavo Pico is the Smallest 2S Sub100g DJI O3 Cinewhoop frame, compatible with other mainstream HD digital VTX on the market, such as

Walksnail Avatar Pro Kit, Vista Kit, etc. Based on feedback from pilots during the BETA TEST before, we have made upgrades to the frame,

such as lowering the battery slot height and adding filters and camera protection parts. These improvements will maximize the advantages

of the camera and HD digital VTX providing, enabling a unique and unparalleled flying experience for pilots.



Bullet Point

• HD digital VTX bracket made of lightweight and tough injection-molded PP material with an adjusted structure to prevent HD VTX displacement or loss after the crash.

• Incorporating an angle-limited lens protection print and DJI O3 series filters, It is recommended to purchase, which can increase safety and improve visual quality.

• The Rubber Damper Vibration damping design reduces low-frequency vibrations and is used with GyroFlow stabilization software for a stable and clear camera image during high-speed flight.

• To accommodate a wider range of battery sizes, the main body of the frame can be trimmed through DIY methods.

Additionally, larger batteries can be installed by using battery straps or printed components.

• The DJI O3 can be directly installed, while Avatar and Vista require a 20*20 mounting plate and screws (included) for fixation.

The naked frame is suitable for users who DIY refit and assemble the HD VTX by themselves

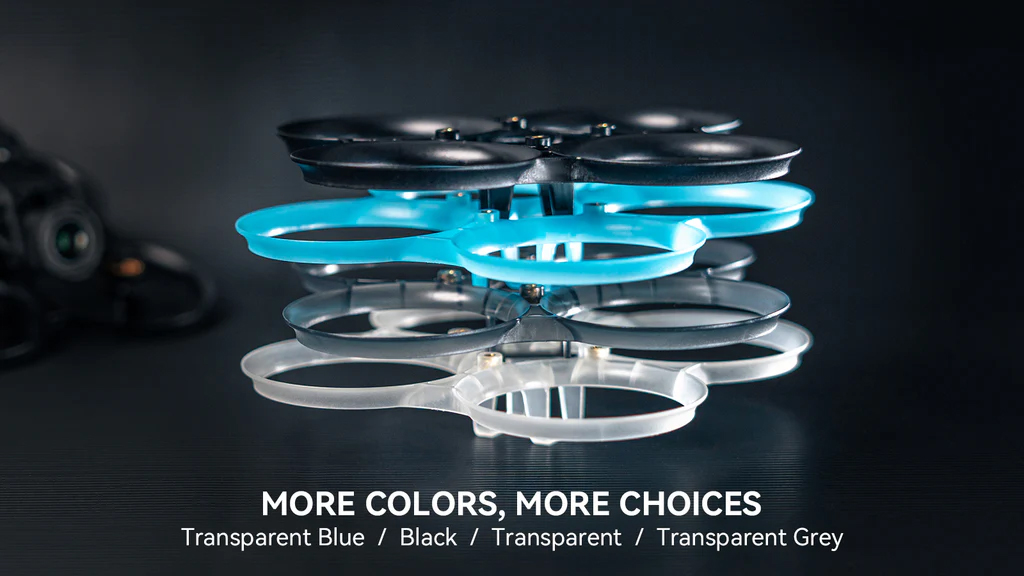

• We offer a wider range of colors for the Pavo Pico frames, giving you even more options to choose from.

Whether you prefer a bold and bright hue or a more subdued shade, we have a color that will suit your style.

You can choose your favorite color or collect them all to create your own unique mix-and-match cinewhoop.

Specification

Item: Pavo Pico Brushless Whoop Frame

Material: PA12

Wheelbase: 80.8mm

Battery Slot Size: 16mm*12.7mm

Camera Installation Spacing: 19mm/20mm

Color: Black/Blue/Transparent/Transparent grey

Weight: 13.80g/11.62g

Motor Mounting Hole Position: 3-M1.4-φ6.6mm

FC Pattern: 26×26mm, suitable for F4 1S 12A AIO Brushless FC V3

HD Digital VTX System

Pavo Pico supports various types of HD VTX. DJI O3 and Walksnail Avatar Pro Kit both support HD digital VTX up to 1080P using

dual-band transmission technology for better signal stability. The Vista Kit supports digital signal transmission for HD video up to 720P,

with low latency and superior image quality performance. It's compact and lightweight, making it great for small drone installation,

and compatible with various remote controls and monitors. The customized HD VTX mounting bracket has a split design, making it

effortless to install for pilots DIY, and explore more possibilities while ensuring HD image quality.

Pavo Pico Frame Kit

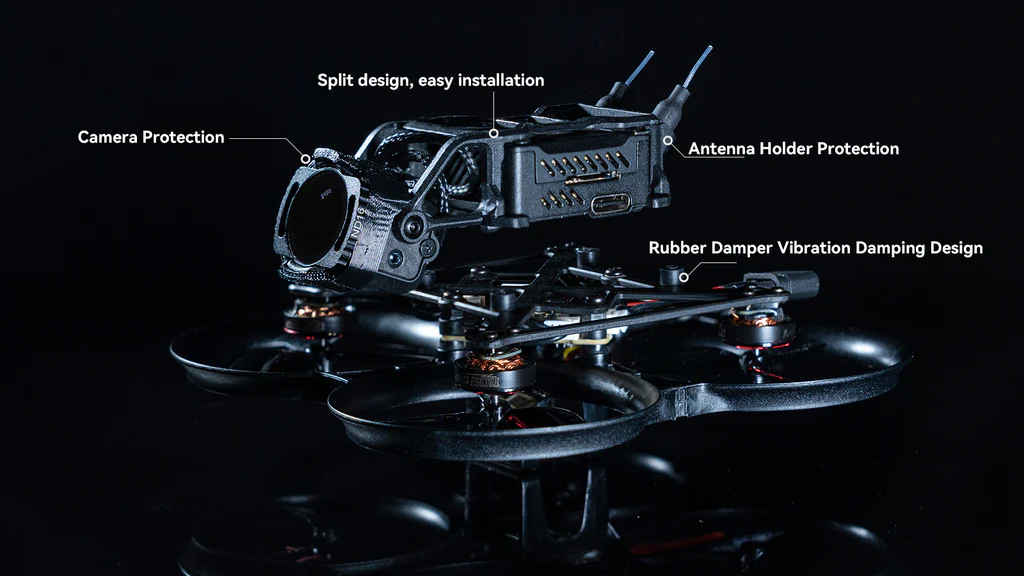

We used ultra-light PP material to make the HD VTX mounting bracket, increasing its toughness. The antenna fixing slot and frame have been fused

to reduce damage risk, while the camera's installation height has been lowered with a protective printed part to limit its movable angle to within 30°.

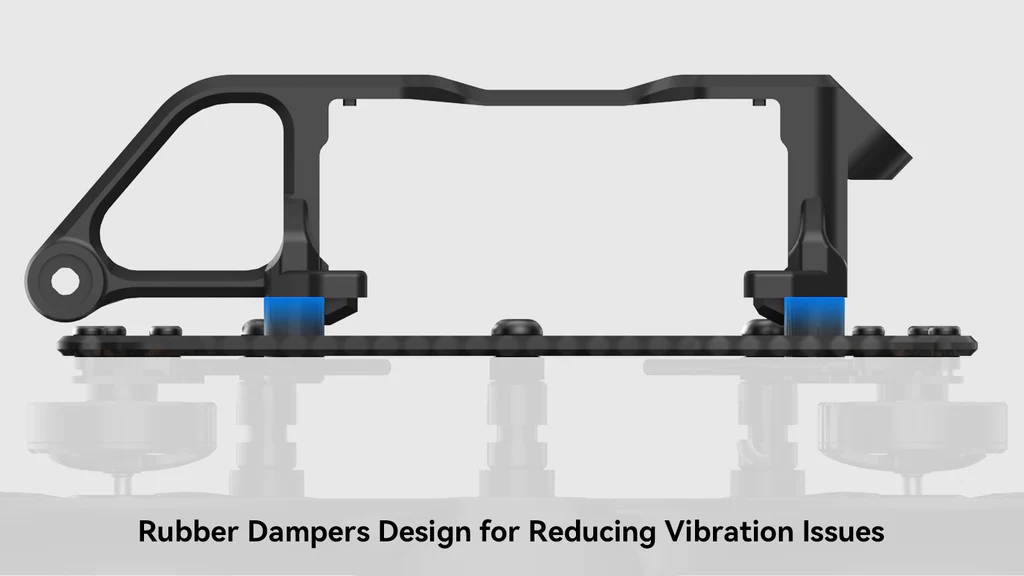

Additionally, an O3 filter can be used to protect the lens and enhance image quality. We have incorporated a unique rubber damper vibration-damping

design, used with GyroFlow stabilization software, which greatly enhances safety and ensures a smooth, HD image output. When you screw the die-cast

screws, please DO NOT screw them too tight to leave room for rubber dampers to absorb vibration. It may cause jello in the video footage.

Click to watch the installation guide video for the DJI O3 Air Unit on Pavo Pico.

DJI O3 Vibration Problem

To tackle the challenge of vibration on many whoop drones, the DJI O3 unit is mounted on a carbon fiber plate

with 4 rubber dampers. This innovative design ensures peak performance and perfect stability.



Troubleshooting:

To improve video quality when recording with DJI O3 HD VTX, turn off its electronic stabilization and use GyroFlow stabilization software.

When fixing the HD VTX bracket with M1.4*10 screws, ensure that the nut just touches the shock-absorbing ball.

The Jello effect may occur during the above installation due to 2 reasons:

• The VTX bracket is over-tightened with the screw and the rubber dumper is totally deformed.

To solve this, make sure that the screw is tightened just enough to touch the shock-absorbing ball and keep the ball and bracket loose.

• If It is a large deformation of the frame or quadcopter blades, replace the frame or blades with larger vibrations if necessary.

Note: use acetate tape to bind motor wires and prevent them from drooping and interfering with the propeller's rotation.

Upgrade Low Profile Design

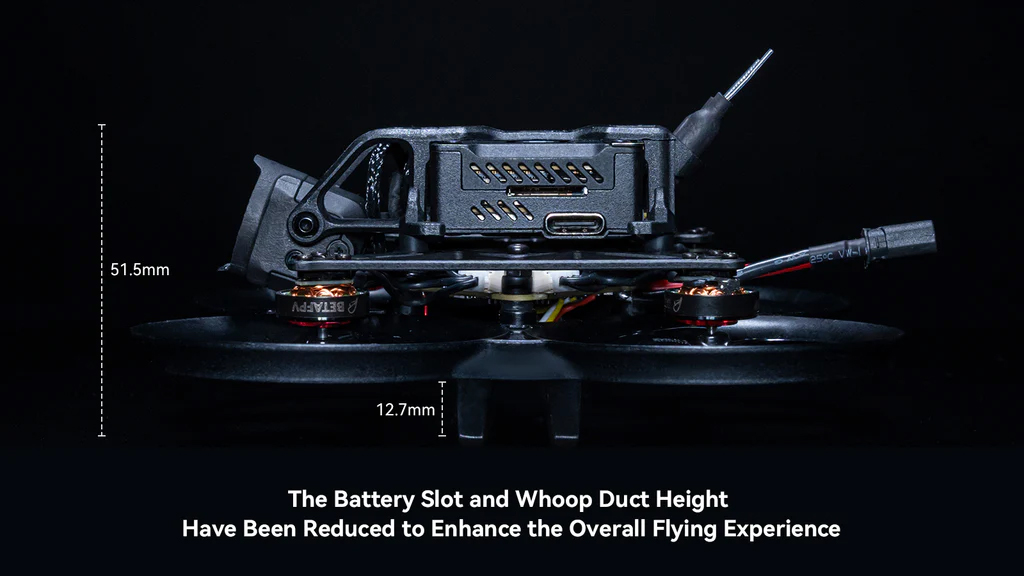

After collecting feedback through the BETA TEST, we lowered the height of the HD VTX mounting bracket and whoop duct

from 60.6mm to 51.5mm and the battery compartment results in a more low profile on the cinewhoop.

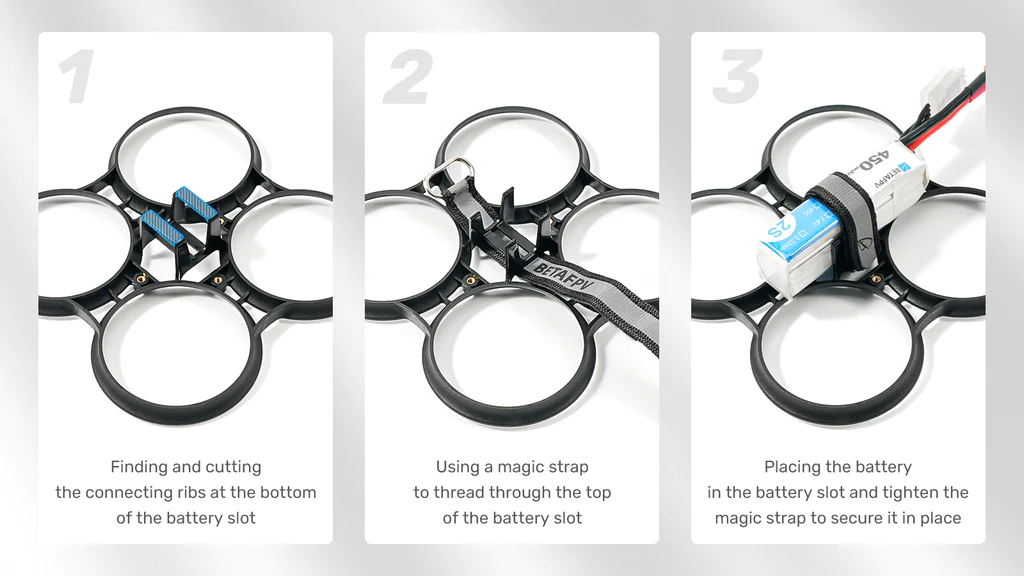

Pilots can further customize their cinewhoop with DIY options such as battery straps or printable components, allowing for compatibility

with a variety of battery sizes. This enables pilots to tailor and enhance their cinewhoop to meet their specific requirements and preferences.

Steps as follow:

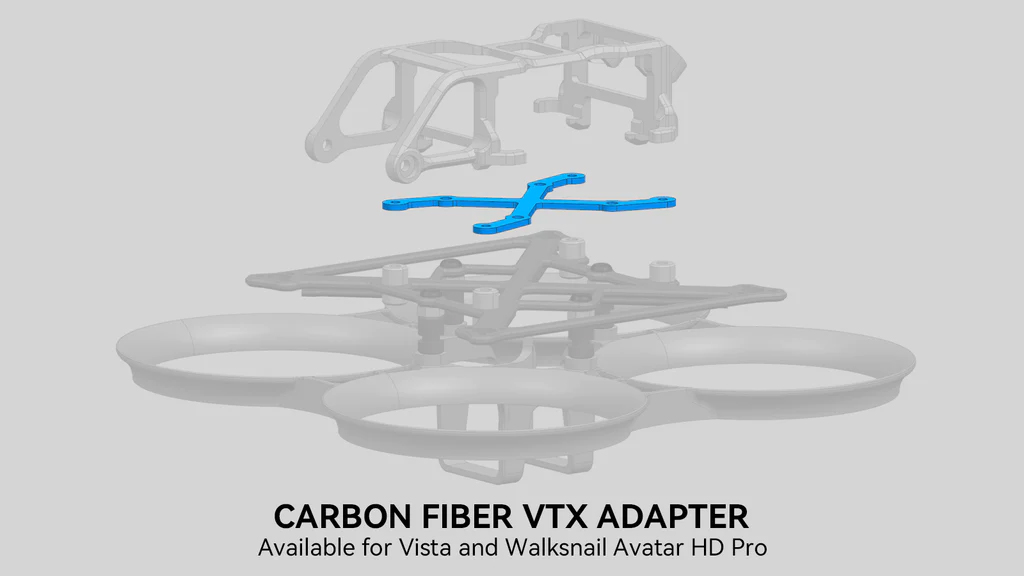

Carbon Fiber VTX Adapter

We found that the installation dimensions of the Vista and Avatar HD Pro digital VTX modules closely match those of the O3 digital VTX.

Thus, Installing a carbon plate with mounting holes that measure 20x20mm is sufficient to mount both digital VTXs.

Install quickly and effortlessly, while meeting pilots' various DIY needs, and exploring more possibilities for flying.

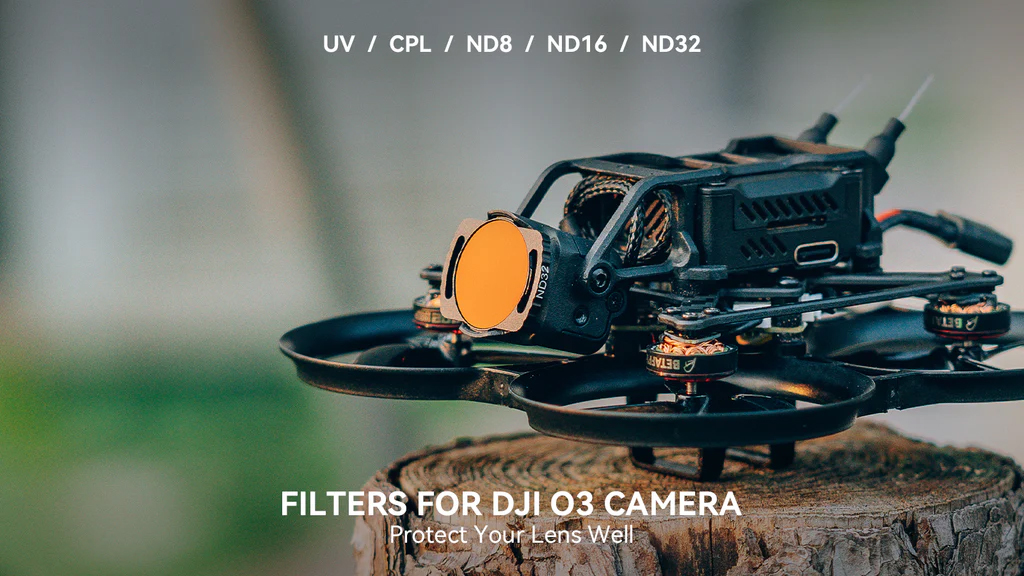

ND Filter for DJI O3 Camera

BETAFPV ND Filter for DJI O3 Camera is specifically designed for the Pavo Pico Brushless Whoop Quadcopter.

Meanwhile, the DJI O3 Air Unit ND Filters are tailored for the DJI O3 Air Unit and are capable of reducing the amount of light

that enters the camera lens. With this feature, you can achieve slower shutter speeds or wider apertures when flying.

These lightweight filters are crafted from high-quality optical class ensuring optimal image clarity and are too easy to install on the build.
