Axisflying Argus PRO F7+ECO 100A stack (32bit, 8S, BL32)
- FC와 ESC 콤보 상품입니다.
- ECO F722 FC와 Argus PRO 100A ESC입니다.
구성

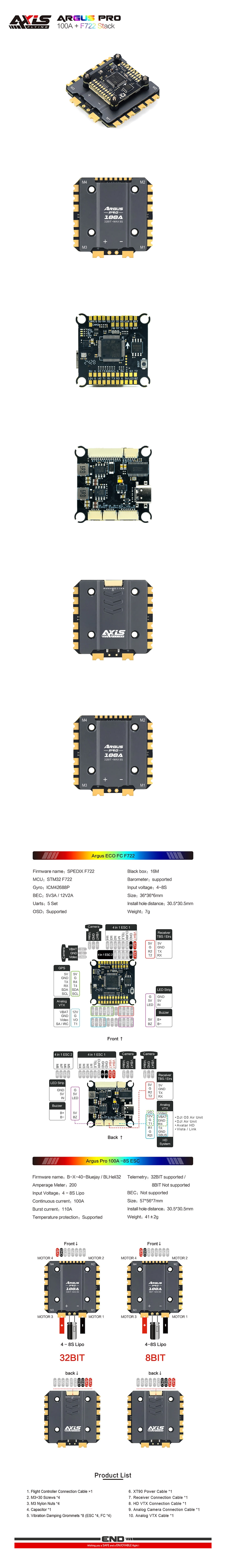

하단 사진 참조
Foreword
Axisflying focuses on user experience and solves pain points for heavy‑lift FPV platforms.
This Argus Pro 100A + ECO F405/F722 Stack is a high‑power integrated flight solution with aluminum heat dissipation,
built for 15‑inch heavy‑load drones, supporting both 8‑bit & 32‑bit ESC versions.
Feature
Integrated stack: Argus Pro 100A ESC + ECO F405 / F722 Flight Controller
With heat‑dissipating aluminum parts for stable long‑time high‑load operation
ESC supports 8‑bit / 32‑bit dual versions, 4–8S high voltage input
100A continuous current, strong power for 15‑inch propeller drones
FC options
ECO F405: STM32F405, ICM42688P gyro, 5×UART, 16M blackbox, OSD, baro
ECO F722: STM32F722, ICM42688P gyro, 5×UART, 16M blackbox, OSD, baro
BEC 5V3A / 12V2A, sufficient for HD VTX and peripherals
Standard 30.5×30.5mm mounting, universal for heavy‑lift frames
Complete cable set for plug‑and‑play installation
Recommended Configuration
Stack: Argus Pro 100A + ECO F722 (32‑bit)
Input Voltage: 4–8S LiPo
FC: ECO F722 (STM32F722)
ESC: 100A continuous, 110A burst
Mounting: 30.5×30.5mm
Application: 15‑inch heavy‑lift FPV drones
Flight Controller: ECO F722
Firmware: SPEDIX F722
MCU: STM32 F722
Gyro: ICM42688P
Barometer: Supported
Blackbox: 16M
Input: 4–8S
BEC: 5V 3A / 12V 2A
UARTs: 5 sets
OSD: Supported
Size: 36×36×6mm
Mount: 30.5×30.5mm
Weight: 7g
ESC: Argus Pro 100A
Firmware: B‑X‑40‑Bluejay (8‑bit) / BLHeli32 (32‑bit)
Input Voltage: 4–8S LiPo
Continuous Current: 100A
Burst Current: 110A
Ammeter: 200A
Temperature Protection: Supported
Telemetry: 32‑bit supported; 8‑bit not supported
BEC: Not supported
Size: 57×56×7mm
Mount: 30.5×30.5mm
Weight: 41±2g
Package Contents
FC connection cable ×1
M3×30 screws ×4
M3 nylon nuts ×4
Capacitor ×1
Vibration damping grommets ×8
XT90 power cable ×1
Receiver cable ×1
HD VTX cable ×1
Analog camera cable ×1
Analog VTX cable ×1
