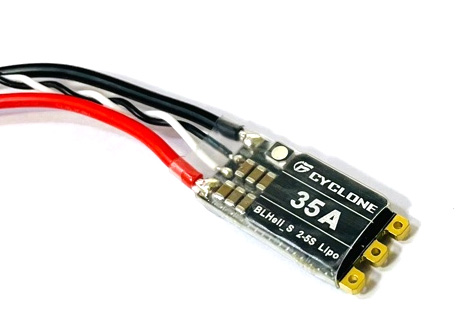

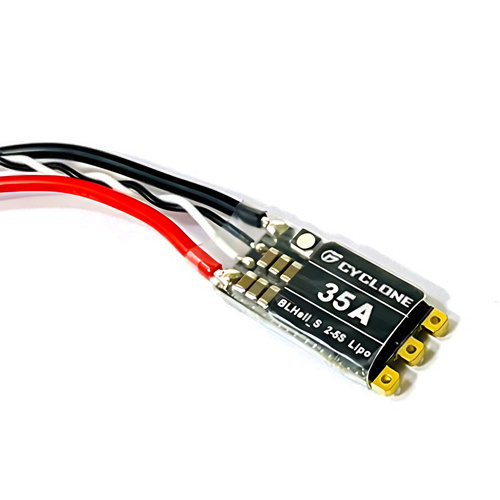

[CY] Cyclone 35A BLHeli_S 레이싱 드론 변속기 ESC (2S~5S)

[Cyclone] Cyclone-35A BL Heli-S ESC (DShot150/300/600/One Shot)

초 소형! 초 경량!

최신 EFM8BB21F16G 칩셋을 장착한 소형 드론용 변속기로서 BL Heli-S 및 Shot 150/300/600 디지털 쓰로틀 방식을 지원합니다.

6-레이머, 6온스 도핑된 PCB를 사용, 대전류에도 충분히 버틸 수 있도록 설계, 아울러 RGB 컬러 LED 칩이 장착되어 있습니다.

입력전압은 최대 5S (18.5V)까지 가능합니다.

- Utilizes high-performance EFM8BB2 50MHz MCU

- Capacity : 30A

- Input Voltage: 2S~5S(7.4V~18.5V)

- Continuous Current : 30A

- Burst Current(10s) : 40A

- BEC : NO(Opto)

- Programming : YES

- PCB+ power cord length: 12cm

- PCB+ signal line length: 16cm

- Dimension : 13x25x5.4mm

- Weight: 5.4g(incl' Wire and Harness)

<Features>

The latest EFM8BB21F16G high speed control chip.
A 6-layer, 3-ounce copper-thick and high-quality PCB is adopted, and the layered layout of large current and small control signal is adopted to enhance the anti-jamming ability. The gold plating process on PCB surface can effectively improve the current resistance and heat dissipation ability of electric regulation.
Integrated RGB multi-color bright LED night light, night flight is even more dazzling.
It supports BLHeli-S and DShot 150/300/600 digital throttle. It has strong anti-jamming ability and quick response.
By default, the hardware PWM is turned on and the Damped Light hardware PWM drives the motor. The noise is low and the throttle response is smoother.
Damped Light mode, regenerative braking function, make motor deceleration more sensitive and effective, control more precise; Active continuous current technology, so that the battery recovery power, prolong the duration.

- Voltage: Support 2-5S power supply
- Working current: 35A / Continuous current 35A, peak 45A/10s
- Support protocols: dshot 125/300/600, oneshot 125
- Weight: 6g
- Size: 13*28.5
- Power cord length: 18AWG 90mm
- Signal line length: 150 mm


<제품 이미지>
