TBS Lucid H7 8S 60A STACK
- FC와 ESC 콤보 상품입니다.

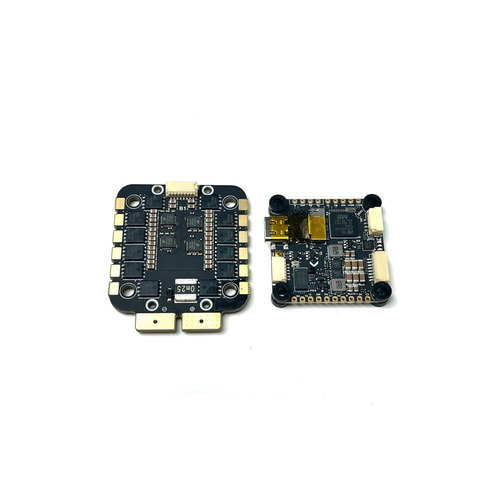

- LUCID H7 FC와 LUCID 8S 60A ESC입니다.
- ICM42688 자이로를 사용합니다.
- AM32 소프트웨어를 사용합니다.
- 전용의 고릴라마운트가 적용되었습니다.
기본 마운트사이즈는 39.5 x 16, 30.5 x 30.5 입니다.
20x20 마운트를 사용하시려면
옵션에서 마운트 사이즈를 선택해주세요.
구성
하단 사진 참조
FC Specification
MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash.
Gyro: ICM42688 x 2 (duo gyro)
OSD Chip: AT7456E (SPI2)
Barometer: Infineon DPS310 connected via I2C2.
PWM Outputs: 13 channels, including a dedicated “LED” pad.
Blackbox (BB): Data logging equipped with a MicroSD card slot (SDIO)
UARTs: 7 total (1, 2, 3, 4, 6, 7, 8) signal inversion ready
I2C Buses: 2 available.
CAN Bus: 1 available.
Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2).
LED Indicators: 3 LEDs (Blue, Green for FC Status, Red for 3.3V Power).
Breakout: SPI3 breakout available.
USB Interface: Type-C connector (USB 2.0 standard).
JST Connectors:
1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground).
Dual Camera Input: Switchable inputs for two cameras.
Power Control: Switch for filtered 5V/Vbat output power.
DJI FPV OSD: Compatible via any spare UART port.
ESC Specifications
ESC software: AlkaMotors32 (AM32)
ESC target: tbslu8s4in1
Rated current: 60A x 4, 60 seconds
Peak Current: 85A x 4, 30 seconds
Propellers: Up to 11", over 7" requires good airflow
Input: 3-8S Lipo
Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
ESC Current port: Yes
BEC: No
Size: 50mm*42mm
Mounting: Gorilla-mount (39.5 x 16.0mm) & 30.5x30.5 mm or brackets for 20x20 mm
Weight: 17.58g, 22g incl. brackets

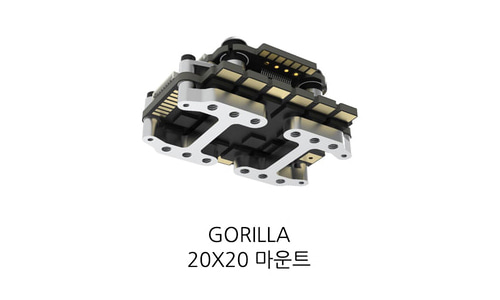

Gorilla mount
Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the
complication of having to run mounting bolts through the middle of the ESC. We call this the "Gorilla" mount.
Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames.
Backwards compatibility is provided through mounting brackets.

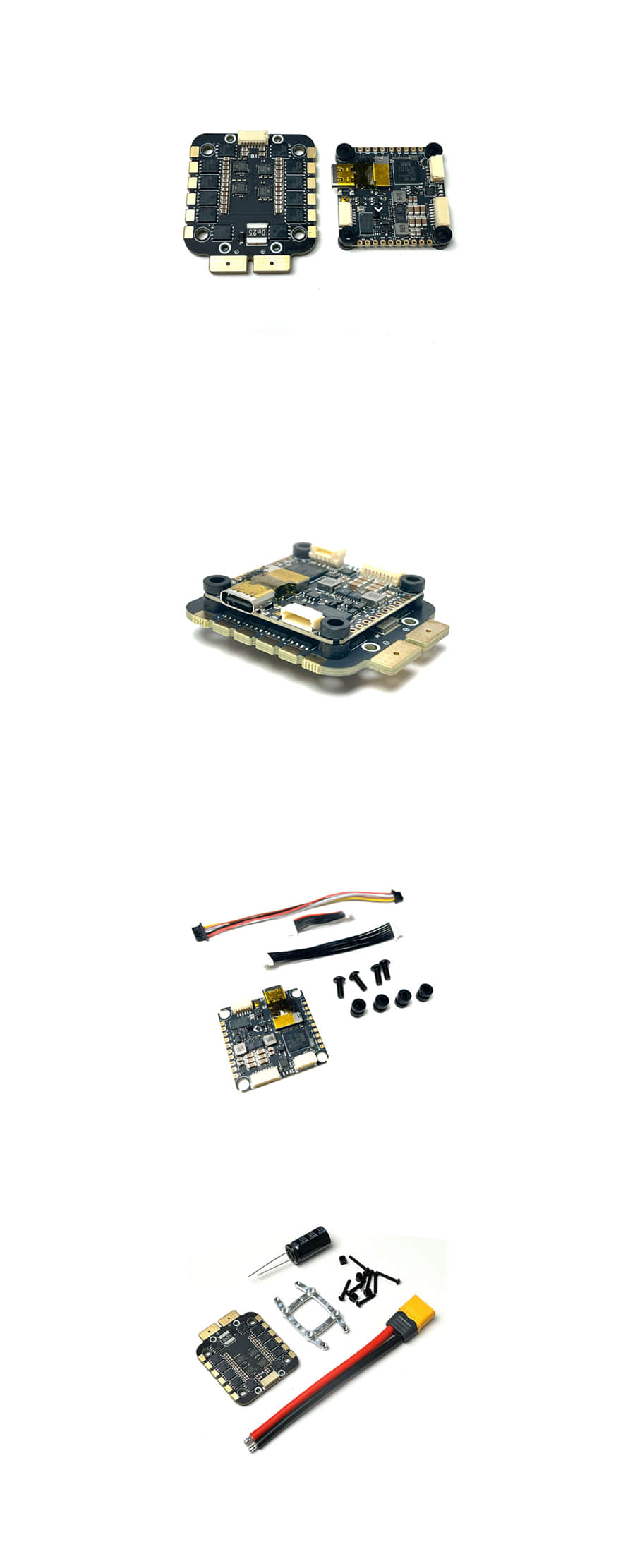

Package
1x TBS Lucid H7 Flight Controller.
1x 8S 4-in-1 ESC.
Mounting hardware including Gorilla brackets for frame compatibility.
Cables and connectors for installation
