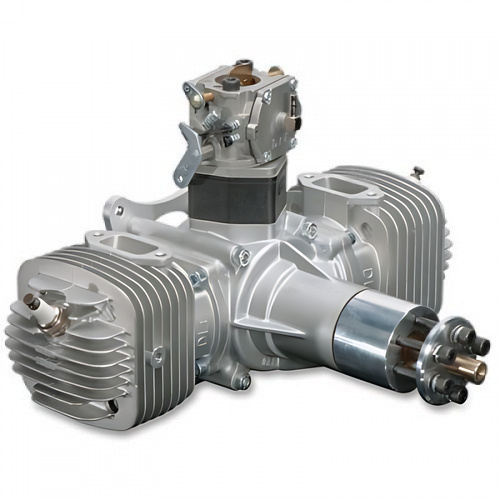

[DLE Engines] DL Power DLE 60 가솔린 엔진

Smooth operator.

Give your sport aircraft the low-vibration smoothness and unique sound of a horizontally opposed twin! The DLE-60 Twin gasoline engine also offers strong horsepower and an excellent power-to-weight ratio, keeping weight low while producing all the muscle your bird requires.

• Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
• Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.
• Includes two high-quality Pitts style mufflers, beveled to reduce installation work by avoiding need to cut into cowl, thus also preserving scale lines and aerodynamics.

Specifications:
Stock Number: DLEG0060
Displacement: 61 cc (3.7 cu in)
Bore: 1.42 in (36 mm)
Stroke: 1.18 in (30 mm)
Total Weight: 4.37 lb (1.98 kg)
RPM Range: 1,400-8,500
Output: 7.0 hp @ 8,500 rpm

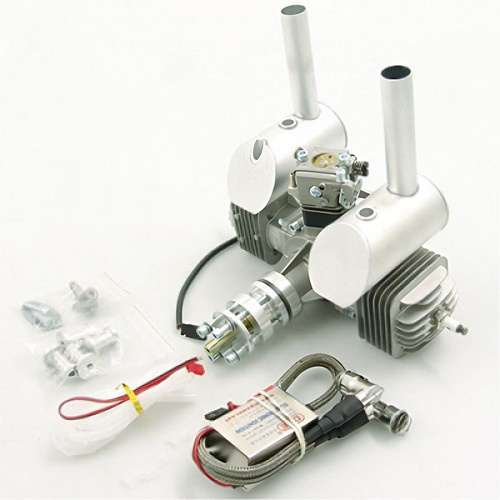

Includes: Electronic ignition, 2 mufflers, 2 spark plugs, mount & engine standoffs
Requires: Unleaded gasoline, oil, ignition battery & propeller

Technical Data:
Ignition Battery: 4.8V-12V
Compression Ratio: 7.6:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: DLEG6026
Weight Breakdown: Engine: 54.85 oz (1555 g); Muffler 1: 2.82 oz (80 g); Muffler 2: 3.0 oz (85 g); Ignition: 7.44 oz (211 g)

Recommended Products:
HCAM6426 Hobbico LiFeSource 6.6V 1800mAh 10C LiFe Receiver Pack
XOAQ2210 Xoar 22x10 Beechwood Prop

Recommended Options:
FPWM0290 FlightPower 5A Voltage Regulator (if a LiPo or LiFe pack is used.)
DLEQ0551 DLE Propeller Drill Guide DLE-55
DLEG9205 DLE Gas Engine Kill Switch v2.0
DLEG5525 DLE Onboard Digital Tachometer
XOAQ2310 Xoar 23x10 Beechwood Propeller

See your favorite hobby retailer for additional recommendations.
See engine manual for proper break-in procedures.
