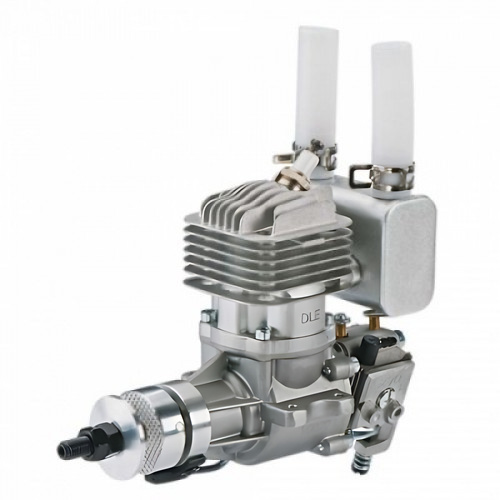

DLE-20RA Gasoline Engine

Glow size — rear-exhaust installation ease!

The DLE-20RA has the features you're looking for. Rear-exhaust design makes it an easy install even in cramped cowls — and a beam mount makes installation easy. A rear pumper carb offers consistently superior performance, as well as simple installation and adjustments.

A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE-20RA another attractive alternative to glow... and a solid buy for value and performance.

Features:

• Light, efficient design for a high power-to-weight ratio
• Lightweight piston for fast acceleration, excellent compression and low vibration
• CNC-machined parts for high performance and long life
• Sealed crankshaft bearings
• Perfect for use with tuned pipes
• Custom pumper carb
• Updated muffler for excellent aeration and power

Specifications:
Stock Number: DLEG0420
Displacement: 20.0 cc (1.22 cu in)
Bore: 1.26 in (32 mm)
Stroke: 0.98 in (25 mm)
Weight:
Engine: 1.46 lb (660 g)
Muffler: 2.8 oz (80 g)
Ignition Module: 4.6 oz (130 g)
Total: Weight: 1.92 lb (870 g)
RPM Range: 1,700-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition module, muffler, spark plug, manual, gasket, bolts, throttle arm extension & two exhaust extensions
Suggested Propellers: 14x10, 15x8, 16x6, 16x8 & 17x6
Suggested Break-in Prop: n/a

Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack (Voltage regulator required if LiPo or LiFe pack is used)
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: DLEG2326
Static Thrust: 13.88 lb (6.3 kg) @ 328 ft (100 m) altitude; 12.34 lb (5.6 kg) @ 5,900 ft (1800 m) altitude

Recommended Products:
HCAM6416 Hobbico LiFeSource 6.6V 1100mAh 10C LiFe Pack
XOAQ1608 Xoar PJA 16x8 Beechwood Propeller

Recommended Options:
DLEG2326 DLE CM6 Spark Plug
FPWP2212 FlightPower FP25 7.4V 2100mAh LiPo Battery w/Star Plug
ONXM2205 Onyx NiMH Receiver 6.0V 2000 AA Flat Universal Plug
FPWM0290 FlightPower 5A Voltage Regular (if LiPo or LiFe pack is used)
XOAQ1606 Xoar PJA 16x6 Beechwood Propeller
XOAQ1706 Xoar PJA 17x6 Beechwood Propeller

See your favorite hobby retailer for additional recommendations.
