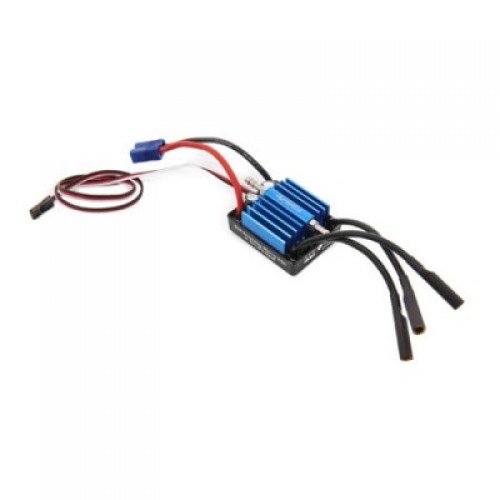

[DYNAMITE] 60A BL Marine ESC 2-3S

Overview Back to Top ^ Key Features Built in switch allows for easy change of battery chemistry type 14awg wires Large 4mm bullet brushless motor connectors Pre-wired with high-current EC3 connectors 60A single (not dual) battery configuration Overview Dynamite, known for it’s performance oriented, value priced aftermarket RC parts, accessories and electronics introduces its lineup of marine electronic speed controls designed specifically high performance marine applications. OEM for most Pro Boat models, Dynamite’s lineup of marine ESC’s offer users with speed controls engineered to meet the performance demands of today’s high speed RC powerboats. Available in varius configurations, each speed control comes built for complete water cooling and were designed to easily handle the power delivered from today’s high output Li-Po batteries. In addition, each ESC comes pre-wired with a NiMH/Li-Po switch providing an easy method of selecting NiMH or Li-Po battery types. Additional programming is easily managed through the optional LED program card.

Specifications

Forward: Yes
Reverse: Yes
Brake: Yes
Continuous Maximum Current: 60A
Input Voltage: 2S-3S (7.4V-11.1V) Li-Po; 6C-9C (7.2V-10.8V) Ni-MH/Ni-Cd
Input Connector Types: EC3 Battery
Output Connector Types: 4mm Bullet
Motor Limit: 3656 size or smaller motors.
Momentary Peak Current: 360A
Length: 2.4 in (60.5mm)
Width: 1.5 in (38.5mm)
Height: 1 in (25.6mm)
BEC Voltage: 6V
Overload Protection: Yes
