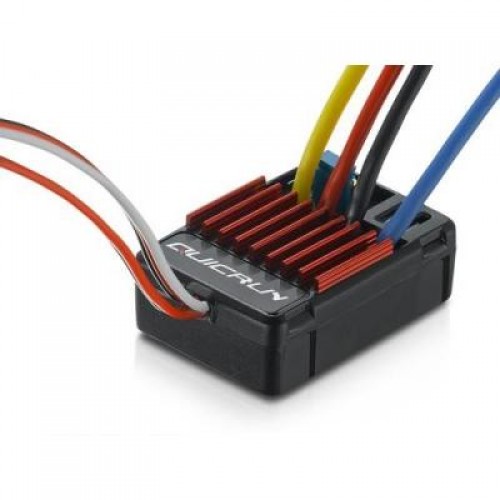

[HOBBYWING] QuicRun 1625 1/16 25A 자동차용 브러쉬드 방수 변속기

HobbyWing QuicRun 1/16 Brushed 25A Electronic Speed Controller ESC 1625

Feature:

• For: 1/18&1/16: Touring Car, Buggy, Monster, Truggy
• Water-proof and dust-proof, suitable for all-weather condition races.
• Small size with built-in capacitor module.
• Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
• Great current endurance capability.
• Great built-in BEC output capacity.
• Automatic throttle range calibration, easy to use.
• Easy to set the ESC parameters with jumpers.
• Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.

Specification:

• Model: Wp-1625-BRUSHED
• Fwd. Cont. / Peak Current: 25A /100A
• Rev. Cont. / Peak Current: 25A /100A
• Voltage Range: 2-3S Lipo or 5-9 NiMH
• Cars Applicable: 1/18 &1/16: Touring Car, Buggy, Monster, Truggy
• Motor Limit:
• 2S Lipo or 6 NiMH
• 280、370 or 380 Size Motor RPM<30000 @7.2V
• 3S Lipo or 9 NiMH
• 280、370 or 380 Size Motor RPM<20000 @7.2V
• 4S Lipo or 12 NiMH
• Not Available
• Resistance: Fwd 0.003Ω, Rev 0.003Ω
• BEC Output: 1A/5V (Linear Mode)
• PWM Frequency: 1KHz
• Dimension / Weight: 34*24*14 / 23.5g
• Cooling Fan: Without cooling fan
• Running Modes: Forward/Reverse/Brake

Include:

• HobbyWing QuicRun 1/16 Brushed 25A Electronic Speed Controller ESC 1625 (1 Set)
• Manual (1 pc)

메뉴얼
