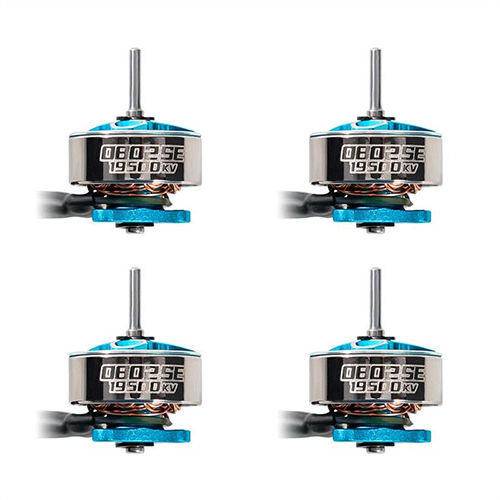

BETAFPV 0802SE 19500KV 모터 (4pcs)

BETAFPV 0802SE Brushless 19500KV Motor (4pcs)

- Meteor65 Pro용 순정모터입니다.

구성

모터 4개

관련 볼트 1세트

0802SE Brushless Motors is a lightweight of only 1.8g/pc for 1S whoop drones.

It ensures excellent performance of power and thrust and makes the perfect dynamic balance, providing flexibility and longer flying time for drones.

Bullet Point

• 0802SE 19500KV/23000KV Brushless Motors (2022 version) come with a completely new look. The whole motors are silver in the air, looking very bright.

• 0802SE Motor makes the perfect dynamic balance, which gives the drone more flexibility and longer flying time.

With its lightweight of 1.8g/pc, it is ideal for the weight-sensitive 65mm brushless whoop drone.

• 19500KV and 23000KV options greatly meet the pilots' needs for different flying purposes.

The 23000KV motors which provide more punch on the throttle with higher KV value are suitable for indoor FPV racing, making aggressive flying come true.

• Lead wire is soldered to the PCB, allowing you to repair it easier once disconnected.

Specification

Item: 0802SE 19500KV brushless motor

Weight: 1.83g/pc (19500KV)

KV: 19500KV

Color: Ice Blue

Shaft length: 5mm

Shaft diameter: 1mm

Hole distance: 6.6mm

Motor Mount Holes: M1.4

Input Voltage: 1S

Cables: 35mm long, 30AWG cables

Dimensions: 10.5*10.5*13.6mm, 10.5*10.5*13.8mm(2022 version)

Bearings: Brass Bushings

19500KV or 23000KV Motors

Choose 0802SE 19500KV or 23000KV motors. The 0802SE 19500KV motors have a better performance in efficiency and flying endurance.

With higher RPM (revolutions per minute), the 0802SE 23000KV requires less throttle for the stronger thrust that has a faster response time,

improving the speed of the whoop drone, suitable for aggressive indoor FPV racing.

For pilots who fly 65/75mm whoop drones with 19500KV motors, it is a good choice to upgrade motors to 23000KV.

Recommended Parts

Propellers: 31mm 3-blade, 31mm 4-blade, 35mm 3-blade, 40mm 2-blade

Frame: Meteor65 frame, Meteor65 Pro frame, Meteor75 frame

FC: BETAFPV F4 1S 5A Brushless FC

Screws: Meteor Series Motor Fixing Screws Pack (40PCS)

Battery: 1S Battery

Package

4 * BETAFPV 0802SE Brushless Motors (19500KV or 23000KV)

1 * Pack of M1.4*3 Screws
