상품상세설명

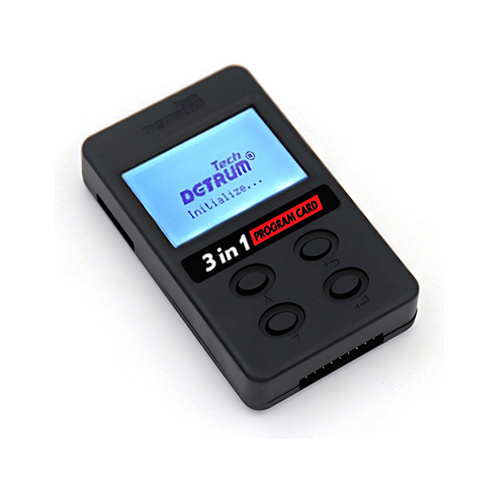

DetrumTech 3In1 ProgramCard -ESC,Stablilizer,Battery - 프로그램카드

- 변속기, 자이로, 배터리 전압 체크 3가지 기능이 있는 프로그램 카드입니다.

- 지원 제품

 자이로 - DetrumTech Istone-All V2 Stabilizer With ABS System

 변속기 - Dynam 스카이 로드 변속기 (추후 입고예정)

 배터리 - 일반적인 리튬폴리머 배터리 전압체크 가능

3-in-1 Program Card

Features

- Connect with the ESC to set its programmable items. It is applicable for Skylord Advanced series brushless aircraft ESCs, Volcano series brushless car ESCs, etc.

- It can be used to adjust the stabilizer parameters. It is applicable for ISTONE-AII, MSR66A, etc.

- Work as a voltmeter to measure the voltage of Li-Po (2S~8S) battery pack.

- Directly get power from the peripherals, no need to provide power source independently.

- It can automatically identify the connected peripherals. It is very simple to use.

Specifications

Size (L*W*H): 52.0mm*85.6mm*17.6mm

Weight: 45g

Input Voltage: 5V~12V

Interface: Micro USB, ESC interface, Li-Po battery interface


Setting the ESC with the Program Card

 Setting the Stabilizer with the Program Card

Measuring the Battery Voltage with the Program Card
