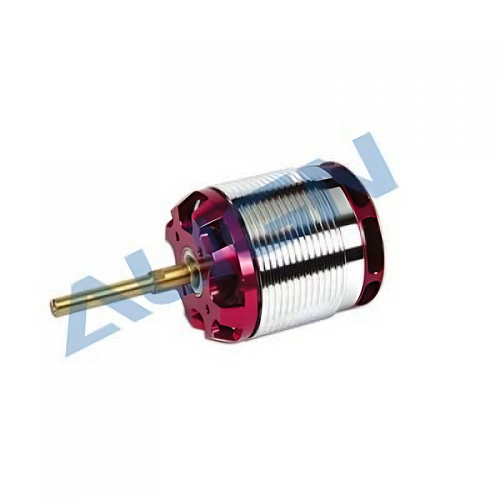

[ALIGN] 950MX Brushless Motor(440KV/4540) - for E1/AG

AlignRC RCM-BL950MX Brushless Motor(440KV/4540)

ALIGN E1/E1-AG 대형 헬기용 Brushless Motor

산업용 모터로 적합하게끔 티타늄 코팅(TiN) 메인 샤프트가 적용되어 있습니다.

●900MX features high efficiency, superior power, excellent torque, low current draw and low temperature; it's capable of maintaining consistent torque and head speed.
●900MX's high efficiency and low current draw, the standard equipment electronic speed controller are sufficient to experience the power of this motor, and extend battery longevity.
●900MX motor armature had a special balance adjust to improve the serious shaking problem.
●900MX is adopted air blast in its end bell, creating powerful airflow to dissipate heat. Incorporate motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
●Maintenance free, high torque, high efficiency, stable and quiet.
●High-speed ball bearings, powerful magnetic outrunner rotor.
●Suitable for ALIGN E1.
　

<제품사양>

●Input Voltage:12S
●Max Continuous Current: 125A/280A(2sec)
●Max Output Power:6000W/12800W(2sec)
●KV Value: 440KV
●Stator Arms: 12
●Magnet Poles: 10
●Dimension: Spindle 6x56.7x112.5mm
●Weight: 657g

<제품구성>

●Socket screw(M4x10) x 4
●Washer(Φ4xΦ8x1) x 4
●5.5mm gilt terminal x 3
