상품상세설명

Tarot 3515-400KV BL Motor (400KV/14~16in Prop) for Drone

Tarot사의 800~1200mm Wheel base 드론용 Enduro Type Brushless Motor.

소형, 켬팩트화된 모터로서 6Cell(22.2V) 기반의 드론에 적합하며, 14in~16in Carbon/Folding Prop을 사용하시면 됩니다.

-Tarot 3515/400KV brushless motor designed for aerial photography, mapping, surveying and other long flight time application scenarios.
-Made of international standard aerospace aluminum with high precision CNC machining in Japan (precision 0.001mm)
-Each motor is inspected by strict quality standards to ensure consistency from batch to batch.

1: New semi-enclosed structure design, lightweight, high strength, fast heat dissipation, effectively prevent gravel and debris from entering the interior of the motor, with good ventilation and heat dissipation effect.
2: Use of extreme durable high-quality imported bearings, more stable rotation.
3: Fully hand-wound, each motor factory has been dynamic, static testing to ensure the consistency of the motor.
4: IP35 dustproof and waterproof protection, unique structure to provide you with better safety assurance.

- Support lithium battery section: 6S
- Propeller: 14-16 inch
- Stator diameter:35mm
- No-load current:0.5A
- Stator end thickness:15mm
- Number of stator ends:12N
- Number of motor poles:14P
- Rotational speed: 400KV±5%
- Motor outer diameter:42mm
- Shaft diameter:4mm
- Motor height:35mm
- Max. continuous current:28.4A
- Max. continuous power:630W
- Internal resistance:85mΩ
- Propeller mounting hole pitch:12mm
- Motor mounting hole distance:25mm
- Motor weight:142g

- 3515/400KV brushless motor×1
- Propeller metal mounting piece Φ2.26mm×1

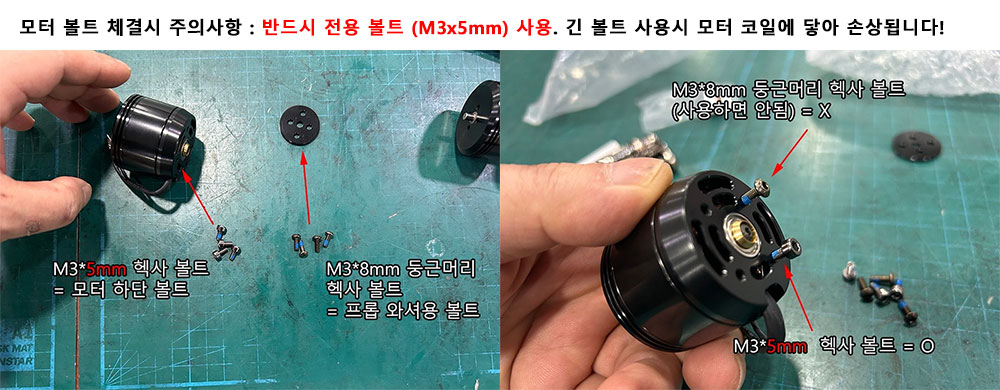

- M3*6 cup head screws×4
- M3*8 semi-round head screws×4
- PC packing box×1

<제품 이미지>
