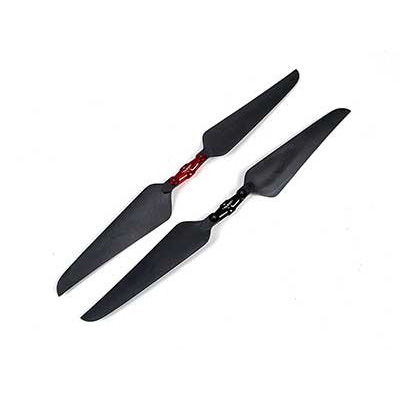

[TR] High Efficiency 18x6.5in Folding Prop Assy(CW/CCW, w/Hub)

TAROT High Efficiency 18x6.5in Folding Prop Assy'(CW/CCW, w/Hub)

타롯사의 18x6.5in 폴딩 프롭 세트.

CW/CCW 페어 구성으로서 메탈 폴딩 허브 및 테프론 링 및 고정용 헥사 볼트, 탭 볼트 일체 포함.

<Product Description>
·Tarot's new 1865 folding paddle holder
·Fully CNC machined from 6061T6 aluminium alloy
·Suitable for all types of motors with symmetrical screw hole centres of 12 mm
·Metal folding paddle holders are easy to carry and more efficient
·The 1555 folding front and back paddles was made using a mould made on Swiss MIKRON 5-axis machining centre
·Matching high-strength engineering materials
·Optimised wing structure designed to ensure good flexibility and stability
·More than 10% efficiency gain and more power reserve
·Suitable for multi-axis multi-rotor UAVs such as 4-axis, 6-axis and 8-axis

<Product Parameters>
Total length of folding paddle clip:456mm
Total weight of a single pair:67g/pair
Length of single paddle:210mm
Diameter of paddle mounting hole:3mm
Paddle root thickness:5mm
Single blade weight:28.5g/blade
Diameter of the centre hole of the metal paddle clamp:3.0mm
Thickness of metal paddle clamp mount:3.95mm

<Associated Product No.>

Tarot 15inch Metal Foldable Propeller Holder/B TL100B15
Tarot 15inch Metal Foldable Propeller Holder/R TL100B16
Tarot Propeller/18 inch High Efficiency CW/CCW Propeller Set/1865 TL100D20
Tarot 18X6.5J Martin Foldable Carbon Fiber props(CW and CCW)/4 Pieces TL3028

<Product Specifications>
Metal folding paddle clip top holder(3.0g)(61×12×3mm)×2
Metal folding paddle clip lower holder(4.8g)(61×18×5mm)×2
1865 Folding CW paddle/single(28.5g)(210mm)×2
1865 Folding CCW paddle/single(28.5g)(210mm)×2
Teflon gasket(M3×8×0.5)(0.05g)×8
Shaft sleeve screws(0.6g)(M3×11.3mm)×4
Half-round head screws(0.4g)(M3×8mm)×4
