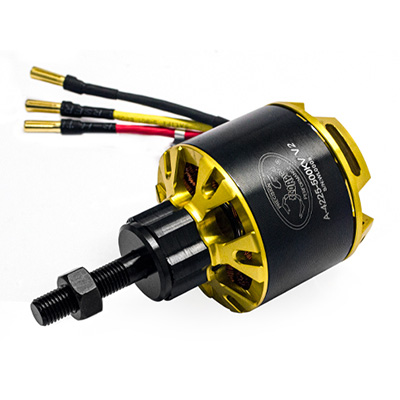

[Scorpion] A-4225-500kv V2 (6¼¿¿ë) »óǰ¹øÈ£: QQ96213
¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë)
ÆÇ¸Å°¡°Ý : 293,000¿ø ȸ¿ø°¡ÀԽà ÇÒÀÎ, Àû¸³ ÇýÅÃ
Àû¸³±Ý :2,930¿ø
Á¦Á¶»ç :Scorpion
Á¦Ç°ÄÚµå :A-4225-500kv
»óǰ¹øÈ£ :QQ96213
Àç°í :¹°·ùâ°í Àç°í ¡Ä°³
±¸¸Å¼ö·® : ǰÀýµÈ »óǰÀÔ´Ï´Ù
ÃÑ ±Ý¾× :
¹è¼Ûºñ - 5¸¸¿ø ÀÌ»ó ±¸¸Å½Ã ¹«·á¹è¼Û
°í°´¼¾ÅÍ - Á¦Ç° ¹®ÀÇ ¹× ±¸¸Å ¼­·ù Ãâ·Â
°áÁ¦¹æ½Ä - ÈĺҰáÁ¦ ¦¢ PSYS ¦¢ ³×À̹öÆäÀÌ ¦¢ ÆäÀÌÄÚ
Ä«µå¹«ÀÌÀÚ - Ä«µå»çº° ÃÖ´ë 12°³¿ù ¹«ÀÌÀÚ


(0)

The Scorpion A - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and enamel coated copper wire windings rated above 200C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!




¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 1¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 2¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 3¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 4¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 5¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 6¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 7

Full Dimension

¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 8

Specifications

Motor Kv500 RPM / Volt
Weight (Motor only)350g ( 12.34oz)
Weight (including mount + Prop mount accessories)398g (14.039 oz)
Motor Body Dimensions50.7mm x 50.9mm (+12.0mm prop spacer) (1.99" x 2.00" (+ 0.47") )
External Shaft Diameter8
Continuous Current100A
Continuous Power2220 Watts
Peak Current*140A
Peak Power*3108 Watts
Max Rated Lipo Cell**6s
Stator Diameter42.0 mm (1.65in)
Stator Thickness25 mm (0.98in)
No. of Stator Arms12
Magnet Poles14
Motor Wind5T Delta
Motor Wire23-Strand x 0.29mm
No-Load Current (IO/15V)1.54 Amps
Motor Internal Resistance (phase-phase)14 m§Ù
Motor Inductance (phase-phase) @ 1khz10µH
*Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling*
**Higher Cell Count possible with smaller prop usage**

Performance Charts

¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 9¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 10¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 11¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 12

Use Case Applications

¾Ë¾¾¹ðÅ© A-4225-500kv [Scorpion] A-4225-500kv V2 (6¼¿¿ë) 13

Included in the Box

1 x Scorpion A-4225 BLDC Motor
1 x A-42 Cross Mount (stock)
4 x M4 Cross Mount Mounting Bolts
3 x Female 4mm Connectors
3 x Heat Shrink
12 x 4x16x1 Thrust Shims
1 x M8 Nut + Prop Washer
3 x Scorpion Stickers

Weight including packaging

530g
