AOS Supernova 2207 1570KV 모터 (1pcs)

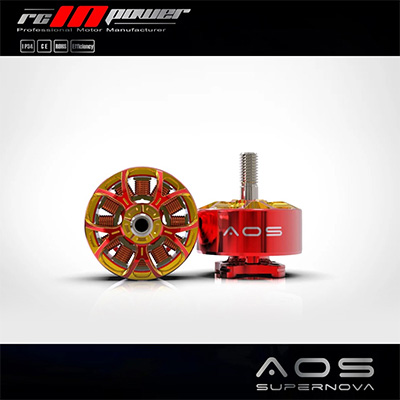

AOS Supernova 2207 1570KV Brushless Motor

- Chris Rosser가 설계하고 MCK가 테스트하였습니다.

- 동급에서 가장 좋은 효율을 보여주는 모터입니다.

- 그램당 파워 비율이 아주 높습니다.

- 멋진 외관은 덤이지요..^^

구성

모터 1개

Meet the AOS Supernova 2207, the motor that redefines power and efficiency for your 5” FPV drone.

This new 1570KV variant is optimized for 8S battery voltage, offering unparalleled top-end thrust and power while maintaining exceptional efficiency.

Recommended Setup

To fully enjoy the precise low-throttle control and explosive top-end power of the AOS Supernova 2207, Chris Rosser suggests using throttle expo in Betaflight:

• Throttle MID: 0

• Throttle EXPO: 0.20 to start

• Adjust EXPO to increase precision at low throttle or to sharpen throttle response.

Features

• KV Rating: 1570KV, perfect for 8S battery voltage.

• Thrust and Torque: Delivers 37.6% more thrust and 52.9% more torque compared to standard 5” motors on 6S.

• Efficiency: 3.5% higher efficiency, tested on HQ 5×4.5×3 V1S props.

• Response Time: 60.9% faster response, ensuring sharp and precise control.

Specifications

• KV : 1570

• Configuration : 12N14P

• Shaft Diameter : 4mm (Hollow)

• Motor Dimensions : Φ27.6*19.5mm

• Weight : 31g (2cm Wire)

• Idle Current @ 10V : 1.1A

• Battery Compatibility : 8S LiPo

• Max Continuous Power (5S) : 1414W

• Internal Resistance : 65mΩ

• Max Current (5S) : 44.2A

• Max Efficiency Current : (4-9A) > 86%

Package Includes

1 x AOS Supernova 2207 1570KV Motor

Screws and hardware for installation
