[TR] T3115 900KV Motor for 10in Prop(Enduro Type/6S/LC)

[Tarot] T3115-900KV Motor for 10in Prop(Enduro Type/6S/LC)

타롯사의 10in 프롭을 사용하는 대형 레이싱 드론 Mark4-10 드론용 T3115-900KV 브러시리스 모터.

입력 전압은 6S (22.2V)를 사용합니다.

색상 : Black

<Product Description>

·The new long range 3115 brushless motor developed and designed by Tarot;
·Adopt 52H level magnets and high speed imported NSK-5x11x5mm bearings;
·Continuing to inherit the Tarot brushless motor's superior characteristics of long life,high efficiency,low power consumption,low noise,and stable control;
·The mounting holes are Φ19mm, which is compatible with the mainstream rack mounting of FPV drone in the current market;
·Recommended with Tarot 1050 3-blade propeller.


<Product Parameters>

- Motor KV value:900KV
- Motor size:Φ37.1*32mm
- Magnet:12N14P
- Motor shaft:5mm
- Silicone wire:16#AWG 300mm
- Weight:113g
- Maximum pulling force:4080g
- Support lithium battery knots:6S
- Recommended propeller:9-10 inch
- Peak current(6S):60-80A
- Maximum power(6S):1592W

<Product List>

- 3115 brushless motor/900KV×1
- Cup head screw(M3*8mm)×4
- Aluminum lock nut/M5×1

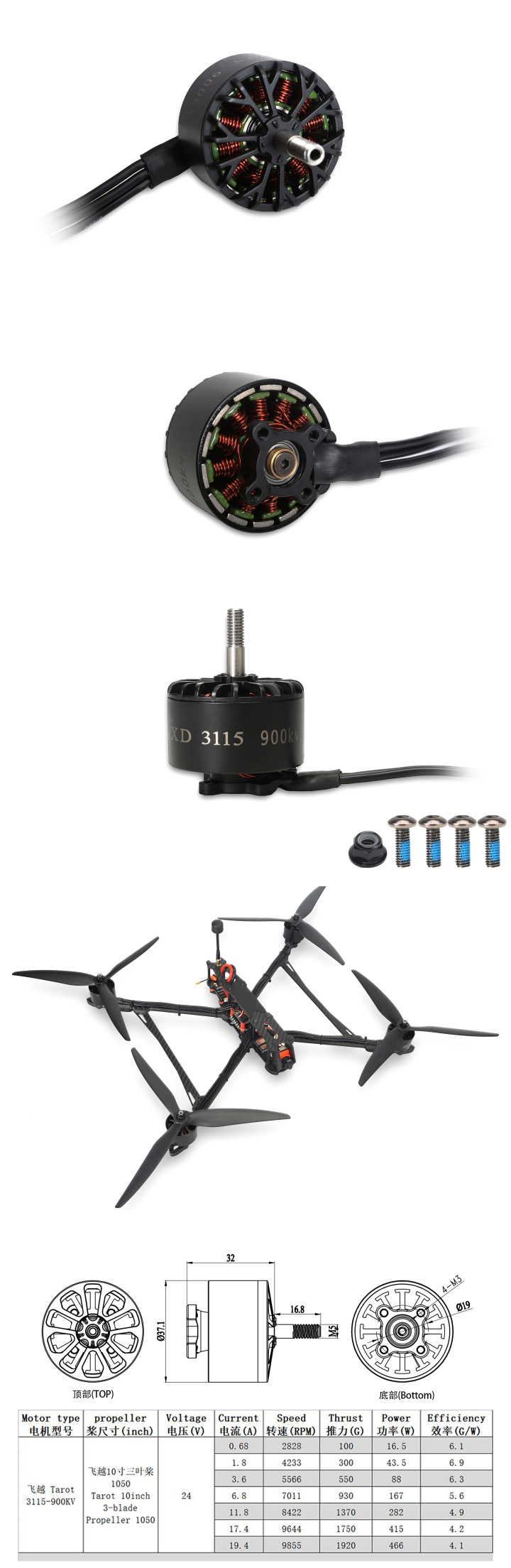

<제품 이미지>
