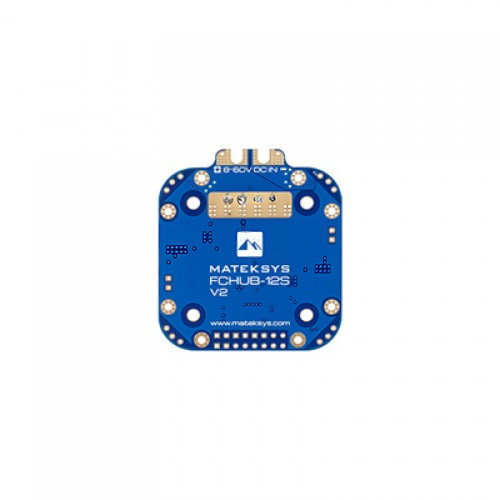

마텍 X-CLASS PDB FCHUB-12S

Matek XCLASS PDB FCHUB-12S



- XClass Quad용으로 특별히 설계되었습니다.

- 8~60V (2~12S LiPo) 사용 가능합니다.

- 5V 5A, 12V 4A BEC가 내장되어있습니다.

- 최대 440A 범위의 고정밀 전류 감지 기능을 지원합니다.




구성

FCHUB-12S 1개

SH1.0_8핀 케이블 5cm 1개

SH1.0_8핀 커넥터 2개

PDB

Input voltage range: 8~60V (3~12S LiPo)

4x70A cont, 4x110A burst

4x ESC power /signal/ telemetry pads

Current Senor: 440A,  3.3V ADC,  Scale 75

2x LED indicators for 5V, 12V

1K:20K voltage divider built-in

JST-SH 8pin connector

“V” pad: 12V or VBat voltage selectable

G: GND

Curr: current sensor signal

TLM: for BlHeli32 ESC telemetry

S1~S4: ESC signal

BEC 5V output (5V pad)

Voltage: 5.1 +/- 0.1VDC

Continuous current 5 Amps,  Max.6A

Short-circuit tolerant (2 seconds)

Overcurrent protection & self-recovery

BEC 12V output (12V pad)

Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)

Continuous current 4 Amps,  Max.5A

Input voltage<12V,  Output voltage = Input voltage

Probably there is audible sound in the BEC12V inductor when Input voltage<12V

Short-circuit tolerant (2 seconds)

Overcurrent protection & self-recovery

Switchable 12V output (12VSW pad)

12V ON/OFF switchable via PINIO(high/low level)

support constant 2A

can be use for powering VTX,LED etc.

BEC 3.3V output

Linear Regulator

Continuous current: 500mA

Physical

Mounting: 30.5 x 30.5mm, Φ3mm

Dimensions: 55 x 50 x 6 mm

Weight: 21g

Including

1x FCHUB-12S V2

1x SH1.0_8pin cable 5cm,  2x SH1.0_8pin connectors



마텍 홈페이지에 가시면 세팅에 관한 많은 자료를 찾아보실 수 있습니다.

https://www.mateksys.com/

Quick Start Guide
