TBS CROSSFIRE SIXTY9

- 크로스파이어 나노 수신기와 영상송신보드가 합쳐진 제품입니다.

- 영상송신보드는 최대 1W출력입니다.

- 6셀 직결이 가능합니다.



송신 모듈이 최신 펌웨어로 되어 있어야 바인딩이 정상적으로 됩니다.

구성

1x TBS 크로스파이어 Sixty9

1x TBS Crossfire Immortal-T 안테나

1x u.FL - SMA 마운트(VTx용)

1x 30x30 케이스

1x 20x20 케이스

1x 옵션 주석 실드(저잡음 허용 오차 추가용)

1x JST-SH x 9 커넥터

What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

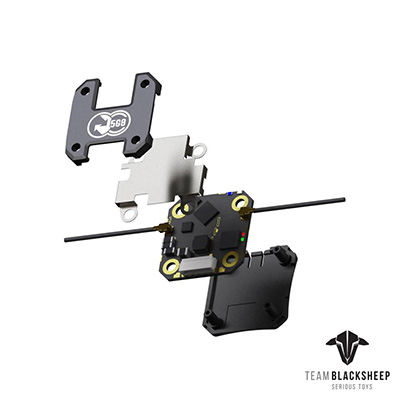

Introducing the TBS Crossfire Sixty9, a VTx and RC receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20x20, but we do incldue adapters for your 30x30 stacks, and a plastic case for mounting the unit to your frame, without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD)

FEATURES

Integrated video transmitter control with long range and (team-)race functions

Dedicated low-noise power supply for receiver and video transmitter

Sleek 20x20 mounting form factor

Plug&play connection and solder pads connectivity

3 different mounting flavors, RF tin shields, and other accessories included

High power analog adjustable video transmitter (up to 1W with perfect cooling)

5V regulator bulti-in, takes up to 6S

SPECIFICATIONS

Weight: 4.1g (board only)

Antenna ports: 1x video transmitter, 1x R/C receiver

Size: 24mm x 24mm

Requires: Firmware V4.62 and above

CRSF V3 ready

Input voltage: 8-25V (2-6S)

INCLUDES

1x TBS Crossfire Sixty9

1x TBS Crossfire Immortal-T antenna

1x u.FL to SMA mount (for VTx)

1x 30x30 heatsink / case

1x 20x20 heatsink / case

1x optional tin-shield (for added low-noise tolerance)

1x JST-SH x 9 connector
