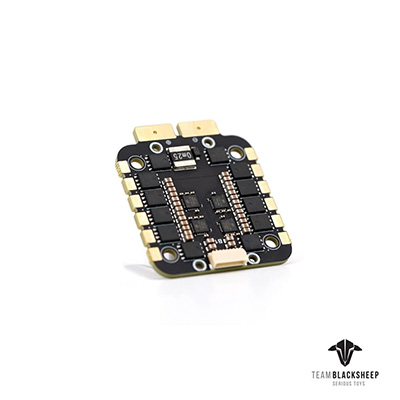

TBS Lucid 8S 4in1 ESC

- 3-8S¼¿±îÁö ´ëÀÀÇÕ´Ï´Ù.

- ¿¬¼Ó60A, ÃÖ´ë 85AÀÇ Ãâ·ÂÀÔ´Ï´Ù.

- ¶Ù¾î³­ ¿­ ¹æÃâÀ» ÀÚ¶ûÇÕ´Ï´Ù.

- AM32 ¼ÒÇÁÆ®¿þ¾î¸¦ »ç¿ëÇÕ´Ï´Ù.

- Àü¿ëÀÇ °í¸±¶ó¸¶¿îÆ®°¡ Àû¿ëµÇ¾ú½À´Ï´Ù.

±âº» ¸¶¿îÆ®»çÀÌÁî´Â 39.5 x 16, 30.5 x 30.5 ÀÔ´Ï´Ù.

20x20 ¸¶¿îÆ®¸¦ »ç¿ëÇϽ÷Á¸é

¿É¼Ç¿¡¼­ ¸¶¿îÆ® »çÀÌÁ ¼±ÅÃÇØÁÖ¼¼¿ä.

±¸¼º

ÇÏ´Ü »çÁø ÂüÁ¶

The TBS Lucid flight stack is the latest in product engineering at TBS. Built for racing and freestyle applications and

developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

Featuring an 8 layer high current density board with twice the market average on-board capacitance, the ESC is built

to withstand the harshest punishment of everyday FPV flying while delivering buttery-smooth flight characteristics paired

with face-melting acceleration. By focusing on thermal dissipation from the ground up, the flight stack achieves excellent

power to weight density without the need of heavy heat sinks.

A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.

Specifications

ESC software: AlkaMotors32 (AM32)

ESC target: tbslu8s4in1

Rated current: 60A x 4, 60 seconds

Peak Current: 85A x 4, 10 seconds

Propellers: Up to 11", over 7" requires good airflow

Input: 3-8S Lipo

Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry

ESC current port: Yes

BEC:  No

Size: 50mm*42mm

Mounting: Gorilla-mount (39.5 x 16.0mm) & 30.5x30.5 mm

or brackets for 20x20 mm,

Weight: 17.58g, 22g incl. brackets

Gorilla mount

Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication

of having to run mounting bolts through the middle of the ESC. We call this the "Gorilla" mount.

Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames.

Backwards compatibility is provided through mounting brackets.

Includes

TBS Lucid 8S 4in1 ESC

4x 2.2x4mm standoffs

Aluminum top bracket for 20x20 FCs

XT60 power connector

560uF 8S Capacitor

4x M2x12 screws

4x M2x14 screws (for 30x30 mount)
