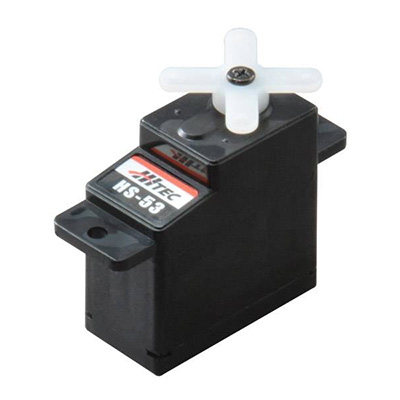

[Hitec] 하이텍 HS-53 마이크로급 서보
![[알씨뱅크] [Hitec] 하이텍 HS-53 마이크로급 서보](/shop/data/goods/1683094655581l0.jpg)
판매가격 : 22,000원
상품번호 : QQ13581
※문의시 상품번호를 알려주세요
※문의시 상품번호를 알려주세요
상품상세설명
BEST SERVO 인 HS-55의 염가형 HS-53 탄생
Speed, Torque 는 기존의 hs-55 보다 높지만, 더욱 낮아진 가격으로 찾아 갑니다.
Product Description
The HS-53 is our economical, feather servo designed to compete head to head with the influx of low cost servos while still maintaining Hitec’s renowned quality. Designed with a durable nylon gear train and an efficient three-pole cored motor, this light-weight servo is a terrific fit for small power planes and gliders. Priced right, it is sure to become a universal favorite!
Features
- Durable Nylon Gears
- Three-Pole Cored Motor
- Feather-Weight
- Economically Priced
HS-53 Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.16 ~ 0.13 |
| Maximum Torque Range oz. / in. | 16.7 ~ 20.8 |
| Maximum Torque Range kg. / cm. | 1.2 ~ 1.5 |
| Current Draw at Idle | 10 mAh |
| No Load Operating Current Draw | 125 mAh |
| Stall Current Draw | 550 mAh |
| Dead Band Width | 5 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.12 x 0.46 x 0.95 |
| Dimensions (Metric) | 28.6 x 11.6 x 24.1 |
| Weight (Ounces) | 0.28 |
| Weight (Gram) | 8.0 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | Cored Metal Brush |
| Gear Material | Nylon |
| Bearing Type | None |
| Output Shaft (type / Ømm) | Feather 15 / 8 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 28 / 20 |
