상품번호 : QQ23186
※문의시 상품번호를 알려주세요
상품상세설명
| MOTOR | | 1EA |
|---|
| Aluminum Washer(AT41Series V2.0) | φ6.1 x 16 x 2.5 mm | 1EA |
|---|
| Prop Adapter | φ22 x 30mm-M6 | 1EA |
|---|
| Prop Adapter(5/8 Collet-Style) | φ11 x 36mm 1 | 1EA |
|---|
| Washer(Non-Slip Design) | 20 x 8.1 x2.7mm | 1EA |
|---|
| Screw | M3 x 6mm / Cup-Head Set | 4EA |
|---|
| Screw | M3 x 4mm / Hexagon Set | 1EA |
|---|
| Mount | M3 x 6mm | 4EA |
|---|
| Motor mount(Cross Style) | 25 x 19 x 3mm | 1EA |
|---|
| Motor Base | φ20 x 10mm | 1EA |
|---|
| M6 Nut | | 1EA |
|---|
| Thin Nut(Stainless) | M8 x 1 x 4mm | 2EA |
|---|
SPECIFICATIONS
| AT2820 Long Shaft | KV880 | KV1050 | KV1250 |
|---|
| Motor Dimensions | φ35.2 x 63.5mm | φ35.2 x 63.5mm | φ35.2 x 63.5mm |
|---|
| Lead | Enameled Wire 100mm | Enameled Wire 100mm | Enameled Wire 100mm |
|---|
| Shaft Diameter | IN : 5mm OUT : 5mm | IN : 5mm OUT : 5mm | IN : 5mm OUT : 5mm |
|---|
| Idle Current(10V) | 1.6A | 2.0A | 2.7A |
|---|
| Max.Power(180s) | 700W | 900W | 1000W |
|---|
| Weight(Incl.Cable) | 139g | 139g | 141g |
|---|
| Internal Resistance | 39㏁ | 28㏁ | 16㏁ |
|---|
| Configuration | 12N14P | 12N14P | 12N14P |
|---|
| Rated Voltage(LiPo) | 3-4S | 3-4S | 3-4S |
|---|
| Peak Current(180s) | 45A | 65A | 70A |
|---|
| Recommendation | / | / | / |
|---|

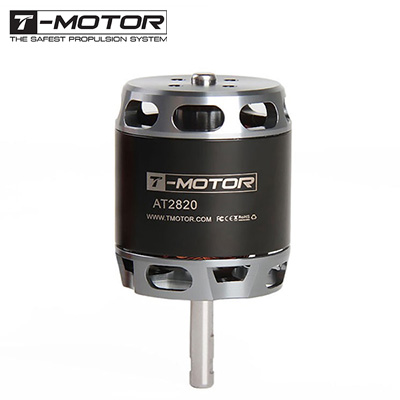

![[알씨뱅크] [T-MOTOR] AT2820 1250KV 브러쉬리스 모터 - 롱샤프트 타입](/shop/data/goods/1575260442000_l.jpg)
![[알씨뱅크] [T-MOTOR] AT2820 1250KV 브러쉬리스 모터 - 롱샤프트 타입 1](/shop/lib/meditor/../../data/editor/01efc06a3e2b8645.jpg)
![[알씨뱅크] [T-MOTOR] AT2820 1250KV 브러쉬리스 모터 - 롱샤프트 타입 2](/shop/lib/meditor/../../data/editor/7e85db69d5af166a.jpg)
![[알씨뱅크] [T-MOTOR] AT2820 1250KV 브러쉬리스 모터 - 롱샤프트 타입 3](/shop/lib/meditor/../../data/editor/9d809d3c38704b3d.jpg)
