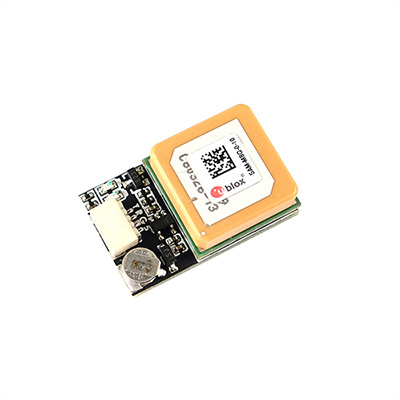

[Matek] 마텍 GPS MODULE SAM-M8Q

Features

• 72-channel M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C

• On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking

• Features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity

• Build-in embedded GNSS patch antenna, low power consumption

• The 15 x 15 mm patch antenna provides the best compromise between the performance of a Right Hand Circular Polarized

  (RHCP) antenna and a small size to be integrated in any design.

• Max navigation update rate

Single GNSS up to 18 Hz


2 Concurrent GNSS(GPS & GLONASS) up to 10 Hz

• Horizontal position accuracy(GPS & GLONASS) 2.5 m CEP

• Velocity accuracy 0.05m/s

• Cold start 26 s
  Aided cold starts: 2 s

Hot start 1 s

• Sensitivity
  Tracking & Navigation: –165 dBm
  Reacquisition: –158 dBm


Cold start: –146 dBm
Hot start: –155 dBm

• Input voltage range: 4~5.5V

• Power consumption: 40mA

• Uart (Tx,Rx) interface

• Battery for HOT module start

• Power LED(Red) & Time pulse LED(Blue)

• Baudrate 9600 default

• Dimensions: L26 x W16 x H7.5 mm

• Weight: 7 gram

• Can be easy mounted in your case by double sided tape

• Supported by INAV/Betaflight/Ardupilot, ect.

Tips

• GPS, GLONASS, SBAS, QZSS are enabled by default

• u-blox M8Q series has no external flash memory

• Blue PPS LED blinking(1Hz) means 3D fixed

• update rate 1Hz & baudrate 9600 default

• Baud 9600~115200 supported by INAV

• update rate 5Hz with INAV UBLOX Protocol

• update rate 10Hz with INAV UBLOX7 Protocol

• BF doesn’t support GPS position hold and RTH, GPS Rescue mode is supported by BF3.5 or last.

• The scratches on ceramic antenna are the result of tuning the antenna by ublox. Placing small nicks in the centre of the long edges, or corners, brings them into spec.
