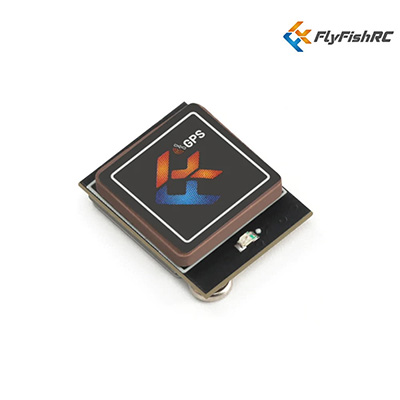

FlyFishRC M10 Mini GPS Module

- FlyFishRC에서 출시한 미니 GPS입니다.

Description

FlyfishRC-M10 Mini is a GPS that is small in size, fast in speed, and easy to use.

It features an 12*12mm RHCP ceramic patch antenna that provides excellent reception and highly stable connectivity.

The UBLOX 10th generation chip allows for skipping minor changes in altitude, improving stability.

Spec

GPS Module Protocol: Ublox/NMEA

Speed Accuracy: 0.05m/s

Cold Start: 30 s

Hot Start: 1-3 s

Tracking Sensitivity: -167dBm

Input Voltage: 3.3~5.5V (typical value 5V)

Maximum Altitude: 50000m

Maximum Speed: 500m/s

Maximum Acceleration: ≤4G

Baud Rate: 4800-115200bps (recommended 115200bps)

GPS Module Size: L16.2x W12.3x H4.9mm

GPS Ceramic Size: 12*12mm

Weight: 2.4g (±0.5g)

Pin Definition

VCC: System main power supply, voltage is 5V, current is about 40mA during operation

GND: Ground

RXD: Data input

TXD: Data output

Includes

1x FlyFishRC M10 Mini GPS Module

1x Battery strap GPS Mount

4x #30 Silicone Cable

1x GPS Manual
