[TR] MARK4-7 Racing Drone Super Combo(6S/7in)

[Tarot] MARK4-7 Racing Drone Super Combo(6S/7in)

타롯사의 최신 7in 프롭을 사용하는 대형 레이싱 드론 Mark4-7 Super Combo Package!

Heavy Lift 사양으로서 카본 본체 및 XD2807-1300KV 모터, 7x4.5 프롭, JHEMCU FC/45A 4in1 ESC System, 그리고 JINJIEAN B19 액션캠이 모두 포함된 패키지 사양입니다.

배터리는 2,800~3,400mAh 4S1P~6S1P 팩을 사용하시면 됩니다.(변속기와 모터는 4S~6S까지 사용 가능!)

Product Description:
·Tarot's new 7-inch FPV racing drone;
·Made of high quality 3K twill carbon fiber board, strong and durable;
·Exquisite appearance design, is the preferred rack for FPV racing drone;
·Paired with the recommended configuration, it can achieve an idle endurance of up to 35 minutes.

Product Features:
1.H-frame structure design, shorten the length of the arm, reduce the weight and increase the strength of the arm;
2.Large center plate mounting space, arm mounting option to the bottom, more installation space can be obtained;
3.Front-end FPV lens mounting position size adjustment standard 19mm * 19mm;
4.The middle of the Flight Controller&ESC mounting position and the rear of the Transmission mounting position reserved for 30.5mm * 30.5mm and 20mm * 20mm mounting holes, providing more options;
5.Standard with vibration damping silicone, which can reduce the pressure of vibration to the flight control to a greater extent, so as to achieve smooth flight.

Product Parameters:
Frame type: H type
Maximum supported props: 7inch
Wheelbase：295mm
Dimension: 193mm*223mm
Weight: 121g
Bottom plate thickness: 2.5mm
Top plate thickness: 2.5mm
Arm thickness: 5mm
Camera mounting pitch: 19mm
Installation hole distance of the transmission: compatible with 30.5mm/20mm
Flight control installation hole distance: compatible with 30.5mm/20mm
Flight control: RF/KISS/F3/F4/F7

<제품 이미지>

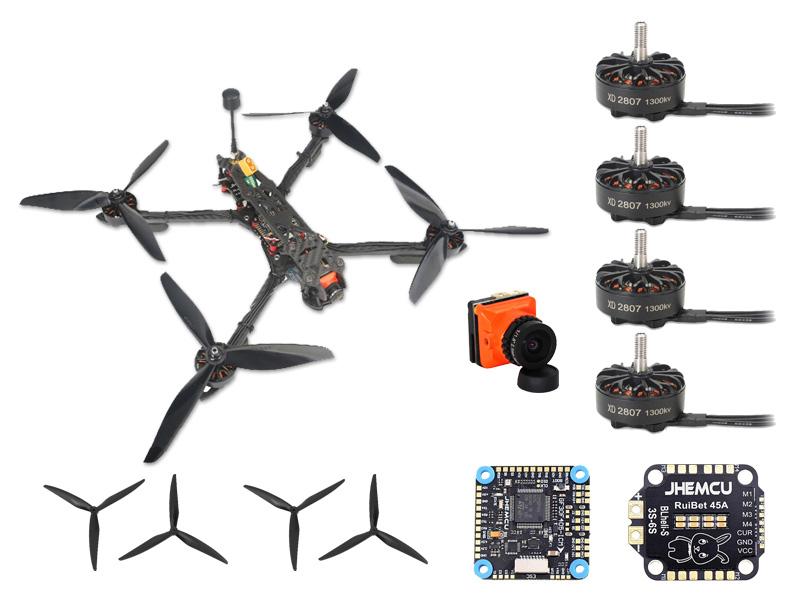

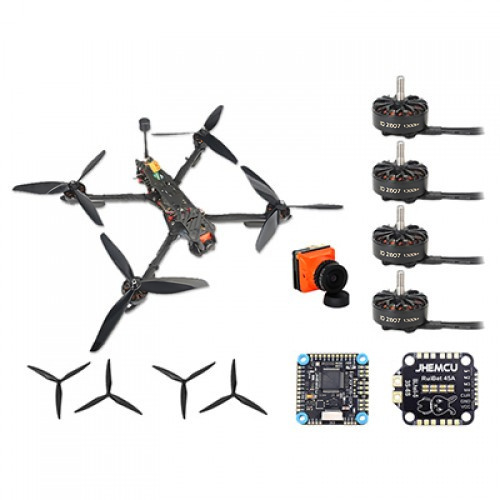

1. MK4-7 기체 및 전용 T2807-1300KV 모터(TL1617) 4개 및 High Speed 7x4.5 프롭(TL1601/02) 2Set(CW/CCW 각 2조) 기본 포함!

2. JHEMCU GF30F405-ICM Flight Controller 기본 포함!

3. JHEMCU RUIBET 45/50A 3~6S DHOT600 BLHeli_S 4in1 통합 변속기 세트 기본 포함!

(주의 : JHEMCU RUIBET 45/50A ESC는 60/65A ESC와 형상이 동일하며 내부 FET의 개수만 차이가 있습니다.)

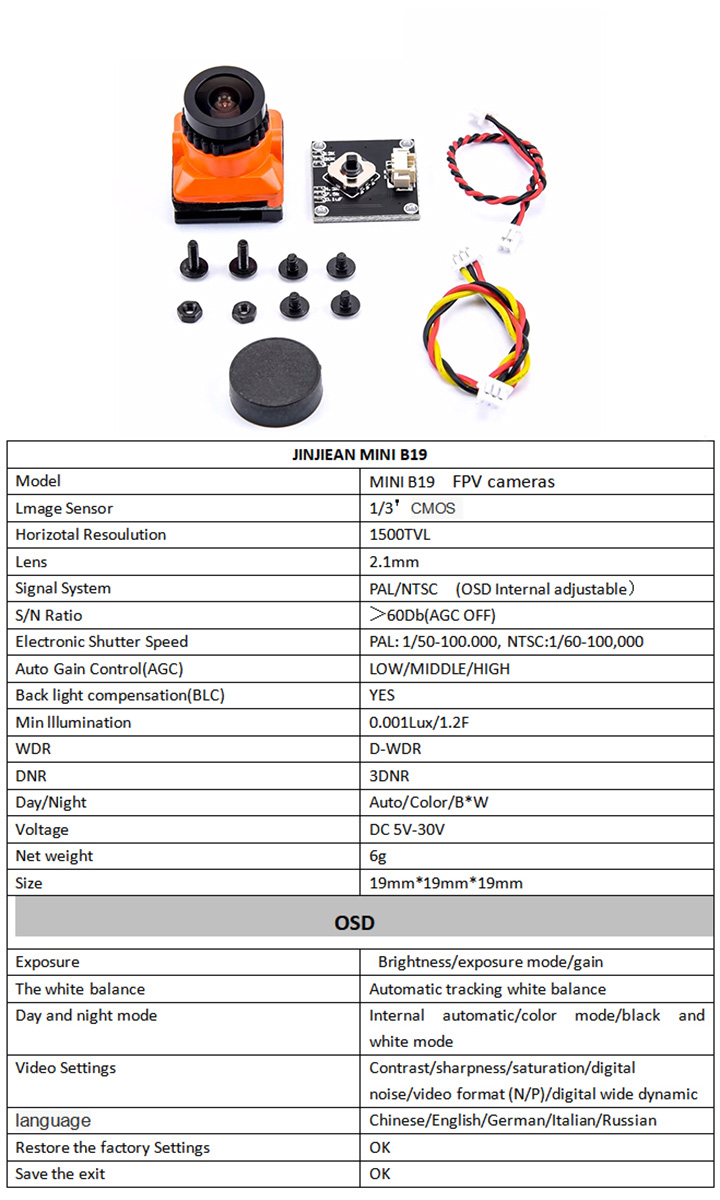

4. Tarot사의 1500TVL FPV 카메라 포함!(OSD 내장)
