[TR] MT1104-4000KV 초소형 브러쉬리스 모터 정방향+역방향 (120~150급 드론)

[TR] MT1104-4000KV Micro Motor for 120~150 Racing(CW/CCW)

타롯사의 수퍼 마이크로 120~150급 레이싱 쿼드용 브러시리스 모터.

정/역 프롭(녹색) 1Set 포함

Tarot MT1104-4000K brushless motor suitable for 120/130 and other multi-axis machine through the high-end configuration, the proposed four-axis flight control weight of 180 g (single pull up to 120 grams).

MT1104 brushless motor extremely low center of gravity, using 0.20mm ultra-thin high-efficiency silicon steel (primary propeller shaft folder structure) so that it can get the best concentricity guaranteed.

A highly efficient bulk active pad designed to achieve lower operating temperature means higher productivity.

MT2204 brushless motor with excellent balancing performance, base mounting holes motor 9MM, compatible with mainstream rack-mount on the market today, retain the appearance and consistency of conventional motor, high floating coil protection.

<Product parameters>

- Number of battery sections support: 2~3S
- Installation paddle diameter: 5MM
- Propeller: two 3-inch blade turbine TL150S1 / TL150S2
- Stator diameter: 11MM
- Stator end thickness: 4.0
- Stator end: 9
- Motor poles: 12
- Speed: 4000KV ± 5%
- Outside motor diameter: 14MM
- Axial Diameter: 1.5MM
- Motor height: 17.5MM
- Motor Weight: 5.3G


<Specifications>

- MT1104 brushless motor (Φ14 × 12.5mm) × 1
- M2 × 6MM round head sleeve screws × 2
-Within M2 × 4MM cup head Hexagon Screws × 2
- Two 3-inch blade turbine / couple

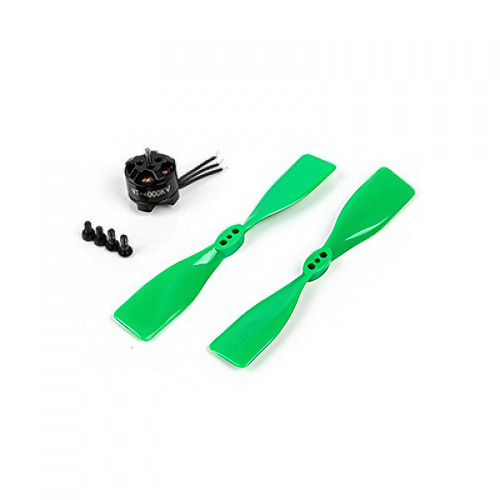

<제품 이미지>

프롭은 정피치, 역피치 각 1개씩 포함되어 있습니다.(색상은 사진과는 달리 녹색으로 공급됩니다.)
