[JHEMCU] GF30F405-ICM/OSD Flight Controller

[JHEMCU] GF30F405-ICM Flight Controller

JHEMCU사의 GF30F405-ICM FC Set.

- MCU: STM32F405RGT6
- Power supply: 3-8S (11V-36V)
- Signal protocol: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600
- Sensor: ICM-42688-P
- Size: 36 * 36mm (30.5mm mounting hole, diameter 4MM)
- Firmware version: Betaflight JHEF405pro/INAV_ 6.1.0_ JHEMCUF405
- Black box: 16MB
- Barometer: SPL06
- OSD: Support
- DJI VTX: With reserved interfaces, supports
- USB: TYPE-C interface
- IIC: Support
- UART: 4-way, UART1, 3, 4, 6, where UART3 is the receiver
- BEC: BEC 5V/3A and 10V/2A
- Receiver: SBUS, IBUS, DSM2/X, TBS, CRSF, etc
- Support for WS2812 programmable LED
- Support for buzzers
- Built in voltage sensor, Charged current detection port
- Weight: 8.7 grams

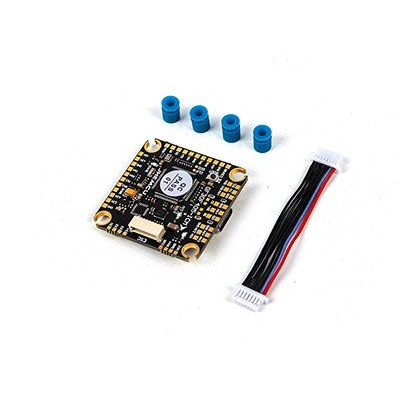

- GF30F405-ICM * 1
- 8P plug cable * 1
- M3 shock absorber ball * 4

<제품 이미지>
