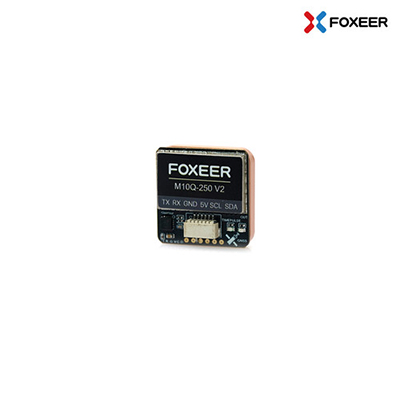

Foxeer M10Q 250 V2 GPS
- 폭시어의 GPS입니다.
- 홈포인트 기준 반경 1.5m의 정밀함을 자랑합니다.
- 사이즈 25 x 25x 8mm
구성
M10Q GPS 1개
실리콘 와이어 1개
![[알씨뱅크] 폭시어 M10Q 250 V2 GPS(25mm) 1](/shop/data/editor/fb163d054965ce04.jpg)
| Chip | M10(10th Generation Chip) |
| Frequency | GPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1 |
| Input Voltage | 5V |
| Antenna | Ceramic Antenna |
| Channel | 72 |
| Battery | Bilid-in |
| Compass | IST8310 |
| Compass Orientation | Plug facing direction of flight and obviously antenna up, BF: CW 180 flip |
| Baud Rate | 115200bps |
| Protocol | Dual NMEA/UBLOX |
| Output Frequency | 1Hz-10Hz,10Hz default |
| Speed Accuracy | 0.05m/s |
| Horizontal Positioning Accuracy | 2D ACC1.5m(outdoor) |
| Receiver Sensitivity | Trace -166dBm; Capture -160dBm |
| Dynamic Characteristics | Height 50000m; Speed 500m/s; Acceleration 4G |
| Operating Temperature | -40C-+85C |
| Storage temperature | -40C-+105C |
| Weight | 12g |
| Size | 25*25*8mm |
![[알씨뱅크] 폭시어 M10Q 250 V2 GPS(25mm)](/shop/data/goods/1783563062322l0.jpg)
