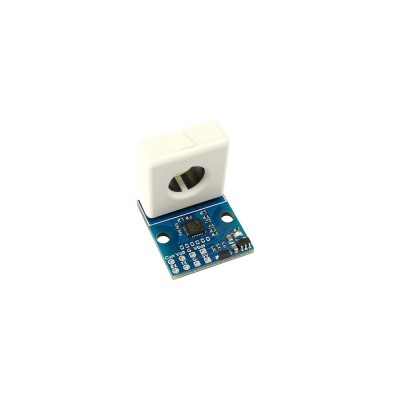

[Matek] 마텍 Hall Current Sensor 150A (HCS-150A)

- 상품설명 준비중입니다.

구성

하단 사진 참조

Specifications

Hall effect current sensor

No voltage drop and heat on current sensor components

Offset and Sensitivity are calibrated in factory

Continuous current rating: 0~150A DC

Sensitivity: 20mV/A,  INAV/BF scale = 200,  ArduPilot BATT_AMP_PERVLT = 50

VBAT voltage sense: 0~69V,  INAV scale = 2100,  BF scale = 210, ArduPilot BATT_VOLT_MULT = 21.0

Power Consumption: 17mA

Voltage offset error at zero current : +-10mV

Curr output voltage error: 5%

Operating Temperatures: -30~80 °C

23 * 20* 23mm, 7g

step file HCS-150A_step.zip

Soldering pads

Vbat: for voltage sense, support 0~69V IN

Volt: = 1/21 Vbat, 0~3.3V out

Curr: Current signal, 0~3.3V out

5V: power supply for HCS-150A board, support 4~13V IN, 17mA

G: GND

TX/RX: for firmware update and configure (to be supported)

Tips : mount Hall sensor far from iron and magnetic material
