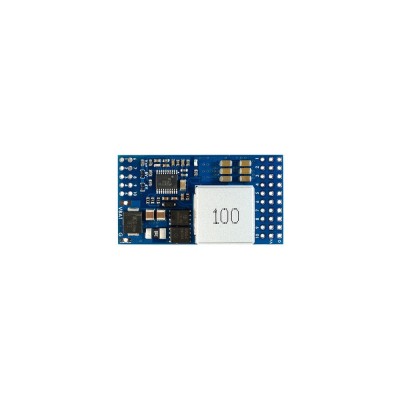

[Matek] 마텍 서보 PDB 12셀 12A (SVPDB-12S)

구성

SVPDB-12S 1개

Specifications

9V to 55V Operating Input Range

Vx for servos,  5V, 6V, 8V Adj. Default is 5V.

Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%

Supports continuous output current of up to 12A,  peak current of 20A.

Standby current: 5~10mA

No protection for reversed input polarity

Thermal Shutdown

Output Short-circuit tolerant (2 seconds)

Overcurrent protection & self-recovery

Dropout voltage: 2V  (Input>=10V is required for stable 8V output)

Pins distance: 2.54mm

Size & Weight: 50 x 27 x 8mm, 18g

Packing: 1x SVPDB-12S,  Dupont 2.54mm pins shipped unsoldered

Applications

Flight controllers without dedicated BEC for servos

Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane
