[Hitec] 하이텍 HS-40 나노급 서보
HS-40 ECONOMY NANO

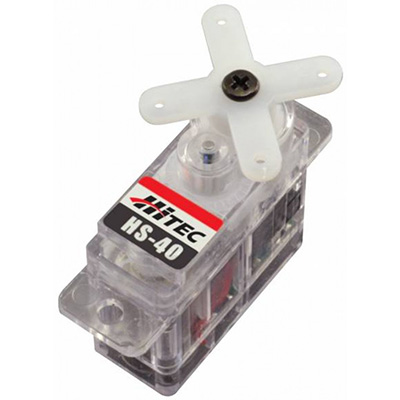

![[알씨뱅크] [Hitec] 하이텍 HS-40 나노급 서보](/shop/data/goods/1488781354936l0.jpg)
판매가격 : 21,450원
상품번호 : QQ13671
※문의시 상품번호를 알려주세요
※문의시 상품번호를 알려주세요
상품상세설명
Product Description
Our research department and engineers work tirelessly at developing economical servo technology that outperforms the competition and the new HS-40 nano analog servo delivers just that. With a three-pole cored motor and resilient nylon gears, this affordable servo is a dream come true for micro aircraft, sailplane and helicopter pilots. Slightly larger than the popular HS-35HD with an operating range of 4.8 to 6.0 volts, the HS-40 is a solid performer that is easy on your wallet!
Features
- Nylon Gears
- Three-Pole Motor
- 4.8 & 6.0V Operation
- Economically Priced
HS-40 Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.12 ~ 0.10 |
| Maximum Torque Range oz. / in. | 8.4 ~ 10.5 |
| Maximum Torque Range kg. / cm. | 0.6 ~ 0.75 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 60 mA |
| Stall Current Draw | 460 mA |
| Dead Band Width | 5 µs |
| Physical Specifications | |
| Dimensions (Inches) | 0.79 x 0.34 x 0.67 |
| Dimensions (Metric) | 20.0 x 8.6 x 17.0 |
| Weight (Ounces) | 0.17 |
| Weight (Gram) | 4.8 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | Cored Metal Brush |
| Gear Material | Nylon |
| Bearing Type | None |
| Output Shaft (type / Ømm) | Feather 15 / 8 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 28 / 20 |
