[Holybro] Power Module 2-12S Lipo (PM02 V3)- 픽스호크 파워모듈

Features：

PCB Current: total 120A outputs (MAX)
UBEC input voltage : 7~51v (2~12s LiPo)
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.2V and 3A max
6-pos Molex cable plugs directly to APM/Pix32's 'PM' connector
6-pos GH cable plugs directly to Pixhawk4/Pixhawk4 mini 'PM' connector

[알씨뱅크] HL15010 [Holybro] 홀리브로 픽스호크 파워모듈 2-12s LiPo (PM02 V3) 1

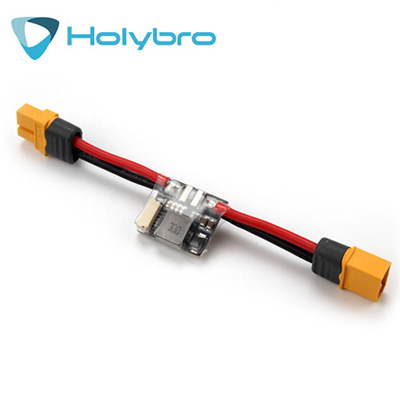

PM02 is a simple way of providing your APM and Pix32 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from up to a 12S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.

[알씨뱅크] HL15010 [Holybro] 홀리브로 픽스호크 파워모듈 2-12s LiPo (PM02 V3) 2

The Power Module is designed to power APM,Pix32, a RC receiver and APM accessories (GPS, radio). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.
The GH terminal is also compatible with both Pix32,Pixhawk4,Pixhawk4 mini and Durandal.

Package Includes：

Power Module with XT60 Connectors Board
Molex 6 Position Connector 15 cm
GH 6 Position Connector 15 cm

Manual:
Holybro Power Module(PM02 V3) Manual
