Matek POWER MODULE PM12S-3

- 세 가지 전압이 동시에 출력되는 트리플 BEC입니다.

- 하나는 5.2V/6V/8V 중에 선택할 수 있고 연속15A, 최대 25A의 전류를 출력합니다.

- 다른 하나는 5V/4A, 또 다른 하나는 12V/4A의 출력을 갖고 있습니다.

- 막강한 출력을 보여주는 BEC입니다.

- 입력전압은 12셀까지 가능합니다.(55V)

- 대형 기체에 강력 추천드립니다.

구성

하단 사진 참조

Wide 9V to 55V Operating Input Range with TVS protection

3x independent Step-Down Voltage Regulators

BEC Vx, 5.2V / 6V / 8V output options. supports typical continuous output current of up to 15A, Peak current of up to 25A.

BEC 5V (Fixed), 4A continuous

BEC 12V (Fixed), 4A continuous

1K:20K voltage divider built-in (Volt = 1/21 Input voltage)

Current sensor signal passthrough pad

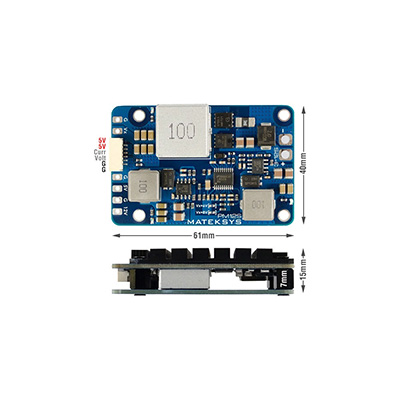

Size & Weight: 61x40x15mm, 53g

BEC Vx

Output voltage 5.25V / 6V / 8V options.

Output voltage tolerance 1.5%

Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%

Supports typical continuous output current of up to 15A, Peak current of up to 25A.

Output ripple 32mV (VIN=50V, Output 5.25V @ 15A), 43mV (VIN=50V, Output @ 5A)

Standby current: 10~20mA

Reverse Input voltage protection: No

Thermal Shutdown

Output Short-circuit tolerant (2 seconds)

Overcurrent protection & self-recovery

Tip: Input voltage >= 15V is required for continuous output current of 15A

BEC 5V

Output voltage 5.2V, tolerance 1.5%

Supports continuous output current of up to 4A, Peak current of 6A

Output ripple 20mV (VIN=24V, Output @ 5A), 50mV (VIN=50V, Output @ 5A)

Reverse Input voltage protection: No

Thermal Shutdown

Output Short-circuit tolerant (2 seconds)

Overcurrent protection & self-recovery

BEC 12V

Output voltage 12V, tolerance 1.5%

Supports continuous output current of up to 4A, Peak current of 6A

Output ripple 18mV (VIN=24V, Output @ 5A), 32mV (VIN=50V, Output @ 5A)

Reverse Input voltage protection: No

Thermal Shutdown

Output Short-circuit tolerant (2 seconds)

Overcurrent protection & self-recovery

Tip: Input voltage >= 13V is required for stable 12V output

Packing

1x PM12S-3

1x Low ESR capacitor ZLJ 63v 390uf

Tips: If the input voltage is noisy, capacitor is required to be soldered to the input pads
