구성

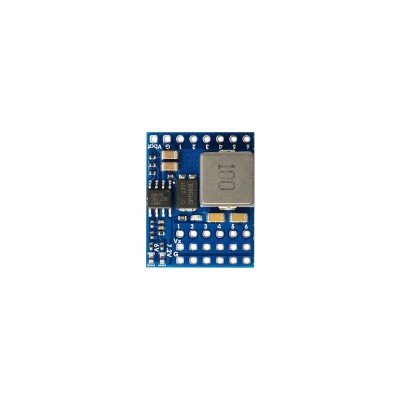

SVPDB-8S 1개

Specifications

5.5V to 36V Operating Input Range

Vx for servos,  5V, 6V, 7.2V, 8.2V Adj. Default is 5V.

4A Continuous load current, 7A Burst

Maximum Duty Cycle: 100%,   when input voltage< setting value,  Regulator output voltage = Input voltage

Output Short-circuit tolerant (3 seconds)

No protection for reversed input polarity

Pins distance: 2.54mm

Size & Weight: 26 x 21 x 5mm, 4g

Packing: 1x SVPDB-8S,  Dupont 2.54mm pins

Applications

Flight controllers without dedicated BEC for servos

Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane
