[Holybro] 픽스호크 마이크로 M10 GPS 모듈

Name: [Holybro] 픽스호크 마이크로 M10 GPS 모듈
Brand: Holybro
SKU: QQ90203
Price: 61700 KRW
Availability: InStock
Rating: 5.0 (1 reviews)

제품코드 : HL-12044

상품번호 : QQ90203

카테고리1드론/픽스호크/FPV›2드론 FC 비행 컨트롤러 모음›3픽스호크 비행 컨트롤러(Pixhawk)›4Holybro 픽스호크 4/5X/6C/6X

1픽스호크 Pixhawk›2Holybro 픽스호크 4/5X/6C/6X

더 보기 ▾

판매가격 : 61,700원

★★★★★ 5.0 · 리뷰 1건

상품번호 : QQ90203
※문의시 상품번호를 알려주세요

네이버페이 적립 : 4% + 멤버십 추가적립

재고 : 물류창고 ∞개

주문수량

선택 옵션

케이스(필수)

케이스 옵션 선택 ▼

위에서 옵션을 선택하세요.

바로구매

장바구니

카톡상담

이미지	상품명	선택

추가 옵션상품 총합계: 0원

옵션 상품을 포함하여 장바구니 담기 >

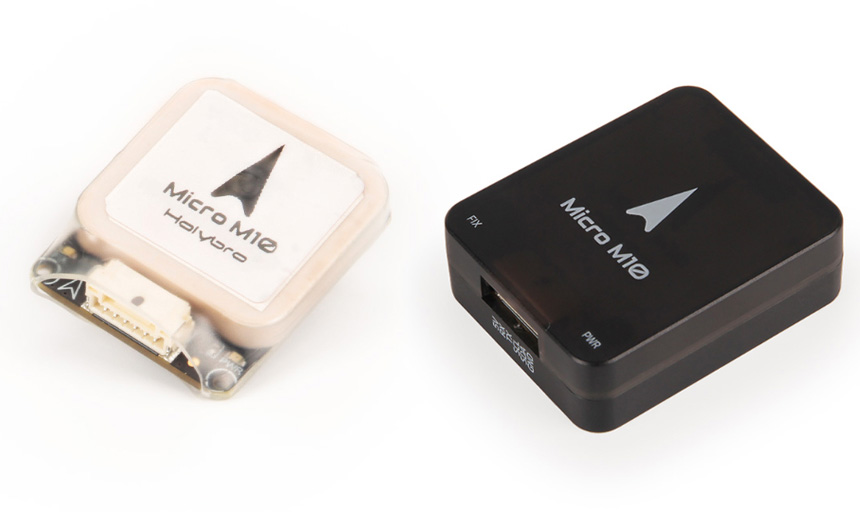

Holybro Micro M10 GPS

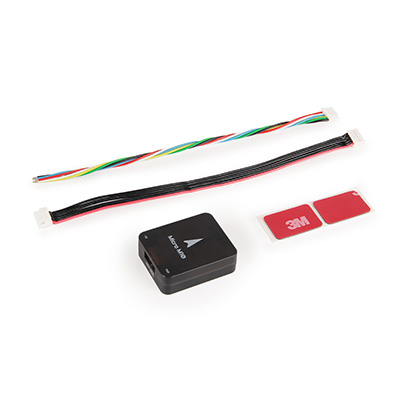

[알씨뱅크] HL-12044 [Holybro] 픽스호크 마이크로 M10 GPS 모듈 1

Overview

These Micro GPS uses multi-constellation GNSS powered by u-blox M10 or M9N, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass. The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation.

Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Specification

	Holybro Micro M10 GPS	Holybro Micro M9N GPS
GNSS Receiver	Ublox M10	Ublox M9N
Number of Concurrent GNSS	Up to 4 GNSS - BeiDou - Galileo - GLONASS - GPS - QZSS	Up to 4 GNSS - BeiDou - Galileo - GLONASS - GPS - QZSS
Frequency Band	- GPS L1 - Galileo E1 - GLONASS L1 - BeiDou B1 - SBAS L1 - QZSS L1	- GPS L1 - Galileo E1 - GLONASS L1 - BeiDou B1 - SBAS L1 - QZSS L1
Compass	IST8310	IST8310
Output Protocol	- UBX (U-blox) - NMEA	- UBX (U-blox) - NMEA
Accuracy	2.0m CEP	1.5m CEP
Nav. Update Rate	Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS)	Up to 25 Hz (4 concerrent GNSS)
GNSS Augmentation System	EGNOS, GAGAN, MSAS and WAAS QZSS: L1S	EGNOS, GAGAN, MSAS and WAAS QZSS: L1S
Default Baud Rate	115200	115200
Input Voltage	4.7-5.2V	4.7-5.2V
Port Type	JST-GH-6P	JST-GH-6P
Antenna	25 x 25 x 4 mm ceramic patch antenna
Antenna Gain	1.5dbi
Antenna LNA Gain	22dB
Power consumption	Less than 200mA @ 5V	Less than 200mA @ 5V
Operating Temperature	-40~80C	-40~80C
Dimension	- 32 x 26 x 9mm (w/o Case) - 34 x 28 x 11mm (With Case)	- 32 x 26 x 9mm (w/o Case) - 34 x 28 x 11mm (With Case)
Weight	- 14g (w/o Case) - 16g (With Case)	- 14g (w/o Case) - 16g (With Case)
Other	- LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah capacitance - Low noise 3.3V regulator	- LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah capacitance - Low noise 3.3V regulator
