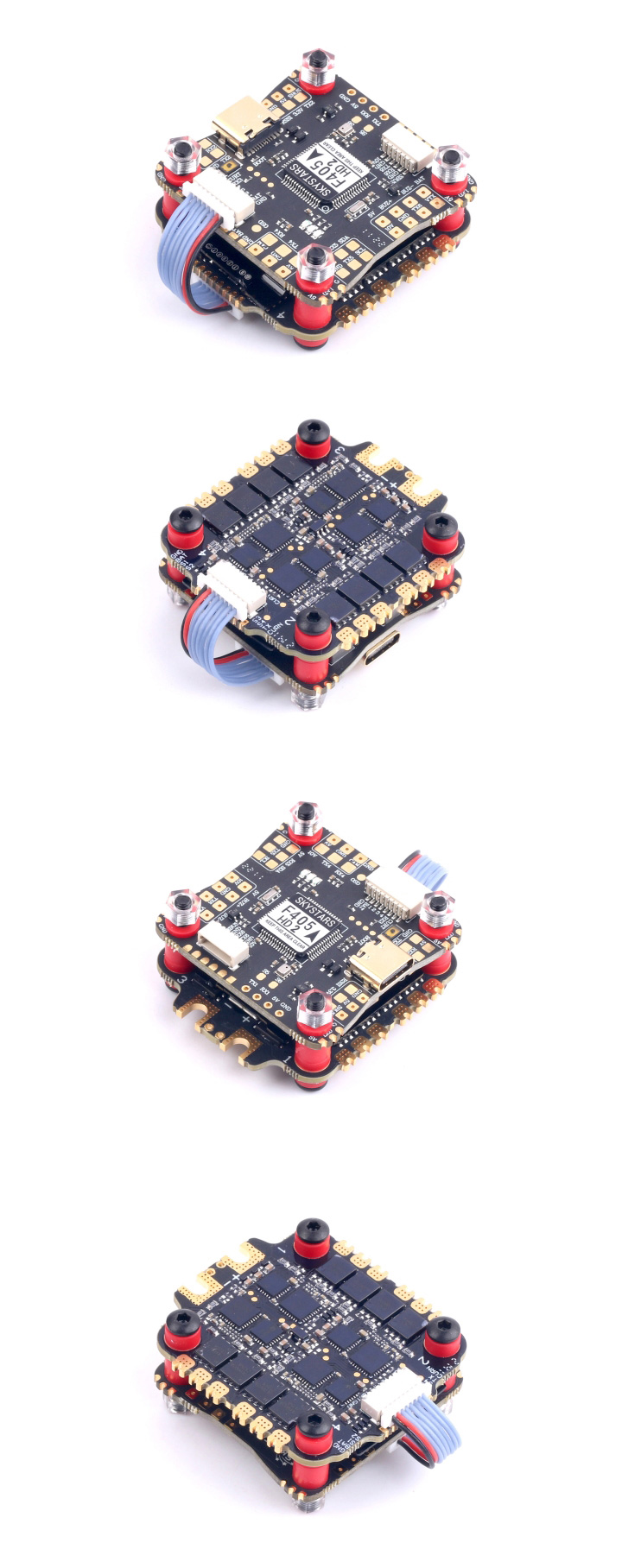

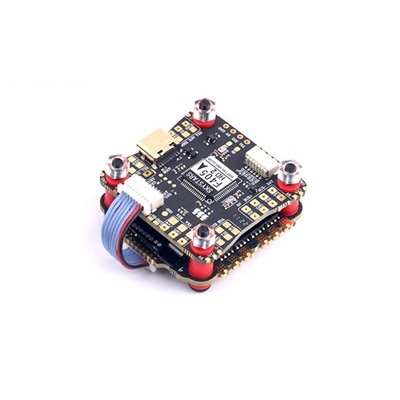

[TR] Skystars F4 FC 55A 4in1 ESC Stack 3-6S BMI270 Betaflight OSD Dshot600

Skystars F4 FC 55A 4in1 ESC Stack 3-6S BMI270 Betaflight OSD Dshot600

SkyStars Evolution사의 최신 Betaflight 기반의 변속기 통합형 F4 Flight Contoller 시스템.

- Package Included:
1 x Skystars F405 HD2 Flight Controller
1 x 55A 4 in 1 Brushless ESC

<Specification>
MCU: STM32F405
IMU: BMI270
OSD: AT7456E
Blackbox: 16MB
6X Uarts(1 2 3 4 5 6)
WS2812 led Strip: YES
Baro: YES
Beeper: YES
BEC: 5V/3A cont

<FC Firmware>
Betaflight FC Target: SKYSTARSF405
INAV FC Target:SKYSTARSF405HD

<Physical>

Mounting: 30.5*30.5mm, 4mm with Grommets 3mm
Dimensions: 36*36mm
Weight: 6g

<SKYSTARS 55A 4in1 ESC Specification>

Dimension: 41*46mm
Mounting Holes: 30.5*30.5mm/Φ3mm
Weight:13.3g
Supports 3-6S Lipo input
BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware
Current sensor: YES
BEC: NO
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-30 BLS 16.7
