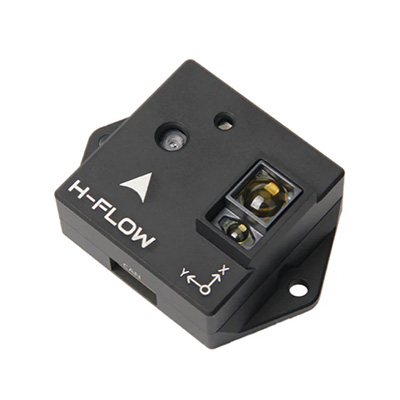

[알씨뱅크] HL-19006 [Holybro] H-Flow - Optical Flow and Distance Sensor Module 1

The Holybro H-Flow is a compact optical flow and distance sensor module that combines a PixArt PAA3905E1 optical flow sensor, a Broadcom AFBR-S50LV85D distance sensor, and an InvenSense ICM-42688-P 6-axis IMU. This all-in-one design simplifies installation, while the onboard infrared LED enhances visibility in low-light conditions.

The H-Flow features a Pixhawk-standard 4-pin CAN connector, ensuring seamless integration with Pixhawk-compatible controllers via the CAN port. Utilizing the DroneCAN protocol, it offers reliable and high-speed data transmission between the sensor and the flight controller.

Feature

Integrated Optical Flow and Rangefinder Module
PixArt Optical Flow Sensor for Accurate Motion Tracking
Broadcom ToF Sensor for Precise Distance Measurement
Infrared LED for Optical Low-Light Performance
DroneCAN Protocol

Specification

PixArt PAA3905E1 Optical Flow Sensor
- Tracks under low light conditions of >5 lux
- Effective Viewing angle up to 42°
- Wide working ranges from 80mm up to 30m
- Up to 7.4 rad/s
- 40mW IR LED built onto the board for improved low-light operation
Broadcom AFBR-S50LV85D Time-of-Flight Distance Sensor
- Integrated 850 nm laser light source
- Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels
- Typical distance sensing range up to 30m
- Operation of up to 200k Lux ambient light
- Works well on all surface conditions
- Transmitter beam of 2° x 2° to illuminate between 1 and 3 pixels
InvenSense ICM-42688-P 6-Axis IMU
STM32F412CEU6 MCU
Pixhawk Standard CAN Connector (4 Pin JST GH)
Compact Form Factor
Software-Controlled CAN Termination
Weight: 15.2g (3.5g without casing)
