[Matek] 마텍 파워 모듈 (PM12S-4A)

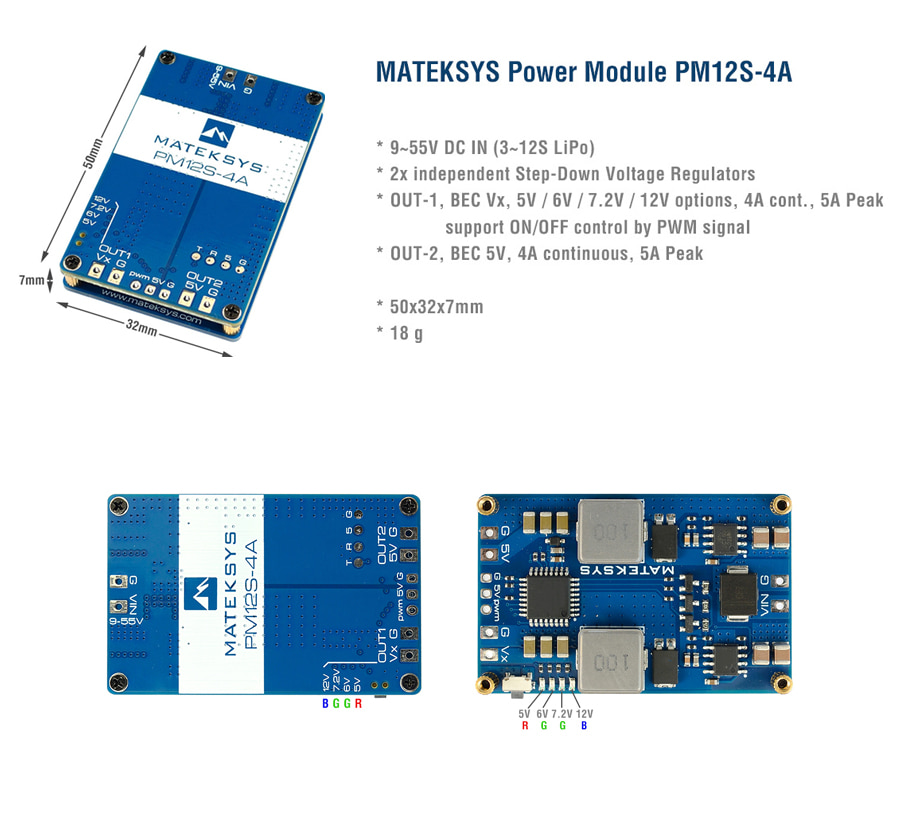

Matek POWER MODULE PM12S-4A

구성

파워 모듈 1개

Specifications

Wide 9V to 55V Operating Input Range with TVS protection

2x independent Step-Down Voltage Regulators

OUT-1 Vx,  5V / 6V / 7.2V / 12V output options(5v default).  4A continuous,  5A Peak. ON/OFF is controllable by PWM signal.

OUT-2 5V (Fixed), 4A continuous,  5A Peak

Output ripple: 20mV (VIN=50V,  Output 5v @ 4A),  40mV (VIN=50V,  Output 12V @ 4A),

Size & Weight: 50 x 32 x 7mm, 18g

Packing: 1x PM12S-4A  (no wires)

마텍 홈페이지에 가시면 세팅에 관한 많은 자료를 찾아보실 수 있습니다.

https://www.mateksys.com/

Settings
1. Set the OUT-1(Vx) voltage
Output voltage indicators, 5V Red, 6V Green, 7.2V Green, 12V Blue
Press and hold the button for 3 seconds to enter the setting of the OUT-1 voltage.
The LED on the current output voltage will blink. then press button to choose the voltage between 5V(Red), 6V(Green), 7.2V(Green), 12V (Blue) .
The value will be saved if no button action within 3 seconds.

2. PWM control
PWM Freq & Range:  50Hz-330Hz, 900-2100
OUT-1 Default output is ON if no PWM signal connected
Connect the PWM pin and GND to a spare PWM channel on the receiver or flight controller.
OUT-1 will be turned OFF when the auxiliary switch’s pwm value becomes higher than 1800. It will be turned ON when the value falls below 1200.
