구성

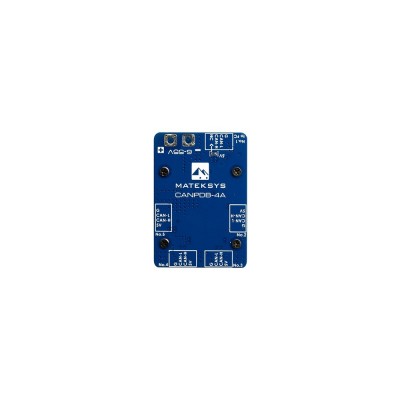

CANPDB-4A 1개

JST-GH-4P ~ JST-GH-4P 20cm 실리콘 와이어 1개

Specifications

6V to 55V Operating Input Range(2S-12S Li-xx)

5.2V output on “5V” pin/pads

Support total 4A Continuous load current. 1A for each JST-GH port

Maximum Duty Cycle: 100%,   when input voltage< setting value,  Regulator output voltage = Input voltage

No protection for reversed input polarity

Output Short-circuit tolerant (3 seconds)

5x CAN-H/CAN-L are in parallel

CAN port connector: JST-GH 4pin(SM04B-GHS-TB)

Size & Weight: 38 x 26 x 7.8mm, 12g

Packing: 1x CANPDB-4A,   1x JST-GH-4P to JST-GH-4P 20cm silicon wire
